Firestone Airide Air Spring W01-358-9200 Rubber Air Bag For Commercial Truck And Trailer

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	W01-358-9200

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-169.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Rubber:	Natural Rubber	Application:	For Truck
Firestone:	W01 358 9200	Warranty:	12 Months
Package:	Strong Carton	Gas Hole:	M22X1.5
OEM Number:	1T19F-5	Triangle:	8459/6363
Highlight:	Firestone Airide Air Spring , W01-358-9200 Firestone Airide Air Spring , Airide Springs Firestone

Firestone Airide Air Spring W01-358-9200 Rubber Air Bag For Commercial Truck And Trailer

Product Information

W01-358-9200 Technical Data

Cover Plate

Top Cover Plate Diameter : 289mm

Threaded Hole Distance of Top Cover Plate : 159mm

Air Inlet

Air Inlet : M22x1.5

Bolt / Stud

Stud : 4xM12x1.75

Bottom Piston

Bottom Piston Diameter : 300mm

Bottom Piston Height : 95 mm

FIRESTONE	W01-358-9200 , W01 358 9200
FIRESTONE	1T19F-5
FIRESTONE	1T19L-5
Triangle	8459
Triangle	6363

How to Replace and Install Air Springs
Due to the excessive load of the truck empty spring, it is easy to cause wear and tear. With the increase of use time and the influence of the environment, the rubber of the air spring will age, which will lead to cracks and leakage of the fabric layer. So we had to replace the air spring. After we have selected the air spring of the truck, we can replace it according to the following steps:

Step 1: Press the upper end stop with the thumbs of both hands, squeeze the middle part of the airbag inward with four fingers at the same time, and compress down the width of one palm.

Step 2: Place the compressed air spring between the piston and the top plate, with the bag number and label facing up.

Step 3: Fix the lower port on the annular seat on the piston, and fix the upper port on the annular seat under the top plate.

Step 4: Pressurize the air spring so that its upper and lower ports fit precisely between the top plate and the piston, the ports will snap into place with a quick snap.

Step 5: Lower the vehicle, the air spring will automatically roll down along the piston, that is, the installation is complete.

Advantages of Truck Air Springs

Air springs use the compressible properties of air to store air in a closed container. In order to realize the functions of buffering and height adjustment, the air springs are made of rubber materials.

Good shock absorption effect, better protection of goods
The air spring has a high shock absorption capacity. By increasing and releasing the internal air, the vibration can be greatly reduced, so it can better protect the transported goods, retain the value of the goods, and reduce unnecessary losses.

Can increase driving comfort and safety
Since the vibration is reduced, the suspension remains stable against the body, and the impact of the ground on the tires of the vehicle is reduced, so the vehicle is quieter, smoother and safer during driving.

Replacement and maintenance are more convenient
Compared with leaf springs, air springs do not need to be lubricated frequently. Instead, inflate the air spring to its highest height, clearing the piston, dirt and grit

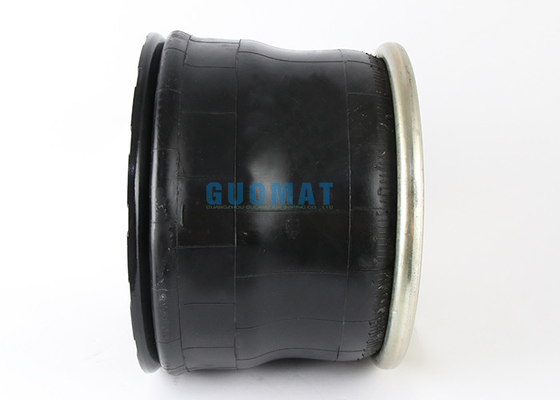

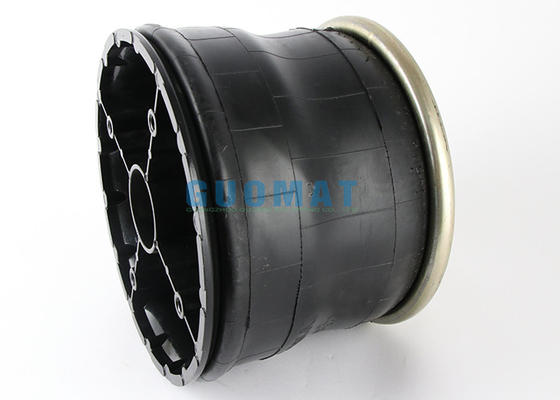

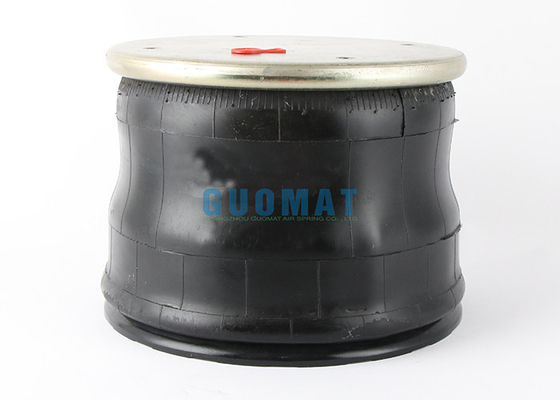

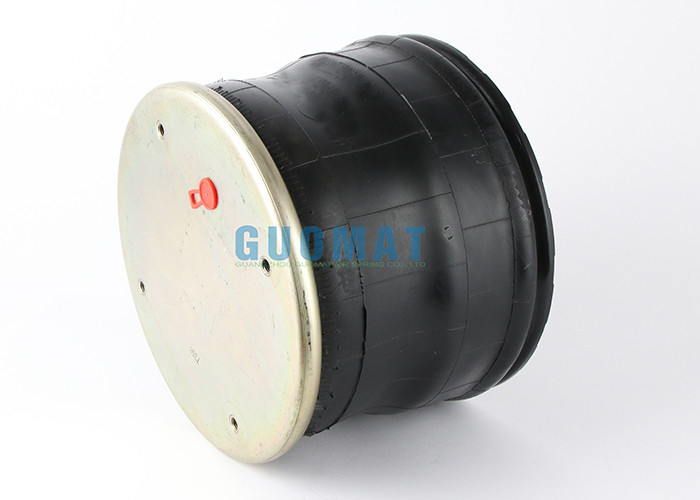

Product Picture
