| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 881MB |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $47.6-63/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Type: | Air Suspension Spring | Placement On Vehicle: | Left, Right, Front, Rear |
|---|---|---|---|
| Fitment Type: | Direct Replacement | Material: | Rubber And Steel |
| Manufacturer Warranty: | 12 Months | OEM Number: | 1R14-703 |
| Application: | For BPW | Gas Hole: | M22X1 5 |
| High Light: | Firestone Rolling Lobe Air Spring,W01-M58-8966 Rolling Lobe Air Spring,881MB Rolling Lobe Air Spring |
||
W01-M58-8966 Firestone Rolling Lobe Air Spring 881MB Contitech Air Lift Suspension For BPW
Reference Number
Firestone : W01-M58-8966
Firestone : W01M588966
Firestone : W01 M58 8966
Firestone : 8966
Firestone Part No. : w01-m58-8966
Firestone Part No. : w01m588966
Firestone Part No. : w01 m58 8966
Firestone OEM No. : w01-M58-8966
Contitech : 881 MB
Contitech : 881MB
Contitech : BPW 36
Contitech : BPW36
Goodyear : 1R14-703
Goodyear : 1R14 703
Taurus : KR 836-05
Dunlop FR : D14B36
Phoenix : 1DK 32-1
Cross Number
Granning : 15917
W01M588966 Air Suspension Spring Bag Technical Data
|
Top Cover Plate Diameter : 315mm |
|
Bottom Piston Diameter :250mm |
|
Air Inlet/Gas Hole : M22X1.5 |
|
Top Cover Plate Screw Bolt / Stud Tooth :2 pieces x M12X1.75 |
|
Top Cover Screw Center Distance : 210mm |
|
Distance Between Air Hole and Stud :95mm |
|
The Distance Between the Air Hole and the Central Axis : 25mm |
|
Rubber Bellows Natural Diameter : 360mm |
|
Bottom Piston Height : 188mm |
Truck Air Spring Installation and Replacement
After the air spring on the truck has been used for a long time, and after the natural aging of the rubber, small cracks will appear, then the air spring must be replaced.
1. Press the upper end stop with the thumbs of both hands, squeeze the middle part of the airbag inward with four fingers at the same time, and compress it down to the width of one hand.
2. Put the compressed air spring between the piston and the top plate, be sure to place the label of the capsule skin upward.
3. Secure the lower port to the annular seat on the piston and the upper port to the annular seat under the top plate. During the installation process, protective measures must be taken to support the frame and axle to prevent the body from slipping and causing personal injury.
4. Pressurize the air spring so that its upper and lower ports fit precisely between the top plate and the piston. The port should snap into place with a quick snap.
5. Lower the vehicle, the air spring will automatically roll down along the piston, and the installation is complete.
Notice
1. Clean the top plate and spring piston, check whether there are burrs or rust on the mounting metal parts (replace if necessary), and apply soap or tire mounting lubricant on the stop of the piston (grease is not available).
2. When installing, ensure that the air spring is not damaged, and the sealing surface of the matching metal parts (cover plate, piston) is not damaged, rusted and dirty.
3. Inspection of old metal pistons indicates whether there is accumulated dirt, or rust caused by surface wear and damage. If present, the piston surface should be cleaned, treated as necessary to prevent rust or replaced with new metal.

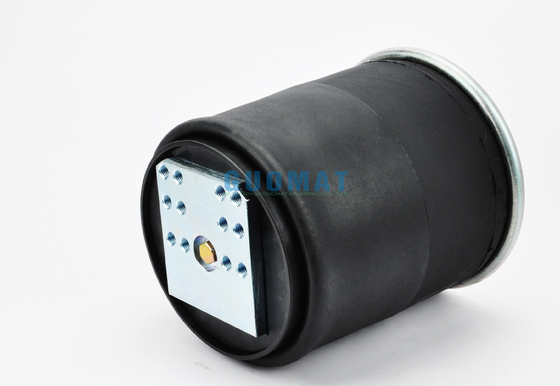

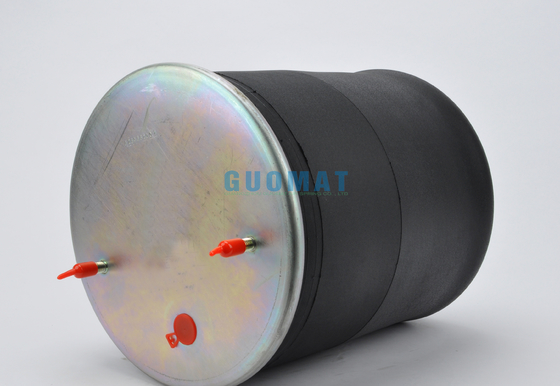

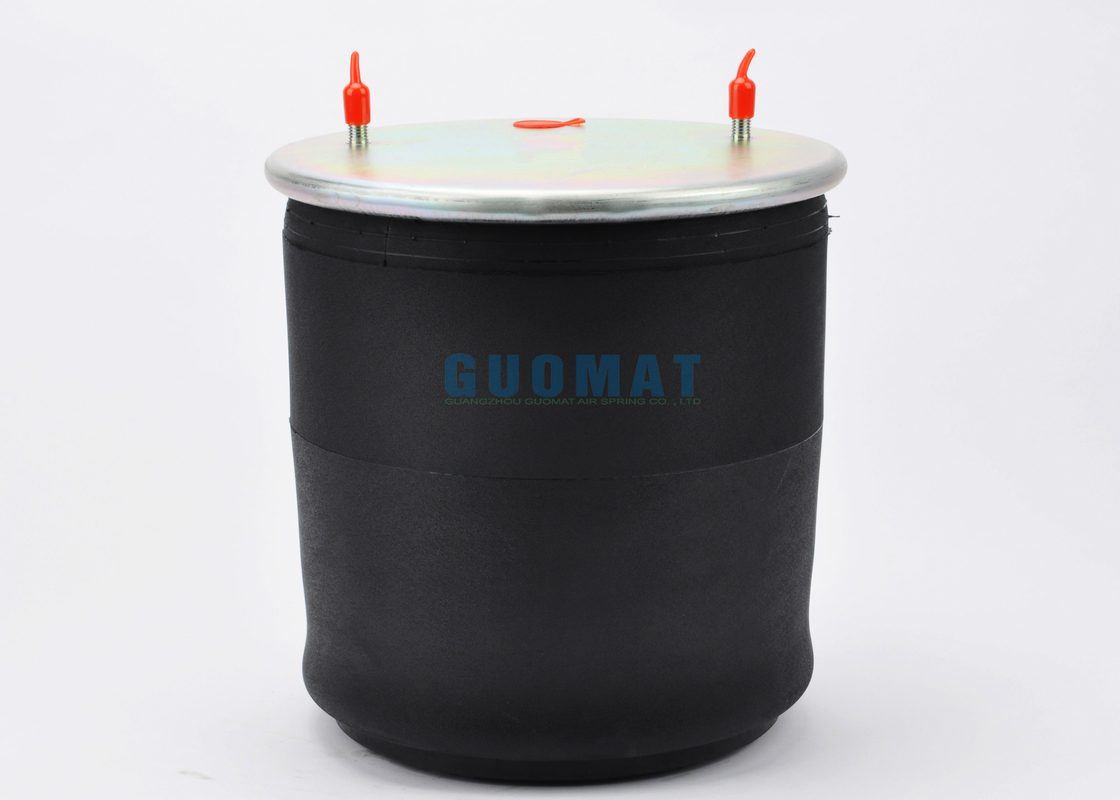

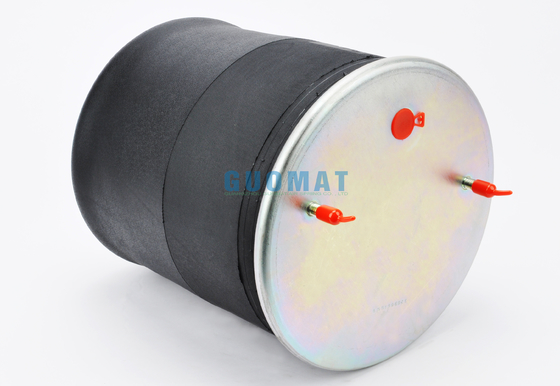

Product Pictures
