Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 1R 12-711 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $47.6-63/pc |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs/week |
Warranty: | 12 Months | Car Model: | For Truck,For Bus |
---|---|---|---|
Fitment Type: | Direct Replacement | Material: | Rubber And Steel |
OEM Number: | 836 M2 K1 | Operation: | Gas-filled |
Type Of Goods: | Air Spring/Air Bags/Air Ballon | Stud/Bolt: | M10X1.5 |
High Light: | Suspension Rubber Truck Air Springs,W01-M58-8721 Truck Air Springs,DAF 0388167 Truck Air Springs |

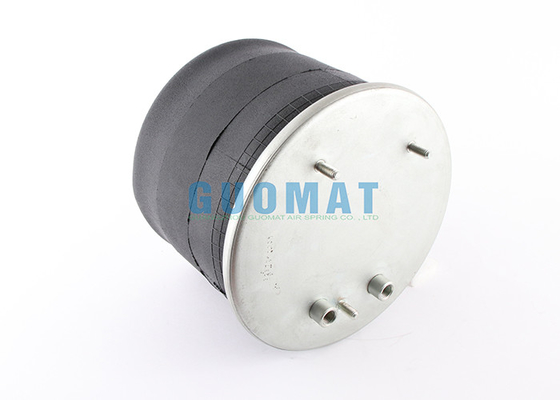

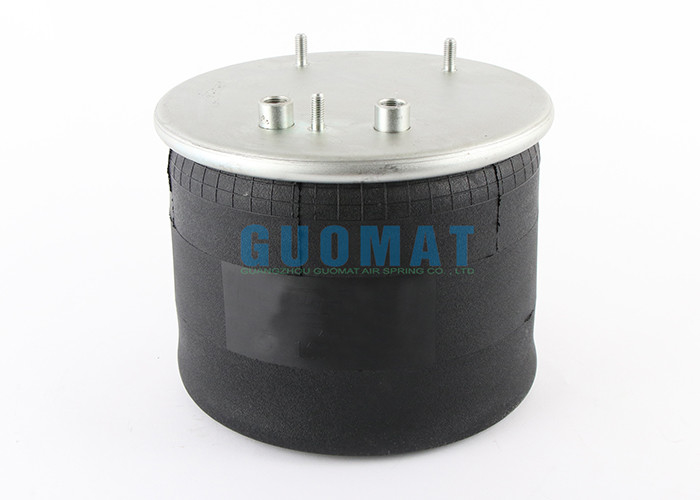

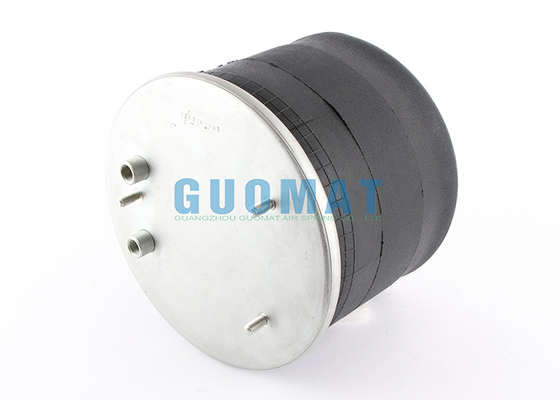

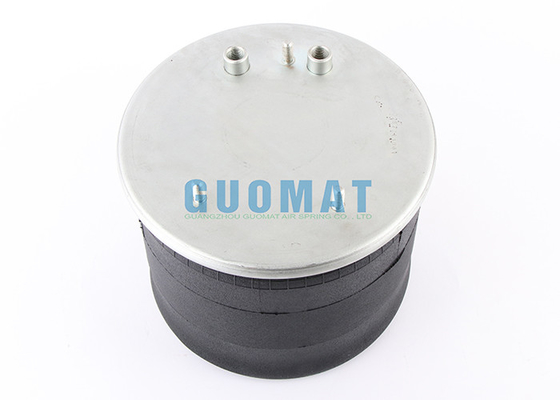

Firestone Air Suspension Rubber W01-M58-8721 With Cover Plate For Truck DAF 0388167
Product Description
Item : Rolling Lobe Air Spring
Item Number : G8721
OEM Number : W01M588721 / 836M2 K1 / 1R 12-711
Reference Numbers
Firestone |
W01-M58-8721 |
Firestone |
W01M588721 |
Firestone |
W01 M58 8721 |
Firestone |
W01-m58-8721 |
Firestone |
w01-m58-8721 |
Contitech |
836 M2K1 |
Contitech |
60210 |
Goodyear |
1R 12-711 |
Phoenix |
1DF25-13 |
Taurus |
KR 721-03 |
Dunlop FR |
D13B31 |
Airbech |
131 062 |
Granning |
15996 |
WABCO |
951 812 7110 |
Meritor |
MLF8059 |
VDL/DAF |
0388167 |
Fits the Following Vehicles
For FIRESTONE : W01-M58-8721
For FIRESTONE Air Spring Style Number : 1T17AR45
For AIRTECH : 383602K
For CONTITECH : 836M2K1
For DUNLOP : D13B31
For FAL : 1836K02, C302, V1DF2513
For GOODYEAR : D13B31, 1R12711
For PHOENIX : 1DF2513
For DAF : 388167, 388167
For MERITOR : MLF7059
Technical Data Details
Cover Plate
Top Cover Plate Diameter:272mm
Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : two piece of air inlet 1/4NPT
Screw Bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :3 pcs xM10x1.5
Distance between two closer bolt:110 mm
Distance between two faster bolt:155 mm
Distance between combined bolt and bolt:28 mm
Bumper block / Buffer block
Without Bumper Block
Bottom Piston
Bottom Piston Diameter : 225mm
Bottom Piston Height :130 mm
Piston Bolt
Piston Bolt Tooth : 1XM16
In the Middle of the Piston
Why do Trucks Use Air Suspension?
Air suspension can automatically level the suspension when loads are unevenly distributed, giving better braking and axle loads. As the height can be adjusted, the truck or trailer can 'kneel' to help with loading, or it can be raised to clear obstacles. Fragile loads suffer less damage when air suspension is used.
Can You Drive with a Damaged Air Spring?
If your air spring fails, you can drive to your local auto repair shop for a new air spring, but you can't continue to drive a vehicle with a damaged air spring every day. Because faulty air suspension components can lead to negative handling characteristics and can damage the rest of the vehicle and even lead to safety issues.
We have Other Air Springs
GUOMAT NO. |
FIRESTONE NO. |
GUOMAT NO. |
FIRESTONE NO. |
G0294 |
W01-095-0294 |
G9760 |
W01-M58-9760 |
G0500 |
W01-095-0500 |
G7548 |
W01-M58-7548 |
G0736 |
W01-M58-0736 |
G8502 |
W01-M58-8502 |
G0749 |
W01-M58-0749 |
G8472 |
W01-M58-8472 |
G8966 |
W01-M58-8966 |
G8612 |
W01-M58-8612 |
G0756 |
W01-M58-0756 |
G8786 |
W01-M58-8786 |
G0776 |
W01-M58-0776 |
G6251 |
W01-M58-6251 |
Product Pictures
