| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T 8646 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $47.6-63/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Name: | Truck Air Spring | Material: | Rubber And Steel |
|---|---|---|---|
| Warranty: | 1 Year | Car Model: | For Bus/truck/trailer |
| Sample: | Available | Operation: | Gas-filled |
| Package: | Standard Packing Or Customized | MOQ: | 10 Pieces |
| High Light: | W01-358-8646 Air Suspension Spring,1T15M-2 Air Suspension Spring |
||
Firestone W01-358-8646 Air Suspension Spring Truck Spare Parts 1T15M-2 Rolling Lobe Air Springs
Product Details
|
Part Number |
1T 8646 |
|
OEM Numbers |
W01-358-8646 |
|
1T15M-2 |
|
|
Working Tempreature |
-40°C bis +70°C |
|
Failure Testing |
≥3 millions |
|
Warranty |
12 Months |
|
Material |
Rubber + Steel |
|
Delivery Time |
About 3-8 Working Days After Received your Payment |
|
Payment |
PayPal,Western Union,L/C,T/T |
Cross Reference Number
FIRESTONE W01-358-8646
FIRESTONE W013588646
FIRESTONE W01 358 8646
Firestone w01-358-8646
Firestone w013588646
Firestone w01 358 8646
Firestone Rubber Bellow 1T15M-2
QIND RT1320325A1
Truck Air Spring Technical Data
Combo Stud : 1/4NPTF,3/4-16UNF
Bolt/Stud : 1/2-13UNC
Threaded Hole : M12X1.75
Bottom Piston Diameter : 248mm
Distance Between Combo Stud and Bolt : 157mm
Top Cover Plate Diameter: Ø231 mm
Threaded Hole Center Distance : 200mm
Truck Airbag Assembly
The airbag assembly is composed of the upper cover plate of the airbag, the rubber buffer block, the rubber bellow, and the lower seat of the airbag.
During the driving process of the vehicle, the vertical load and impact load are borne by the air bag. With the change of the load, the compressed air pressure in the air bag changes correspondingly, and the stiffness of the air bag changes accordingly. Therefore, it has ideal variable stiffness characteristics and greatly improves the the stability and comfort of the car.
GUOMAT Roll Air Spring For Truck
|
GUOMAT No. |
Contitech |
Firestone |
Goodyear |
Type |
|
1T6345 |
810MB4st |
W01-M58-6345 |
1R14-059 |
Piston Steel |
|
1T8773 |
810MB4st |
W01-M58-8773 |
|
Piston Steel |
|
1T5918 |
811MB |
|
1R14-718 |
Piston Steel |
|
1T6334 |
811M16K1 |
W01-M58-6334 |
1R14-719 |
Piston Steel |
|
1T6364 |
813MB4st |
W01-M58-6364 |
1R14-061 |
Piston Steel |
|
1T8701 |
836MBK6 |
W01-M58-8701 |
|
Piston Steel |
|
1T8722 |
836MK1 |
W01-M58-8722 |
1R12-712 |
Piston Steel |
|
1T8705 |
836MBK4 |
W01-M58-8705 |
|
Piston Steel |
|
1T8703 |
836MK2K8 |
W01-M58-8703 |
|
Piston Steel |
|
1T8721 |
836M2K1 |
W01-M58-8721 |
1R12-711 |
Piston Steel |
|
1T8966 |
881MB |
W01-M58-8966 |
1R14-702 |
Piston Steel |
|
1T8967 |
881MB |
|
1R14-748 |
Piston Steel |
|
1T8681 |
887MK4 |
W01-M58-8681 |
|
Piston Steel |
|
1T8682 |
887MK3 |
W01-M58-8682 |
|
Piston Steel |
|
1T7385 |
912NP02 |
W01-M58-7385 |
1R14-758 |
Piston Steel |
|
1T8609 |
940MB |
W01-M58-8609 |
1R11-763 |
Piston Steel |
|
1T8619 |
941MB |
W01-M58-8619 |
1R11-701 |
Piston Steel |
|
1T6367 |
4022NP03 |
W01-M58-6367 |
1R11-708 |
Piston Steel |
|
1T8612 |
4022NP05 |
W01-M58-8612 |
|
Piston Steel |
|
1T6348 |
4023NP03 |
W01-M58-6348 |
1R14-729 |
Piston Steel |
|
1T7370 |
4028NP05 |
W01-M58-7370 |
1R14-721 |
Piston Steel |
|
1T9089 |
4156NP09 |
W01-M58-9089 |
1R12-706 |
Piston Steel |
|
1T6297 |
4157NP04 |
W01-M58-6297 |
1R11-111 |
Piston Steel |
|
1T7074 |
4157NP05 |
W01-M58-7074 |
1R11-106 |
Piston Steel |

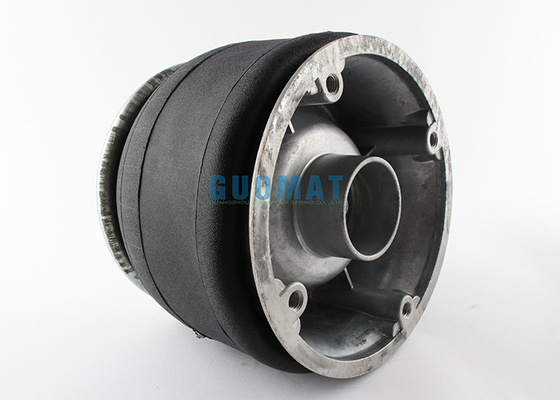

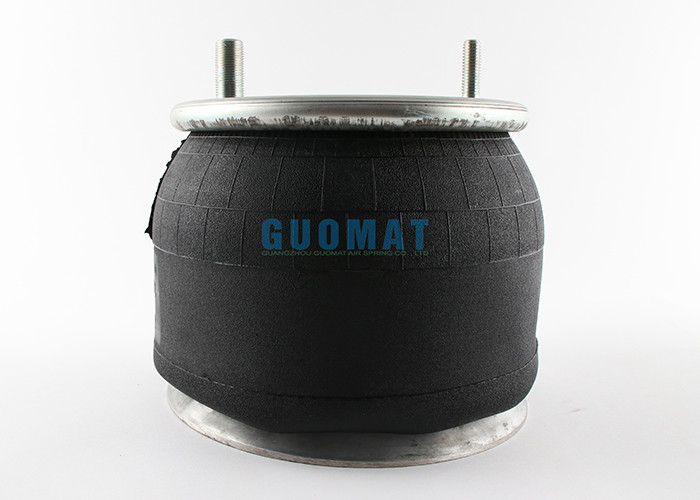

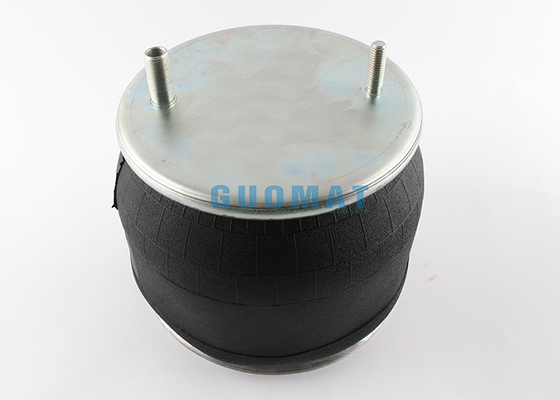

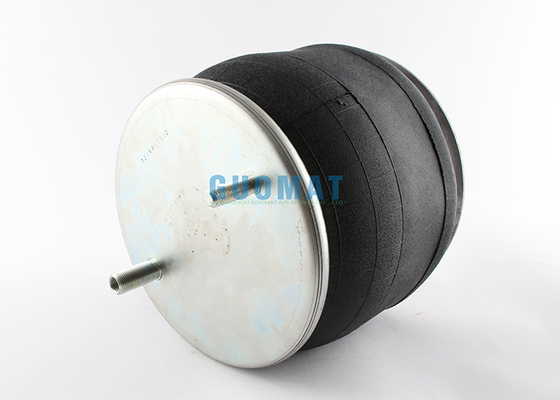

Details Images
