| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1R11-199 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-159.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| OEM No.: | Goodyear 1R11-199 | Material: | Rubber |
|---|---|---|---|
| Warranty: | 1 Year | Suspension Type: | Air Shock Absorber/Air Spring |
| Applicable Car Models: | For Truck | Position: | Rear |
| MOQ: | 10 Pieces | Other Name: | Truck Air Spring |
| High Light: | Goodyear 1R11-199 Truck Air Springs,20554759 Truck Air Springs |
||
Goodyear 1R11-199 Rubber Air Suspension Bags For VOL-VO 20554759 Truck Air Spring Assembly
Cross Information
Manufacturer : GOODYEAR
Goodyear : 1R11-199
Goodyear Part Number : 1R11-199
Firestone Style Number : W01-358-8510
Firestone Style Number : W01 358 8510
Firestone Style Number : W013588510
OEM Information
VOL-VO : 20554759
Material : Natural Rubber
Warranty : 12 Months
Placement on Vehicle : For VOL-VO
Position : Rear
Type : Truck Air Spring Assembly
Payment : L/C,T/T,Western Union,PayPal
Delivery Time : About 3-8 Working Days After Received Your payment
Packing : Export Package or According Your Requirment
Gooyear Rolling Lobe Air Spring
Rolling lobe air springs incorporate a piston which allows the flexible member to roll along the piston’s surface as the forces change.
|
Technical Data |
Force Available At Actuator |
||||||
|
Goodyear No. |
Air Hole |
Bumper |
Stroke (mm) |
100(psi) |
80(psi) |
60(psi) |
40(psi) |
|
1R8-550 |
1/4 |
NO |
330.2 |
- |
950 |
650 |
400 |
|
1R8-009 |
1/4 |
YES |
299.72 |
- |
895 |
605 |
400 |
|
1R9-009 |
1/4 |
NO |
226.06 |
915 |
705 |
510 |
300 |
|
1R9-003 |
1/4 |
NO |
312.45 |
1315 |
975 |
670 |
430 |
|
1R10-086 |
1/4 |
NO |
358.14 |
2560 |
1905 |
1240 |
690 |
|
1R11-028 |
1/4 |
NO |
236.22 |
2335 |
1875 |
1145 |
475 |
|
1R11-039 |
1/4 |
YES |
279.4 |
2365 |
1820 |
1365 |
945 |
|
1R12-095 |
1/4 |
YES |
231.14 |
2410 |
1750 |
1005 |
405 |
|
1R12-132 |
1/4 |
YES |
274.32 |
2740 |
1925 |
1230 |
630 |
|
1R12-092 |
1/4 |
YES |
340.36 |
2780 |
1705 |
1210 |
620 |
|
1R12-274 |
1/4 |
YES |
373.38 |
3015 |
2285 |
1465 |
795 |
Common Faults and Maintenance
Failure: Deformed air spring port
Cause: Deformation of the built-in steel ring due to incorrect operation or storage
Action: The air spring must be replaced
Failure: The outer rubber of the air spring is worn
Cause: The air spring rubs against other parts on the car, causing foreign matter to deposit on the piston or airbag
Measures: Regularly check the air spring system, remove foreign objects from the piston and airbag, and avoid friction between the air spring and other parts.
Failure:Wrinkled air spring
Cause: The position of the top plate and the piston is not aligned and twisted during installation, causing wrinkles on the airbag; the air spring cannot be turned up and down evenly along the piston waist ring because there is no gas for a long time or the air pressure is insufficient.
Measures: Avoid using the air spring when there is no pressure, regularly check whether there is any leakage in the air path, when the system is out of gas, add dunnage between the axle and the frame to prevent the air bag from being squeezed for a long time.

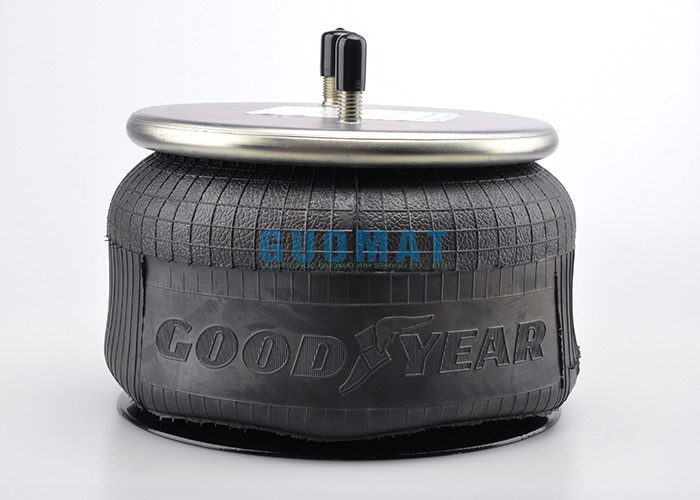

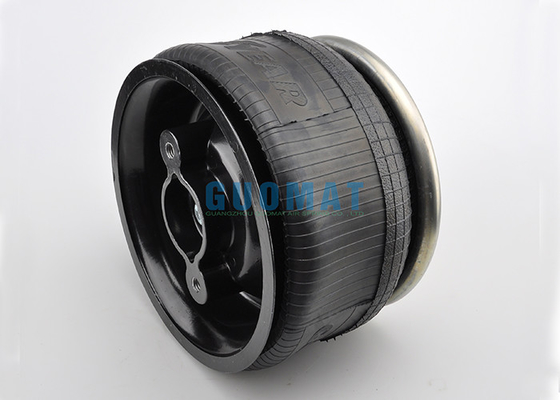

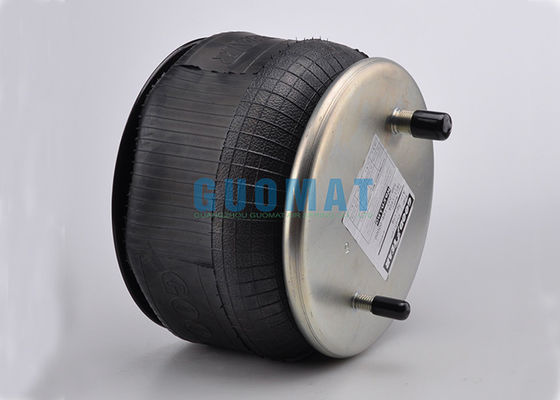

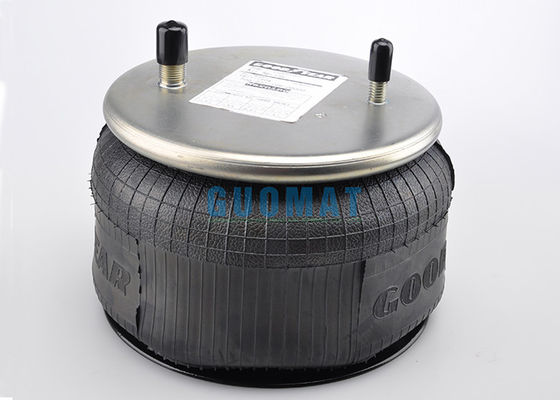

The Picture of Goodyear Rolling Lobe Type Air Spring
