| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T6053 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-159.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber | Warranty: | 1 Year Warranty |
|---|---|---|---|
| MOQ: | 10 Pieces | Application: | For Truck Axle Suspension |
| Type: | Rolling Lobe Type Air Spring | Top Cover Plate Dia.: | 332mm |
| Other Name: | 231mm | Goodyear: | 1R12-095/566243067 |
| High Light: | W01-358-9039 Firestone Truck Air Springs,1T15M-0 Truck Air Springs |
||

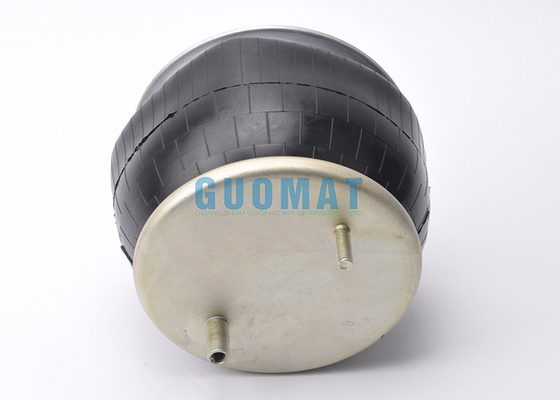

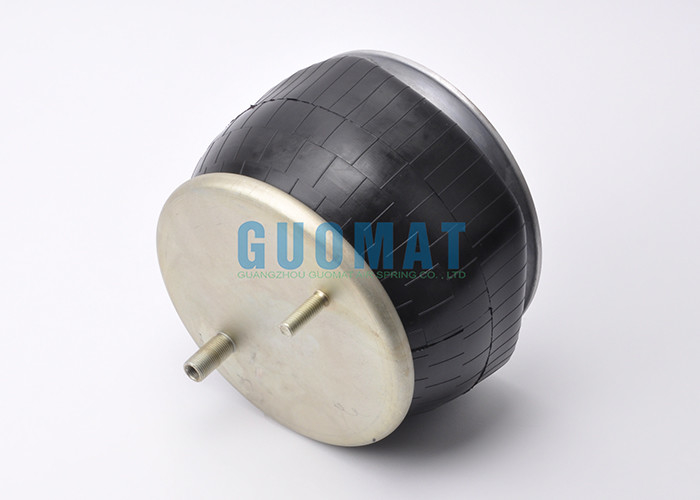

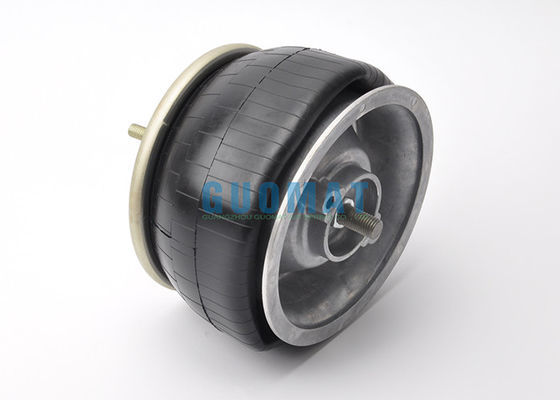

W01-358-9039 Firestone Truck Air Spring/Super Cushion Rolling Lobe Air Bag 1T15M-0 For VOL-VO
Product Description
|
Item Name |
Truck Air Spring |
Item Number |
1T6053 |
|
Material |
Steel Rubber |
Warranty |
12 Months |
|
Spring Type |
Assembly |
Package |
Strong Carton |
Cross Reference Number
Firestone Part Number : W01-358-9039
Firestone Part Number : W01 358 9039
Firestone Part Number : W013589039
Contitech Part Number : 910-10P311
Contitech Part Number : 910-10 P 311
Goodyear Part Number : 1R12-095
Goodyear Part Number : 1R 12-095
Goodyear Part Number : 1R12095
Firestone Bellow Number : 1T15M-0
Firestone Bellow Number : 1T 15M-0
Goodyear Bellow Number : 566243067
Goodyear Bellow Number : 566 243 067
Taurus Part Number : AS500-9039
Airtech Part Number : 134362
Airtech Part Number : 39039C
Granning Part Number : 17360-01
Triangle Part Number : 8311
Dayton Part Number : 352-9039
Hendrickson Part Number : S2061
Hendrickson Part Number : S-11650
Watson&Chalin Part Number : AS-0012
Ridewell Part Number : 1013589039C
VOL-VO Part Number : 85101153
Technical Data
Combo Stud : 1/4-18 NPTF,3/4-16UNC
The Stud at the Bottom : 3/4-10 UNC
Top Cover Plate Diameter : Ø231mm
The Between of Combo Stud and Bolt Distance : Ø140mm
Diameter of the Piston : Ø235mm
The Working Stroke : 332mm
Application : For Trucks and Trailers
After-sale service (1) Strict testing before shipment
(2) Follow up on customer feedback
(3) Quality Assurance
Packaging (1) Neutral Packaging
(2) Customized Packaging
We Should Check Truck Air Springs Regularly
The normal operation of the air suspension system is a necessary condition to ensure the best driving state of the vehicle, good driving comfort and driving stability. Maintenance and adjustment must be carried out in accordance with regulations.
Check the air spring for sufficient, balanced and leaking air every day or before each drive. If you find that the air spring is leaking, fix the problem as soon as possible before driving the vehicle.
How to Check for Air Spring Leaks
Use soapy water to check all possible leaking joints and pipes along the gas path.
