| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T9141 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-159.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Item Name: | Truck Air Ride Spring | Material: | Rubber |
|---|---|---|---|
| Warranty: | 1 Year | Placement: | Truck Suspension System |
| Color: | Black | MOQ: | 10 Pieces |
| Contitech: | 4810NP03 | Goodyear: | 1R13-039 |
| High Light: | W01-358--9141 Goodyear Air Spring,Firestone Truck Rubber Goodyear Air Spring |
||

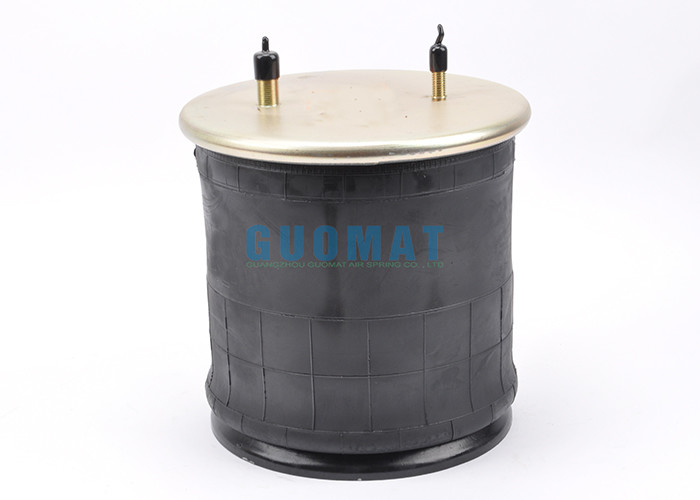

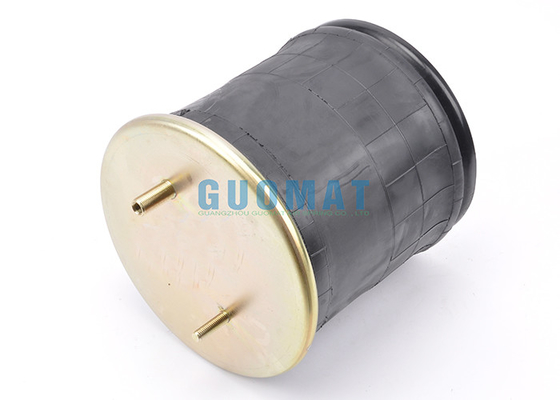

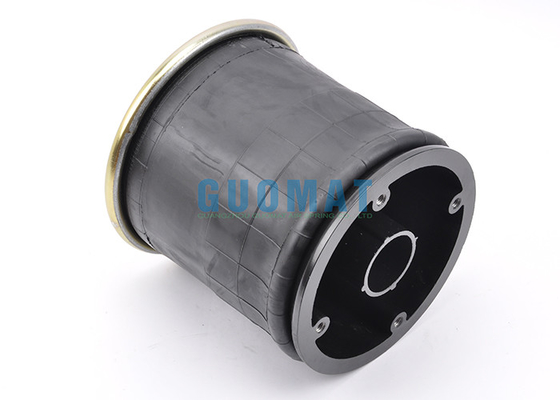

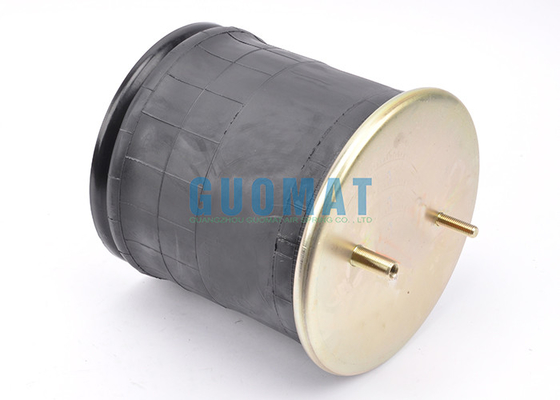

W01-358--9141 Firestone Truck Rubber Air Suspension Bellow No. 1T19F-7 Goodyear Air Spring
Product Description
|
Description |
For Truck Air Suspension Spring |
|
Part No. |
1T9141 |
|
Material |
Natural Rubber |
|
Position |
Suspension System |
|
Type |
Air Spring Assembly |
|
Payment |
L/C,T/T,Western Union,PayPal |
|
Delivery |
About 3-8 Working Days |
|
Packing |
Export Package or According Your Requirment |
|
OEM No. |
W01-358-9141;W01-358-9121 4810NP03;1R13-039 |
Original Equipment Manufacturing Number
Firestone Number: W01-358-9141
Firestone Number: W01 358 9141
Firestone Number: W013589141
Firestone Bellows Number: 1T19F-7
Firestone Bellows Number: 1T19F 7
Firestone Bellows Number: 1T19F7
Firestone Number: W01-358-9121
Firestone Number: W01 358 9121
Firestone Number: W013589121
Firestone Bellows Number: 1T19L-7
Firestone Bellows Number: 1T19L 7
Firestone Bellows Number: 1T19L7
Contitech Part Number: 4810NP03
Contitech Part Number: 4810 NP03
Contitech Part Number: 4810NP 03
Contitech Part Number: 4810 NP 03
Contitech Bellows Number: 10.5-17A317
Goodyear Part Number: 1R13-039
Goodyear Part Number: 1R13 039
Sauer Number : P50-733
Technical Data
❶Cover Plate
Cover Plate Diameter: Ø289mm
❷Combo Strud/Bolt
Combo Strud: 1/4 NPT,3/4-16UNF
Bolt/Strut: 1/2-13UNF
❸Rubber Bellow
Rubber Bellow: Ø330mm
❹Piston
Piston Diameter: Ø260mm
Piston Height: 140mm
❺Threaded Hole
Threaded Hole: 4X1/2-13UNC
Our Products and Applications
The production process of our company's products is completed under the control of ISO/TS16949:2002 quality system. Through advanced production equipment and testing equipment for production and testing control, senior professional and technical personnel design and management, our company's product life has reached more than 4 million times, in comparison with European and American product tests, the appearance and performance of our products Has met the requirements of European and American customers.
Other Truck Air Bags
|
GUOMAT No. |
Contitech |
Firestone |
Goodyear |
Phoenix |
|
1T0766 |
836MB |
W01-M58-0766 |
1R12-700 |
1DF25-1 |
|
1T8722 |
836MK1 |
W01-M58-8722 |
1R12-712 |
1DF25-11 |
|
1T0775 |
836MB |
W01-M58-0775 |
|
1DF25-4 |
|
1T8705 |
836MBK4 |
W01-M58-8705 |
|
1DF25-4 |
|
1T8701 |
836MBK6 |
W01-M58-8701 |
|
1DF25-15 |
|
1T8978 |
881MB |
W01-M58-8978 |
1R14-708 |
1DK32 |
|
1T8966 |
881MB |
W01-M58-8966 |
1R14-712 |
1DK32 |
|
1T8969 |
881MB |
W01-M58-8969 |
|
1DK32 |
|
1T0780 |
887M |
W01-M58-0780 |
|
|
|
1T8613 |
940MB |
W01-M58-8613 |
1R11-703 |
1DK21K |
|
1T8609 |
|
W01-M58-8609 |
|
1DK21K |
|
1T8620 |
941MB |
W01-M58-8620 |
1R11-700 |
1DK21 |
|
1T8619 |
4941NP02 |
W01-M58-8619 |
1R11-701 |
1DK21 |
|
1T8611 |
942MB |
W01-M58-8611 |
1R14-700 |
1DK32L |
|
1T4390 |
4390N1 |
|
|
1KF21-1 |
|
1T4391 |
4390NP01 |
|
|
1KF21-1NP |
|
1T4713 |
4713NP02 |
|
1R12-762 |
|
|
1T4420 |
4420NP02 |
|
|
|
|
1T8601 |
4881NP02 |
W01-M58-8601 |
1R14-701 |
1DK32K |
|
1T8602 |
|
W01-M58-8602 |
1R14-701 |
1DK32K |
