| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T0500 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-159.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber,Aluminium Alloy, Iron | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New | Color: | Black |
| Fitment Type: | Direct Replacement | Manufacturer Part Number: | 4913NP02 |
| Goodyear: | 1R14-753 | Interchange Part Number: | W01-095-0500 |
| High Light: | W01-095-0500 Suspension Air Spring,4913NP02 Suspension Air Spring |
||
Firestone W01-095-0500 Suspension Air Spring Bags Truck Air Shock Absorber 4913NP02
Product Description
|
Material |
Rubber+Steel |
Part Number |
1T0500 |
|
Warranty |
12 Months |
Application |
Truck Suspension |
|
MOQ |
10 Pieces |
Features |
Durable |
OE Manufacturer Number
Firestone Manufacturer Part Number: W01-095-0500
Firestone Manufacturer Part Number: W01 095 0500
Firestone Manufacturer Part Number: W010950500
Firestone Superseded Part Number: WO1-095-0500
Firestone Superseded Part Number: WO10950500
Firestone Superseded Part Number: WO1 095 0500
Contitech Manufacturer Part Number: 4913NP02
Contitech Manufacturer Part Number: 4913 NP02
Contitech Manufacturer Part Number: 4913 NP 02
Goodyear Manufacturer Part Number: 1R14-753
Goodyear Manufacturer Part Number: 1R 14-753
Goodyear Manufacturer Part Number: 1R14 753
Goodyear Superseded Part Number: 1r14-753
Goodyear Superseded Part Number: 1r14 753
Goodyear Superseded Part Number: 1r 14-753
Phoenix Manufacturer Part Number: 1D28H-16
Phoenix Manufacturer Part Number: 1D 28H-16
Phoenix Manufacturer Part Number: 1D28H 16
Taurus Manufacturer Part Number: KR 625-16
Taurus Manufacturer Part Number: KR625-16
Taurus Manufacturer Part Number: KR 625 16
Dunlop FR Manufacturer Part Number: D14B42
Dunlop FR Manufacturer Part Number: D14 B42
CF Gomma Manufacturer Part Number: 1T19E-93
CF Gomma Manufacturer Part Number: 1T19E 93
Airtech Superseded Part Number: 132 122
Airtech Superseded Part Number: 349 13K
Granning Superseded Part Number: 16105
WABCO Superseded Part Number: 951 814 753 0
Meritor Superseded Part Number: MLF7081
Scania Superseded Part Number: 1379392
Scania Superseded Part Number: 1402423
Contitech 4913NP02 Technical Data
Top Cover Plate Diameter: Ø289mm
Air Inlet: M16X1.5
Distance Between Two Stud on Top Cover Plate :144 mm
Distance Between the Stud and The Air Inlet on Top Cover Plate: 105mm
Rubber Bellows Natural Diameter: 330 mm
Rubber Bellows MAX Height : 797 mm
Rubber Bellows MIN Height :235 mm
The Working Stroke: 562mm
Bottom Piston Diameter : Ø227mm
Bottom Piston Height :209 mm
Piston Bolt Tooth : M16X2.0 and Ø16
Distance Between Two Bolt : 70 mm
Without Bumper Block
Packaging Details
|
Package |
Brown Carton Box |
|
Model Number |
1T0500 |
|
Net Weight |
13.41 kg |
|
Gross Weight |
14.01 kg |
|
Packaging Length |
29 cm |
|
Packing Height |
42 cm |
|
Packaging Width |
29 cm |
|
Quantity |
1 piece 1T0500 is included in the package |

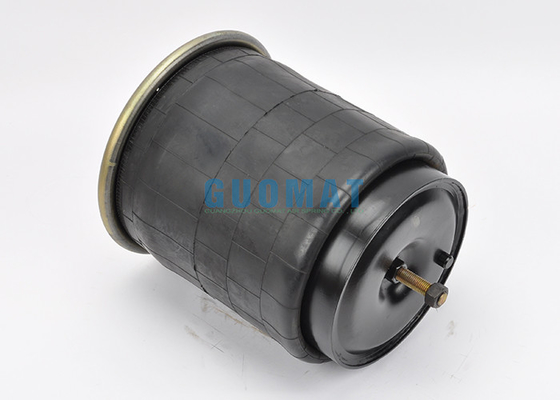

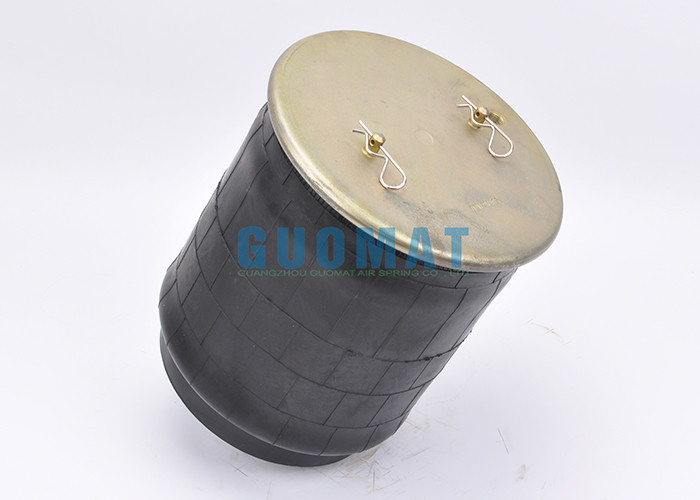

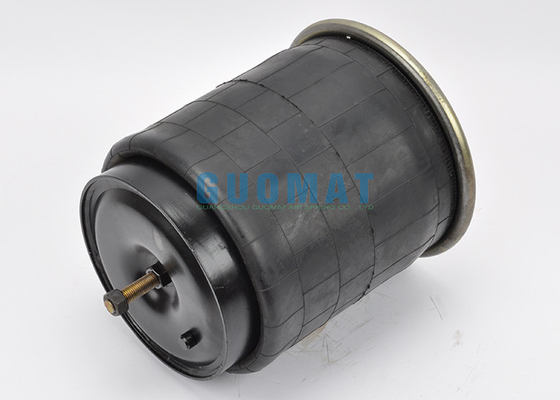

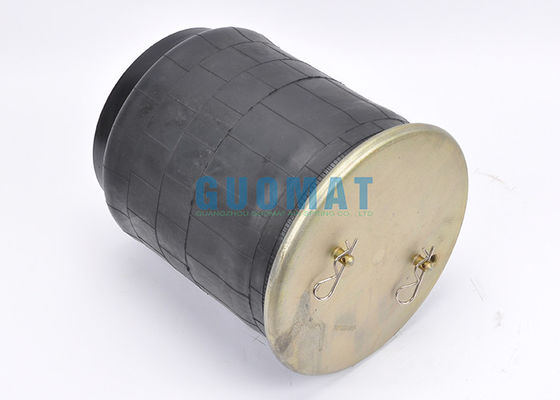

The Picture of Truck Air Spring Assembly
