Firestone W01-M58-8472 Truck Air Springs Bags For VOL-VO 20427800 20427803

Truck Air Suspension Spring Bags Firestone W01-M58-8472 For VOL-VO 20427800/20427803

Product Description

Car Model: Bus/Trailer/Truck/Car

Model No.: 1T8472

Truck model: VOL-VO Truck

Material: Steel Rubber

Warranty:12 Months

Spring Type: Air Spring Assembly

Package: Strong Carton

Temperature Range: -40℃ ~ +70℃

Condition: 100% Brand New

OEM Number-For Firestone/For Contitech/For Goodyear/For Phoenix/For VOL-VO

Original Equipment Manufacturer

For Firestone W01-M58-8472 (Air Spring)

For Firestone W01 M58 8472 (Air Spring)

For Firestone W01M588472 (Air Spring)

For Firestone WO1-M58-8472 (Air Spring)

For Firestone WO1 M58 8472 (Air Spring)

For Firestone WO1M588472 (Air Spring)

For Contitech 6605NP01(Air Bag)

For Contitech 6605 NP01(Air Bag)

For Contitech 6605 NP 01(Air Bag)

For Goodyear 1R11-805(Air Bellow)

For Goodyear 1R 11-805(Air Bellow)

For Goodyear 1R11 805(Air Bellow)

For Phoenix 1DF20D-1(Rubber Air Spring)

For Dunlop FR D11B42(Air Suspension)

For Airtech 37803K(AirBag)

For Airfren 20.6605.1CM(Suspension Air Spring)

For DT 2.62176 (Suspension Air Bags)

For Templin 04.060.6106.991(Air Suspension Spring)

For Granning 93914(Air Suspension Spring Bags)

For WABCO 9518110050(Air Spring)

For Meritor MLF7154(Air Spring)

For VOL-VO 20427800(Air Spring)

For VOL-VO 20427803(Air Spring)

For VOL-VO 20456150(Air Spring)

For VOL-VO 20531984(Air Spring)

For VOL-VO 20582206(Air Spring)

For VOL-VO 3171692(Air Spring)

Application

1. Stud
A permanent part of the bead plate assembly used to attach the airspring to the suspension.

2. Combo Stud
Combination mounting stud and air fitting.

3. Blind Nut
A permanent part of the bead plate assembly providing an alternate mounting system to the stud.

4. Air Fitting Hole
A tapped hole usually 1/4" N.P.T. providing air entrance for the part.

5. Bead Plate
Permanently crimped onto the bellows at the factory allowing complete part leak testing prior to shipment.

6. Bellows

The heart of an Airide spring. Includes at least four plies, or layers, of material–an inner layer, two plies of cord-reinforced fabric, and an outer layer.

7. Bumper (Optional)
A solid molded rubber fail-safe device used on many suspension applications. Prevents excessive damage to vehicle and suspension in the case of sudden air pressure loss.

8. Piston
The lower section of the 1T and 1X style of airspring made from aluminum, steel or fiber reinforced plastic. Provides lower mounting arrangement for the airspring in the form of tapped holes or studs.

9. Piston Bolt
Attaches the piston to the bellows assembly. Extended, in some cases, to serve as a means of attaching the spring to the suspension.

10. Girdle Hoop
A ring between the convolutions of the convolutedtype air spring.

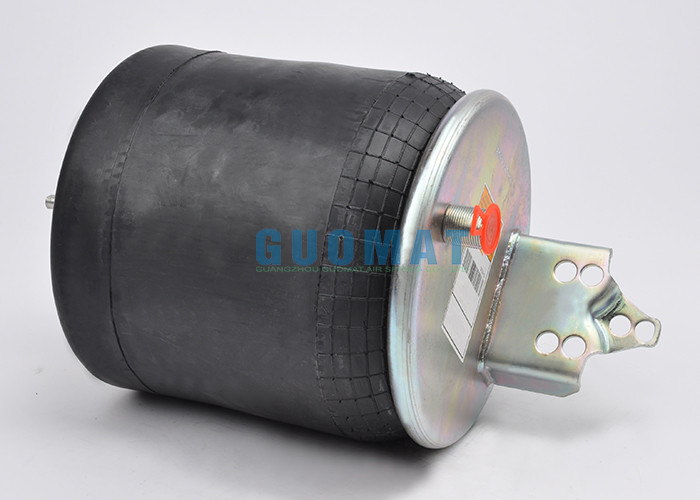

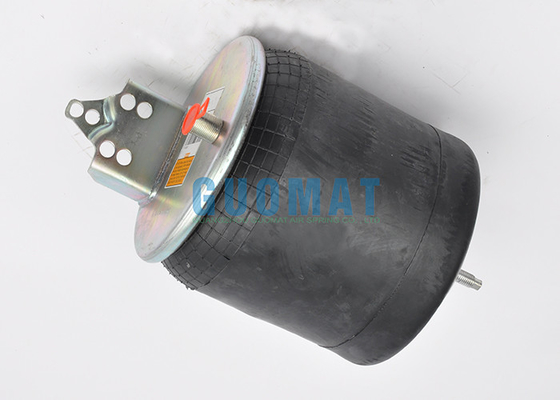

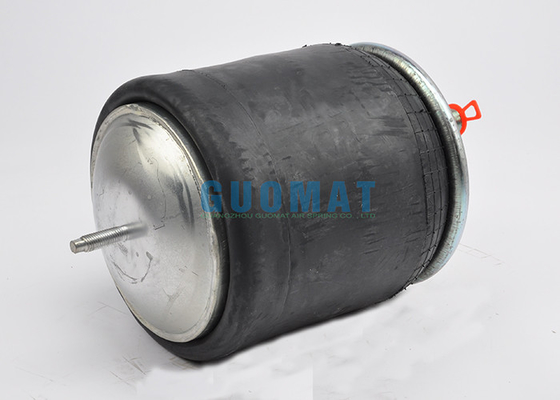

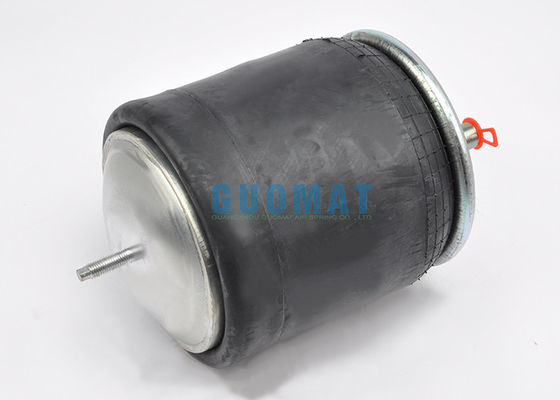

The Real Pictures of GUOMAT 1T8472
