4Z7616051A 4Z7616052A Rear Air Suspension Spring For Audi A6 C5 Replacement Kit

Replacement Kit 4Z7616051A 4Z7616052A New Rear Air Suspension Spring For Audi A6 C5

Product Description

Guomat

501002

Application

For Audi A6/C5 4B Allroad Quattro

Year

1999,2000,2001,2002,2003,2004,2005,2006

OEM No.

4Z7616051A

4Z 7616 051A

Position

Rear Left

Guomat

501003

Application

For Audi A6/C5 4B Allroad Quattro

Year

1999,2000,2001,2002,2003,2004,2005,2006

OEM No.

4Z7616052A

4Z 7616 052A

Position

Rear Right

Stock, Shipping and Warranty

1.Item in Stock

2.Fast delivery

3.Unbeatable price and original quality

4.Quality Guarantee: 24 months

How to Replace an Audi Rear Air Strut

1. Disconnect Your Battery.
2. Jack up your Audi.
3. Take off the rear wheel. Use your lug wrench to pull off your lug nuts.
4. Disconnect the airline behind the air spring. Use a wrench to unscrew the airline fitting here.
5. Remove your sway bar nut and bolt.
6. Remove the lower shock mounting bolt.
7. Unplug the electrical connectors.
8. Locate the retaining screw beneath the air spring.
9. Remove the air spring from your Audi.
10. Install your new air spring.
11. Put the retaining screw beneath the air spring back into place.
12. Connect your electrical connectors.
13. Rescrew your lower shock mounting bolt and lower sway bar nut and bolt.
14. Connect your new airline to your new air spring.Remove the fitting from the air hose. Then connect the hose to the back of your air spring.
15. Put your wheel back on your car. Tighten all your lug nuts to the manufacturer-specified torque settings.
16. Lower your vehicle. You can now reconnect your battery. Start your engine and wait a few minutes to ensure your air suspension and all other parts work as they should.

For AUDI Air Suspension Strut

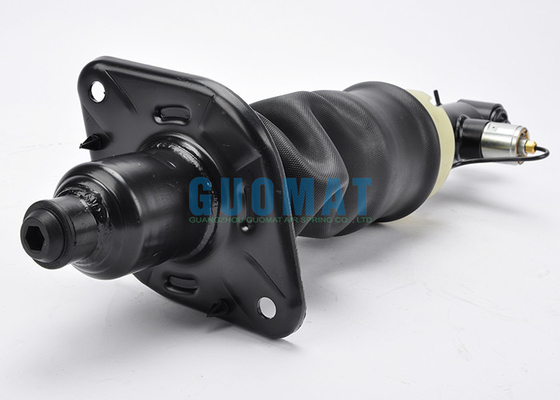

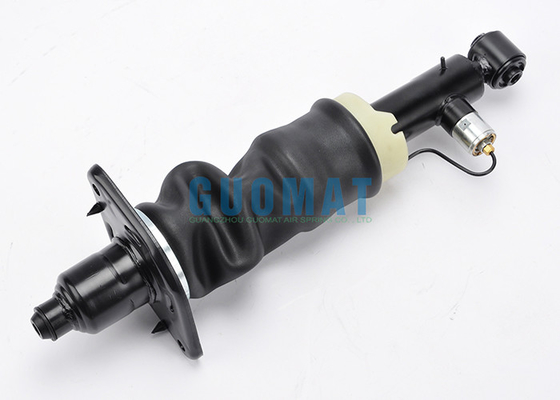

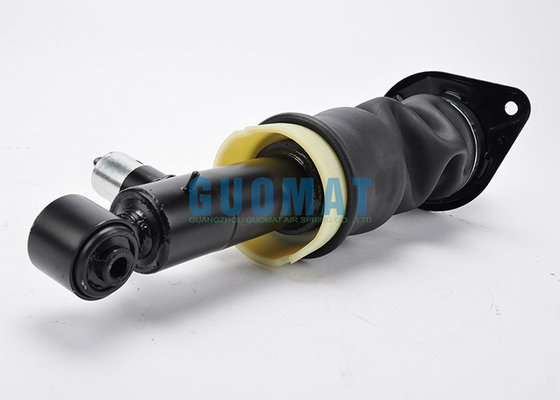

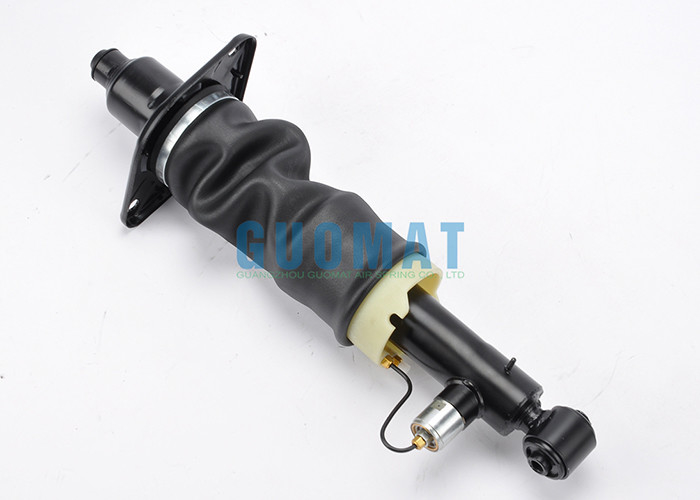

The Real Pictures
