| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T 9206 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Steel | Warranty: | 12 Months |
|---|---|---|---|
| Function: | Reduce Vibration | Fitment Type: | Direct Replacement |
| Item Name: | Truck Air Spring Assembly | Application: | For Truck Air Suspension |
| OEM: | TRL230m | Cover Plate Dia.: | 230mm |
| High Light: | TRL230m Truck Air Spring,Rubber Suspension Truck Air Spring,Truck Air Spring Without Piston |
||
High Quality Rubber Truck Air Spring TRL230m Suspension Air Bellow Assembly Without Piston
Product Description
GUOMAT 1T9206
CROSS TRL230m / TRL230M
Material: Rubber + Steel
Warranty: 12 Months
MOQ: 10 Pieces
Color: Black
Air Spring: Air Spring Assembly
Function: Reduce Vibration
Transport Package: Neutral Packing
Application: For Truck Air Suspension
What is Air Spring
Air spring is a carefully designed flexible part of rubber and ply, which contains a certain volume of compressed air column inside. The air spring itself does not provide force and support load, it is done by compressed air column. The air spring is also equipped with a metal end seal plate, and the standard double-wire mesh layer is composed of four layers.
Trucks and trailers with air springs have far fewer "wear and crack" failures than trucks with leaf springs. This means longer cab and car life, lower operating costs, less downtime, etc.
Beyond that, the truck rides better, which is also important for a loaded truck. Trucks fitted with air springs experience less cargo damage than trucks with traditional leaf springs, improving economics. After the air spring is installed, the driver can drive more comfortably, with higher efficiency and less fatigue.
Guomat Roll Air Springs
| No. | Part Number | Manufacturer Number |
| 1 | 1T9200 |
Toyo:TRL230L UD: 53106-99200 |
| 2 | 1T9201 |
Toyo:TRL230L UD: 53106-99201 |
| 3 | 1T9204 |
Toyo:TRL230L UD: 53106-99204 |
| 4 | 1T9205 | Toyo:TRL230m2 |
| 5 | 1T3452 | VOL-VO: 20703452 |
| 6 | 1T0491 |
Contitech: 810NT Firestone: W01-M58-0491 : 1T19F-7/L-7 Goodyear: 1R14-714 Phoenix: 1DK28A MAN: 81.43601.0047 |
| 7 | 1T0749 |
Contitech: 810NTB Firestone: W01-M58-0749 : 1T19F-7/L-7 Goodyear: 1R14-713 Phoenix: 1DK28A-4 |
| 8 | 1T7237 |
Contitech: 810MB/O Firestone: W01-M58-7237 : 1T19F-7/L-7 Phoenix: 1D28A |
| 9 | 1T6345 |
Contitech: 810MB4st Firestone: W01-M58-6345 : W01-M58-8775 : 1T19F-7*L-7 Goodyear: 1R14-059 : 1R14-716 |
| 10 | 1T8773 |
Contitech: 810MB4st Firestone: W01-M58-8773 : 1T19F-7/L-7 |
| 11 | 1T6359 |
Contitech: 811MB/O Firestone: W01-M58-6359 : 1T19F-11/L-11 |
| 12 | 1T5918 |
Contitech:811M16 Firestone: W01-M58-6333 : 1T19F-11/L-11 Phoenix: 1D28B-7 |
| 13 | 1T6334 |
Contitech: 811M16K1 Firestone: W01-M58-6334 Goodyear: 1R14-719 Phoenix: 1D28B-7 |

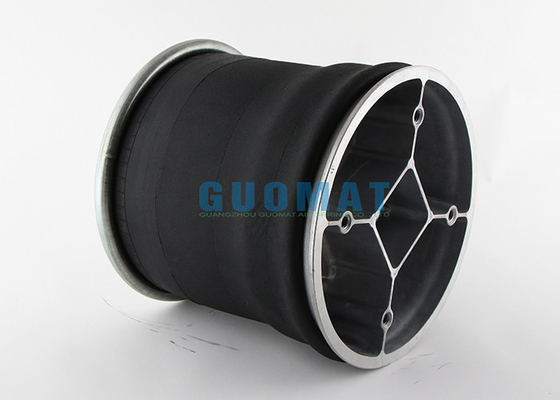

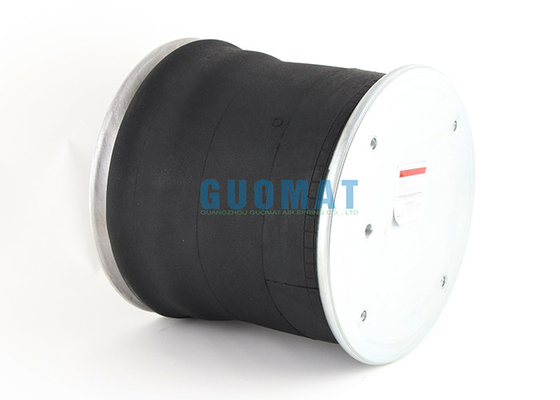

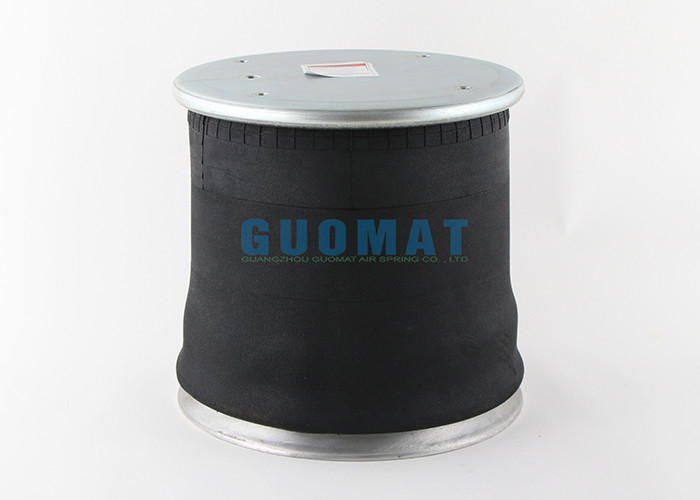

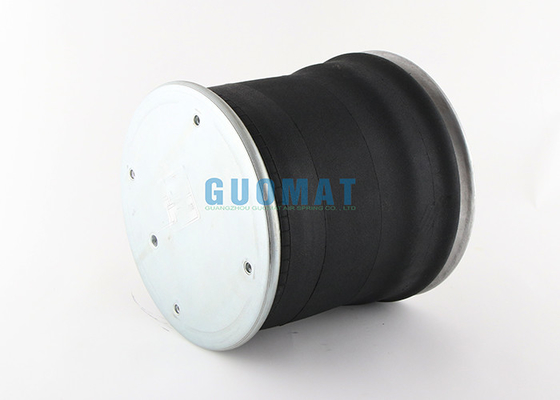

Real Pictures
