| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T8966 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-89.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Features: | Sealed | Spring Material: | Rubber+Steel |
|---|---|---|---|
| Warranty: | 1 Year | Fitment Type: | Direct Replacement |
| Platform: | Universal | Condition: | New |
| Type: | Air Suspension Spring | Mount Type: | Stud |
| High Light: | W01-M58-8966 Complete Air Spring,1R14-702 Complete Air Spring,Truck Air Springs 1R14-712 |
||
Truck Air Suspension W01-M58-8966 Complete Air Spring Goodyear 1R14-702/1R14-703/1R14-712
|
Cross References |
|||
|
Contitech |
881MB |
Firestone |
W01-M58-8966 |
|
Firestone |
1T66F-10.8 |
Goodyear |
1R14-702 |
|
Goodyear |
1R14-703 |
Goodyear |
1R14-712 |
|
Dunlop |
D14B36 |
CF Gomma |
1TC360-45-205171 |
|
Taurus |
KR836-05 |
||
|
Vehicle Original Parts |
|||
|
BPW36 |
05.429.40.08.0 |
BPW36 |
05.429.41.21.1 |
|
BPW36 |
05.429.41.36.1 |
BPW36 |
05.429.40.39.1 |
|
BPW36 |
05.429.40.50.1 |
BPW36 |
05.429.40.61.1 |
The Technicle Data for GUOMAT 1T8966
Gas Hole/Air Fitting
Gas Hole: M22X1.5
Distance Between Gas Hole and Stud: 25 mm
Distance Between Gas Hole and Central Axis: 95 mm
Cover Plate
Top Cover Plate Diameter: 311mm
Stud
Top Cover Plate Stud Tooth: 2 pcs M 12
The Stud Center Distance of Top Cover Plate: 210 mm
The Rubber Bellow Natural Diameter: 355mm
Bumper Block Height: 30 mm
Bottom Piston Diameter: 256mm
Bottom Piston Height:188.5 mm
Piston Bolt Tooth: M16
12 pieces of Bolt
Middle Inside Between Center Bolt: 70 mm
High-Quality GUOMAT 1T8966 Rubber Air Spring Cross FIRESTONE W01M588966
CONTITECH 881MB CONTITECH 881 MB
FIRESTONE W01 M58 8966 FIRESTONE 1T66F-10.8
GOODYEAR 1R 14-702 GOODYEAR1R 14-703 GOODYEAR 1R 14-712
DUNLOP D14B36 CF GOMMA 1TC360-45-205171
TAURUS KR836-05
Advantages of Truck Air Spring
1. Only a stable vehicle can provide safe and correct aiming of headlights - critical to night driving safety
2. When towing trailers and trucks and installing air springs, the height of the vehicle can be adjusted for precise alignment, thereby eliminating vehicle sway.
3. It can improve the comfort of the driver and relieve driver fatigue.
4. Effectively reduce fuel consumption and improve economic benefits
5. Protect the parts of the vehicle itself and prolong the life of the vehicle
Firestone Air Spring Assembly
| Firestone Part Number | Bellow Number | Firestone Part Number | Bellow Number |
| W01-M58-6008 | 19 | W01-M58-6011 | 19 |
| W01-M58-6040 | 19-75 | W01-M58-6066 | 128-1 |
| W01-M58-6070 | 128 | W01-M58-6071 | 128 |
| W01-M58-6077 | 205 | W01-M58-6079 | 205 |
| W01-M58-6100 | 113 | W01-M58-6101 | 113 |
| W01-M58-6102 | 113 | W01-M58-6105 | 267-1.5(formerly 255-1.5) |
| W01-M58-6107 | 233-2 | W01-M58-6109 | 233-2 |
| W01-M58-6112 | 21 | W01-M58-6113 | 21 |
| W01-M58-6114 | 21 | W01-M58-6115 | 21 |

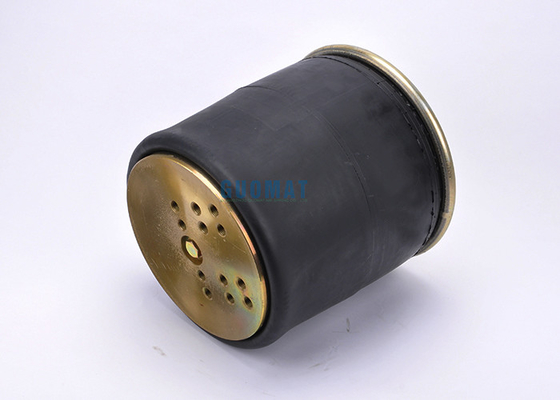

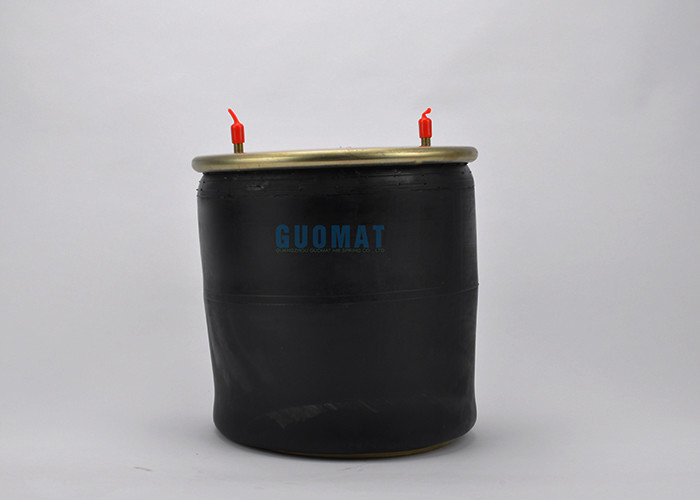

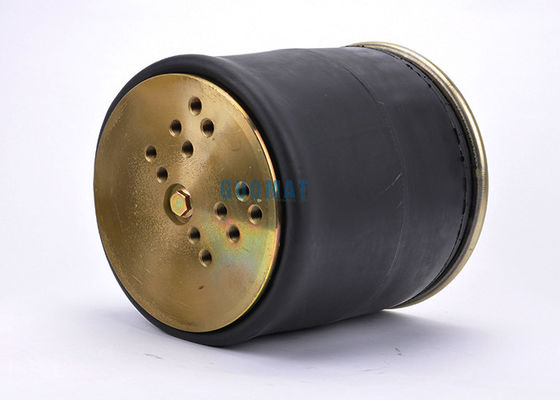

The Real Pictures of W01M588966 Firestone Air Spring
