| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T5311 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Spring Material: | Rubber+Steel | Warranty: | 1 Year |
|---|---|---|---|
| Quality: | 100% Tested | Application: | For Truck/Trailer |
| Other Name: | Air Shock Part | Condition: | Brand-New |
| Air Fitting: | 1/4NPT | Air Spring Type: | Rolling Lobe Type |
| High Light: | Firestone Aluminum Plate Air Spring,W01-358-5311 Aluminum Plate Air Spring,1003585311C Truck Air Springs |
||
Truck Suspension Part W01-358-5311 Firestone Aluminum Plate Air Spring Isolator 1003585311C
Product Description
Firestone Manufacturer Part Number:W01-358-5311
Firestone Manufacturer Part Number:W01 358 5311
Firestone Manufacturer Part Number:W013585311
Firestone Manufacturer Part Number:WO1-358-5311
Firestone Manufacturer Part Number:WO1 358 5311
Firestone Manufacturer Part Number:WO13585311
Firestone Manufacturer Bellows Number: 1T14C-1 & 1T14F-2
Firestone Manufacturer Bellows Number: 1T14C-1
Firestone Manufacturer Bellows Number: 1T14F-2
Ride Manufacturer Part Number:1003585311C
Ride Manufacturer Part Number:100 358 5311C
Note:Flxible 6-379-1
GUOMAT 1T5311 Truck Air Spring Technical Data
The Top Cover Plate Diameter: 160mm
Gas Hole: 1/4NPT
Combo Stud: 2X3/8-16UNC
The Distance Between Combo Stud: 89mm
The Distance Between Combo Stud and Gas Hole: 44mm
Natural Height: 230mm
Piston Width: 179mm
Piston Height: 93mm
W01-358-5311 Force Table
|
Assembly Height (mm) |
Volume @7 Bar(cu cm) |
EFF Area @7 Bar (cm sq) |
kN Force |
||||
|
@3 Bar |
@4 Bar |
@5 Bar |
@6 Bar |
@7 Bar |
|||
|
300 |
6065 |
171 |
5.05 |
6.70 |
8.39 |
10.23 |
11.94 |
|
280 |
5704 |
192 |
5.62 |
7.45 |
9.45 |
11.52 |
13.45 |
|
260 |
5306 |
205 |
5.86 |
8.00 |
10.06 |
12.30 |
14.36 |
|
240 |
4881 |
210 |
5.89 |
8.15 |
10.28 |
12.60 |
14.73 |
|
220 |
4438 |
211 |
5.89 |
8.15 |
10.29 |
12.63 |
14.76 |
|
200 |
3967 |
211 |
5.89 |
8.15 |
10.29 |
12.63 |
14.76 |
|
180 |
3494 |
211 |
5.98 |
8.19 |
10.32 |
12.63 |
14.76 |
|
160 |
3027 |
220 |
6.39 |
8.59 |
10.80 |
13.18 |
15.37 |
1T14C-1 Style Firestone Air Spring
|
Item |
Description |
|
W01-358-5310 |
Blind nuts,1/4 NPT |
|
W01-358-5311 |
Blind nuts,1/4 NPT,bumper |
|
W01-358-5305 |
Blind nuts,3/4 NPT |
|
W01-358-5306 |
Blind nuts,3/4 NPT,bumper |
|
W01-358-5307 |
Countersunj steel bead ring 1 3/4 bolts,nuts,washers |
Advantages of Air Spring

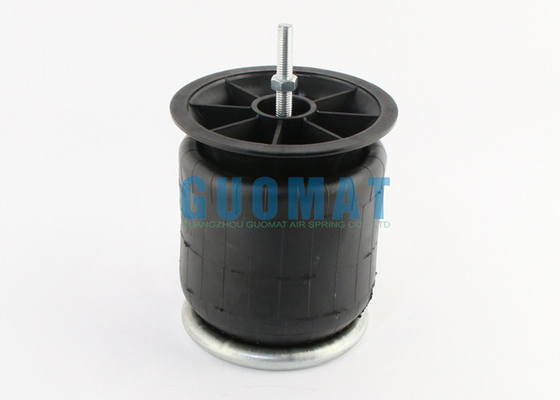

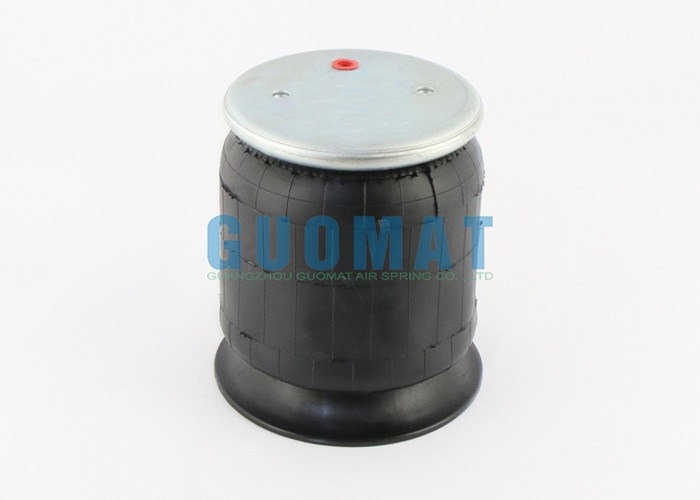

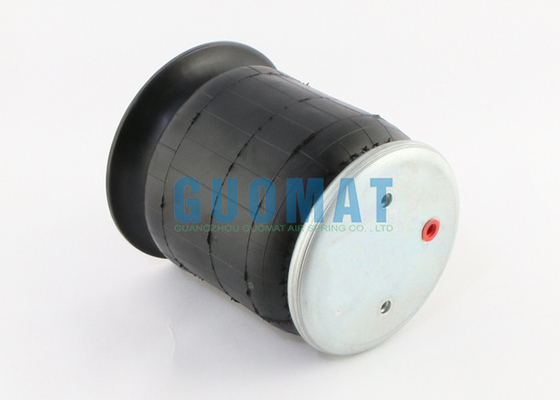

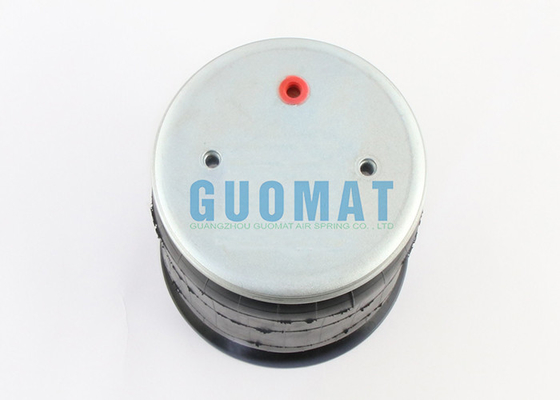

The Real Pictures
