Truck Cabin Air Spring Shock Absorber Goodyear 1S6-641 Seat Air Bag 579-120-641

Truck Cabin Air Spring Shock Absorber Goodyear 1S6-641 Seat Air Bag 579-120-641

  • Truck Cabin Air Spring Shock Absorber Goodyear 1S6-641 Seat Air Bag 579-120-641
  • Truck Cabin Air Spring Shock Absorber Goodyear 1S6-641 Seat Air Bag 579-120-641
  • Truck Cabin Air Spring Shock Absorber Goodyear 1S6-641 Seat Air Bag 579-120-641
  • Truck Cabin Air Spring Shock Absorber Goodyear 1S6-641 Seat Air Bag 579-120-641
Truck Cabin Air Spring Shock Absorber Goodyear 1S6-641 Seat Air Bag 579-120-641
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1S6-641
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $49.9-89.9/pc
Packaging Details: Strong Carton Box Or As Customers Need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Item Name: Cab Air Shock Absorber Material: Plastic
Warranty: 1 Year Warranty Quality: 100 % Tested
Goodyear: 1S6-641 Type: Sleeve Type Air Spring
Position: For Driver's Seats Function: Reduce Vibration
High Light:

Goodyear Cabin Air Spring Shock Absorber

,

579-120-641 Air Spring Shock Absorber

Truck Cabin Air Spring Shock Absorber Goodyear 1S6-641 Seat Air Bag 579-120-641



Product Description



Product: Goodyear Sleeve Air Bags

For Car: Cab Seats for General Trucks

Goodyear: 1S6-641

Bellow Type: Sleeve

Number of Top Plate Hole/Stu: 1

Top Diameter: 3.15

Number od Bottom Plate Hole/Stud: 1

Bottom Diameter: 3.89

Bottom Plate Alignment: Parallel

Bumper: Without

Min Height: 4.1

Max Height: 10.88



OEM Reference Number

Goodyear Number: 1S6-641

Goodyear Number: 1S6 641

Goodyear Number: 1S 6-641

Goodyear Number: 1S 6 641

Goodyear Bellow Number: 579120641

Goodyear Bellow Number: 579-120-641

Goodyear Bellow Number: 579 120 641

Goodyear Piston Number: 566087215

Goodyear Piston Number: 566-08-7-215

Goodyear Piston Number: 566 08 7 215



How to Install Truck Seat Air Bag

1. Prepare the necessary tools and equipment, including jack stands, floor jacks, a set of socket wrenches and new cab shock absorbers.

2. Use a socket wrench to remove the old shock absorber.

3. Install the new shock absorbers, making sure they are properly aligned with the mounting brackets.

4. Use a torque wrench to tighten the bolt or nut to the manufacturer's recommended torque specification.

5. Test the shock absorbers by compressing and extending the cab and seeing how the shock absorbers respond.



Shock absorbers are usually replaced in pairs for balance and stability, so it is best to replace both shock absorbers on the same axle at the same time.



Also, be sure to wear safety goggles and follow proper safety precautions when working under a vehicle (such as with a jack stand) to prevent serious injury.



Goodyear Seat Air Bag

Part No.

Top Plate Hole/Stud Qty

Top Plate Dia.

Bottom Plate

Hole/Stud Qty

Bottom Plate Dia.

Min.Height

Min.Height

1S5-040

1

2.65

1

3.25

2.25

6.25

1S5-045

1

2.65

1

2.875

2.25

6.25

1S5-055

1

2.65

1

2.12

4.0

10.0

1S5-057

2

2.65

1

3.25

2.2

6.25

1S5-060

1

2.65

1

2.12

4.0

9.5

1S5-061

2

2.65

1

2.12

4.0

10.5

1S5-070

1

2.65

2

2.12

5.5

10.0

1S5-072

1

2.65

1

2.12

4.0

10.5

1S5-120

1

2.65

1

2.12

4.0

10.5

1S5-122

1

3.15

1

3.53

4.0

10.5

1S5-133

1

2.65

1

3.25

2.2

6.25

1S5-135

2

2.65

1

3.25

2.2

7.2

1S5-152

1

2.65

1

2.12

4.0

10.5

1S5-154

1

2.65

1

3.53

4.1

9.5

1S5-157

1

2.65

1

2.88

2.2

6.8

1S5-164

1

2.65

1

3.25

5.4

9.8

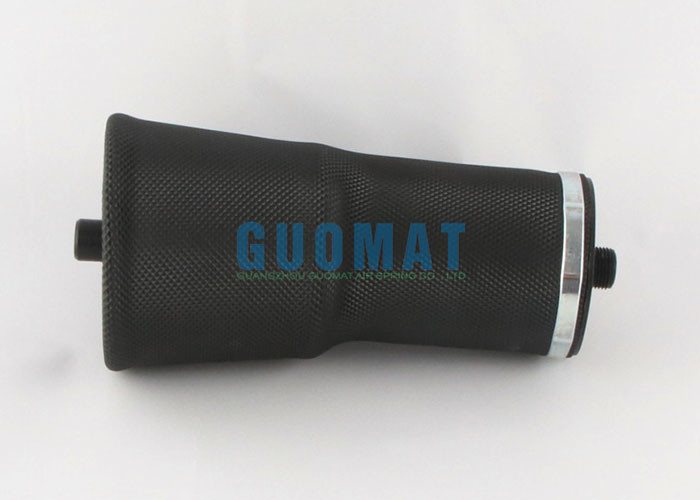

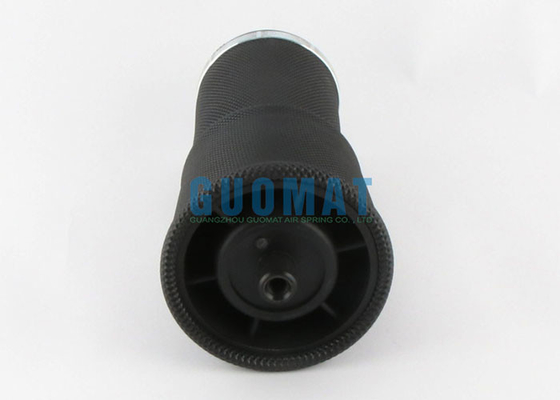

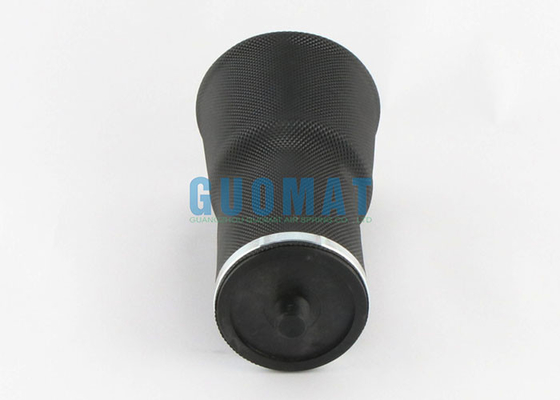

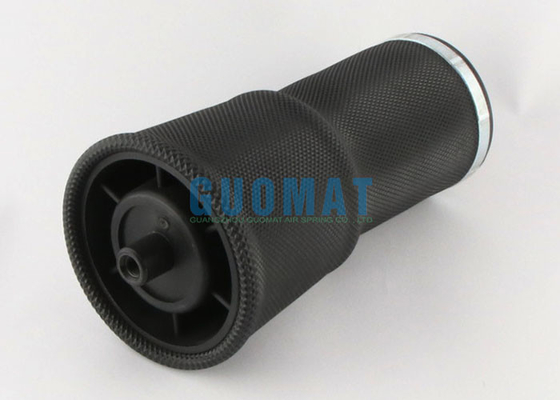

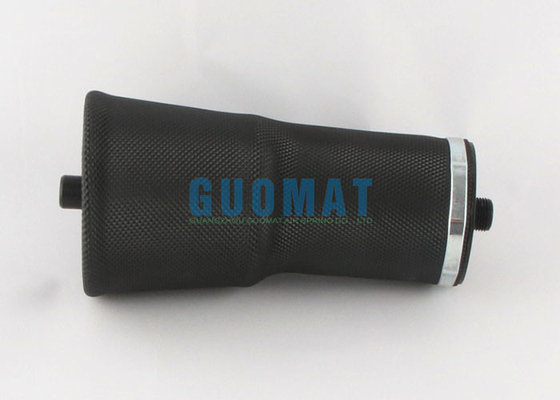

1S6-641 Goodyear Seat Air Bag Pictures

Truck Cabin Air Spring Shock Absorber Goodyear 1S6-641 Seat Air Bag 579-120-641 0Truck Cabin Air Spring Shock Absorber Goodyear 1S6-641 Seat Air Bag 579-120-641 1
