4982 N6 P01 Contitech Air Suspension Spring Heavy Truck Air Bag Shock Kits

Name: 4982 N6 P01 Contitech Air Suspension Spring Heavy Truck Air Bag Shock Kits
Brand: GUOMAT
SKU: 4982N6P01
Price: 89.9 USD
Availability: InStock
Rating: 5 (196 reviews)

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	4982N6P01

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$89.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Item:	Truck Air Suspension Assembly	Material:	Rubber+Steel
Warranty:	1 Year	Packing:	Customize/Neutral Package
Contitech:	4982 N6 P01	Type:	Suspension Spring
Position:	Truck Air Suspension	Color:	Black
High Light:	Heavy Truck Air Suspension Spring , 4982 N6 P01 Air Suspension Spring

4982 N6 P01 Contitech Air Suspension Spring Heavy Truck Air Bag Shock Kits

Product Description

Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs.Computer operated vents on the air springs, suspension sensors, and an onboard air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.

Item	Value
OEM.NO.	4982 N6 P01
Type	Air Spring
Warranty	12 Months
Truck Model	Heavy Duty Truck
Color	Black
Place of Origin	Guangzhou,China
Certification	ISO/TS16949:2009
Material	Rubber+Steel
Packing	Neutral Packing
MOQ	1 Pcs
Quality	High-Quality
Position	Auto/Truck parts
Application	Auto Suspension Systems

Contitech Part Number: 4982N6P01

Contitech Part Number: 4982 N6P01

Contitech Part Number: 4982 N6 P01

Contitech Part Number: 4982n6p01

Contitech Part Number: 4982 n6p01

Contitech Part Number: 4982 n6 p01

M12*1.5 40-----Nm
M16*1.5 50-----Nm
M18*2.0 270-----Nm

Contitech Truck Air Suspension Spring Assembly

Contitech No.	Cross Reference	Contitech No.	Cross Reference
884 N P04	French car 5.010.294.385.B	4183N P28	Mercedes A9423200557
4185 N P21	Mercedes A9423203021	4186N P23	Mercedes A9423201621
4186 N P25	Mercedes A9423200657	4187 N P23	Mercedes A9423201821
887 N P06	DAF 1794428	887N P13	DAF 1915956
887 N P08	DAF 1794427	887 N P09	DAF 1794425
889 N P01	DAF 1793521	4154 N P05	French car 5.010.239.252
4154 N P06	VOL-VO 21978510	4183 N P25	Mercedes A9423201321
4187N P26	Mercedes A9423200757	4390 N P21	Mercedes A9423200121
4390 N P22	Mercedes A9423200221	4390 N P23	Mercedes A9423200421
4390 N P24	Mercedes A9423200321	4391 N P21	Mercedes A9423200621
4390 N P22	Mercedes A9423200721	4420 N P01	VOL-VO 1076075
4560 N P02	VOL-VO 22058737	4561N P02	VOL-VO 22058738
4562 N P03	VOL-VO 22058739	4570 N P01	VOL-VO 2122749
4570 N P02	VOL-VO 22058741	4571N P02	VOL-VO 22056630
4580 N P01	VOL-VO 21451172	4580 N P02	VOL-VO 21451173
4582 N P01	VOL-VO 21451174	4713 N P02	VOL-VO 1076594
4718N P01	VOL-VO 1075363	4705 N1 P04	MAN 81.43600.6040

How to Install Truck Rubber Air Springs

First, press the upper end stop with the thumbs of both hands while pressing inward at four points, squeezing the middle of the airbag, and then down to about one hand's width.
Place the compressed air spring between the piston and the top plate, being sure to place the pocket logo lettering up.
Secure the lower port to the ring seat on the piston and the upper port to the ring seat under the top plate. During the entire installation process, protective measures must be taken to support the frame and axle to prevent the body from slipping and causing personal injury.
Charge the air spring so that its top and bottom ports are precisely positioned between the top plate and piston. The interface slides quickly into place.
Lower the vehicle and the air spring will automatically roll down the piston. Finally the installation is complete.

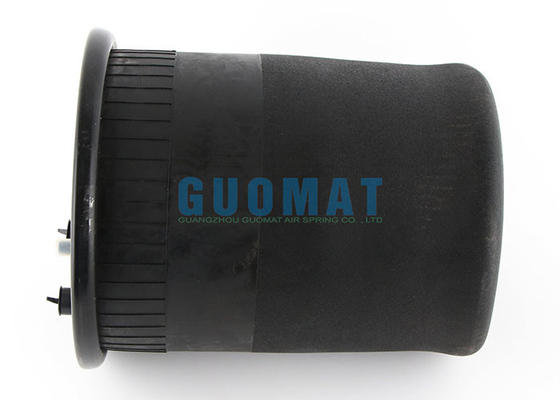

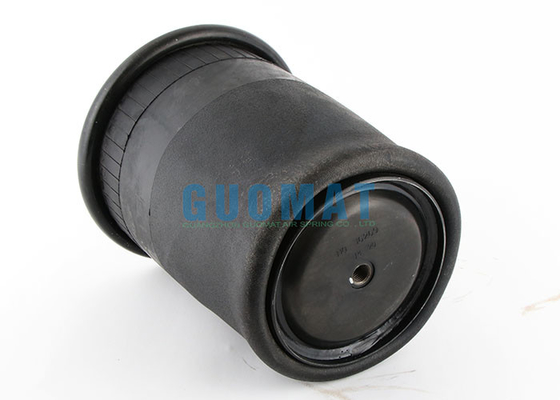

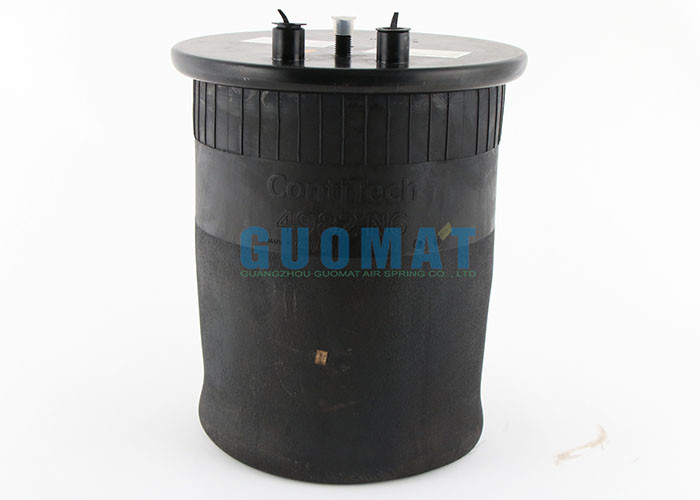

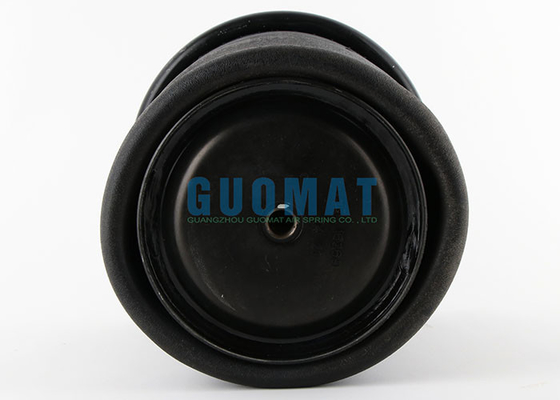

4982 N6 P01 Contitech Air Spring Real Pictures

4982 N6 P01 Contitech Air Suspension Spring Heavy Truck Air Bag Shock Kits 0
