| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W023587059 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $29.9-49.9/pc |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000pcs/week |
| Warranty: | 12 Months | Material: | Rubber + Steel |
|---|---|---|---|
| Brand: | GUOMAT | Stud Material: | Plastic |
| Firestone: | W02-358-7059 | Other Name: | Seat Air Spring |
| Weight: | 1.3 Lbs. | Installation: | Easy Installation |
| High Light: | Firestone Cabin Air Spring,W02-358-7059 Cabin Air Spring |
||

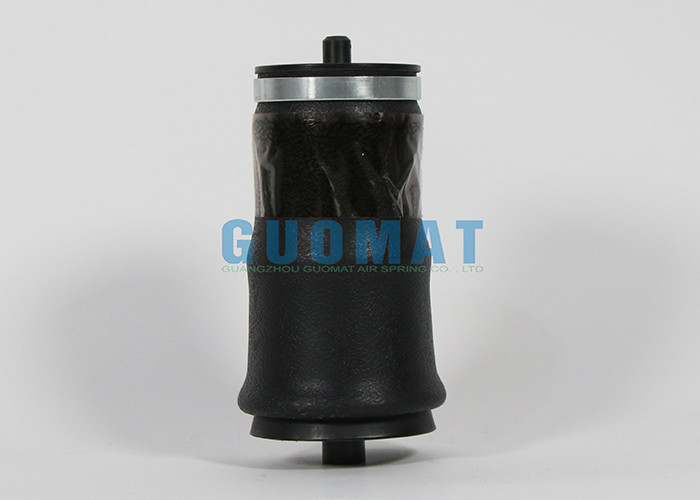

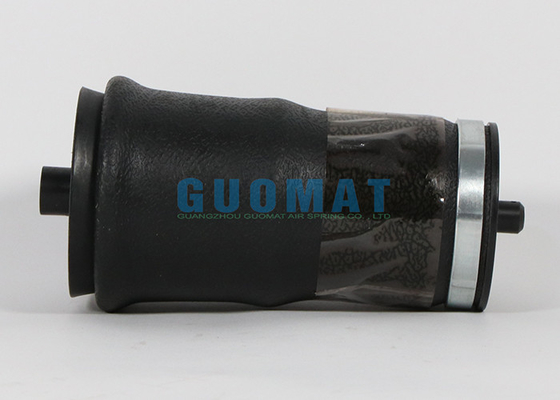

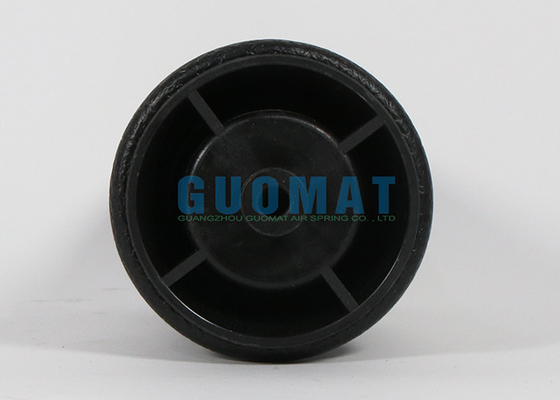

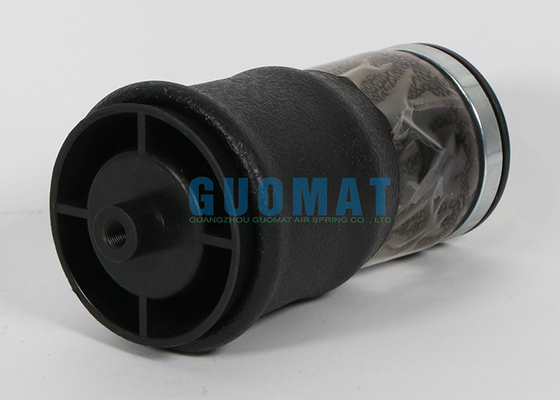

Firestone Cabin Air Spring Replacement W02-358-7059 Black Air Bag Assembly For Truck Seat
Product Description
Cab air springs are a vehicle suspension system that help reduce the impact of bumps and rough terrain on the cab of a commercial truck or other heavy vehicle. It usually consists of air springs or air cells designed to support the weight of the cabin and shock absorbers that help dampen any jolts or vibrations that occur when the vehicle is driven over rough surfaces, helping to provide a smoother ride for the driver and passengers , More comfortable riding experience.
Manufacturer: GUOMAT
Part Number: G7059
Availability: In Stock
Material: Plastic Parts
Quality: 100% Test
Type: Sleeve Type Air Spring
Function: Reduce Shock
Application: Auto Suspension Parts
Operation: Gas-Filled
Dimension: OEM/Original Size
Firestone W02-358-7059 Air Spring Technical Data
|
Spring Weight |
1.3 lbs. |
|
Compressed Height |
3.66" |
|
Extended Height |
11.70" |
|
Top Plate Width |
2.84" |
|
Piston Width |
3.13" |
|
Base Height |
3.13" |
|
Base Diameter |
3.20" |
|
BCR |
8.25" |
|
Blind Nut |
1/8NPT |
|
Clamp Ring |
With |
|
Rubber Bellow |
2.9UNINF |
|
Cap Number |
NBD-10409 (7042) |
|
Piston Number |
NBD-12708 (6896) |
Cross Reference Number
Firestone Air Spring W02-358-7059
Firestone Air Spring W02 358 7059
Firestone Air Spring W023587059
Firestone Air Spring WO2-358-7059
Firestone Air Spring WO2 358 7059
Firestone Air Spring WO23587059
National Seating 324663-01 (W02-N19-7059)
National Seating 328035-01 (W02-N19-7069)
National Seating 329666-01 (W02-N19-7084)
National Seating 324663-01 (WO2-N19-7059)
National Seating 328035-01 (WO2-N19-7069)
National Seating 329666-01 (WO2-N19-7084)
Why Choose Us?
1. High Stability
2. In situ installation
3. Ride Comfort
4. Safe and Durable
5. Effective Shock Absorption
6. Reduce the Sound
We Can Solve These Problems For You
1. Turning and leaning: turning to the car body to worry about potential safety hazards
2. The sound is annoying: the abnormal sound of the shock absorber is disturbing
3. Shock absorber oil leakage: affect the normal work of other parts of the suspension
4. Flat bottom: when the load and road conditions are not good, there will be bottom support
Quality Assurance
Adopt one-time casting process, strong air tightness, anti-leakage, high cortical density, anti-explosion, and durable. GUOMAT products have a one-year warranty period. If you have any questions during use, you can contact us at any time.
W023587059 Truck Cab Air Shock Absorber
