| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T9039 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Truck Air Ride Spring | Color: | Black |
|---|---|---|---|
| Emperature Range: | -30 To 70°C | Sample: | Available |
| Pressure Rating: | High | Warranty: | 1 Year |
| OEM No.: | W01-358-9039 | Condition: | Brand-New |
| High Light: | W01-358-9039 Air Spring,1T15M-0 Rubber Air Spring |
||
W01-358-9039 Firestone Airide Replacement Air Spring 1T15M-0 Rubber Bellow Air Pillow
Product Details
Truck air spring, also known as air bag or air suspension kit, is a specialized type of suspension system designed for use on trucks and other heavy vehicles. It involves the use of air-filled bags or springs mounted between the frame and axle that help absorb shock and vibration when driving over uneven terrain. Truck air springs can also be used to adjust the vehicle's ride height and improve its towing and towing capabilities, providing additional support and stability when carrying heavy loads.
GUOMAT 1T9039 Truck Suspension Air Spring Technical Data
Top Plate Diameter: Ø231mm
Combination Stud: 1/4-18NPTF,3/4-16UNC
Stud: 1/2-13UNC
The distance between Combination Stud and Stud: 140mm
Bead Plate Diameter: Ø231mm
Stud: 3/4-10UNC
Rubber Bellows Natural Outer Diameter: Ø240mm
Natural Height: 332mm
Refer Number
Firestone: W01-358-9039,W01 358 9039,W013589039
Firestone: WO1-358-9039,WO1 358 9039,WO13589039
Firestone Bellow No.: 1T15M-0
Contitech: 910-10P311,9 10-10 P311
Goodyear: 1R12-095,1R 12-095,1R12 095
Goodyear Bellow No.: 566243067,566-24-3-067,566 24 3 067
Taurus: AS500-9039,AS 500-9039
Airtech: 134362,39039C
Granning: 17360-01
Triangle: 8311
Dayto: 352-9039
Meritor: 21216135
Hendrickson: S2064/S-11650
Watso&Chlin: AS-0012
Ridewell: 1013589039C
VOL-VO: 85101153,85 101 153
1T15M-0 Firestone Air Bellows
|
Bellow No. |
Part No. |
Weight(lbs.) |
Replaces |
|
1T15M-0 |
W01-358-8961 |
10.1 |
Reyco 23377-01 |
|
1T15M-0 |
W01-358-8963 |
13.2 |
Ridewell 1003588963C |
|
1T15M-0 |
W01-358-8964 |
11.6 |
Reyco 21598-01 |
|
1T15M-0 |
W01-358-8971 |
10.1 |
Hendrickson 59484-2 |
|
1T15M-0 |
W01-358-8972 |
11.2 |
Hendrickson 59601-2 |
|
1T15M-0 |
W01-358-8976 |
11.1 |
Reyco 21055-01 |
|
1T15M-0 |
W01-358-8986 |
11.5 |
Ridewell 1003588986C |
|
1T15M-0 |
W01-358-9029 |
11.3 |
Ridewell 1003589029C |
|
1T15M-0 |
W01-358-9031 |
13.0 |
Peerless 0550-00051 |
|
1T15M-0 |
W01-358-9033 |
13.4 |
Holland(Neway)90557012 |
|
1T15M-0 |
W01-358-9036 |
13.4 |
Willmar |
|
1T15M-0 |
W01-358-9077 |
13.2 |
Fruehauf UCB-44531 |
|
1T15M-0 |
W01-358-9308 |
13.0 |
Reyco 17360-01 |
|
1T15M-0 |
W01-358-9332 |
11.3 |
Reyco 20074-01 |
|
1T15M-0 |
W01-358-9333 |
12.8 |
Reyco 20437-01 |
|
1T15M-0 |
W01-358-9334 |
12.9 |
Ridewell 1003589334C |
|
1T15M-0 |
W01-358-9505 |
10.4 |
Holland(Neway) 90557312 |

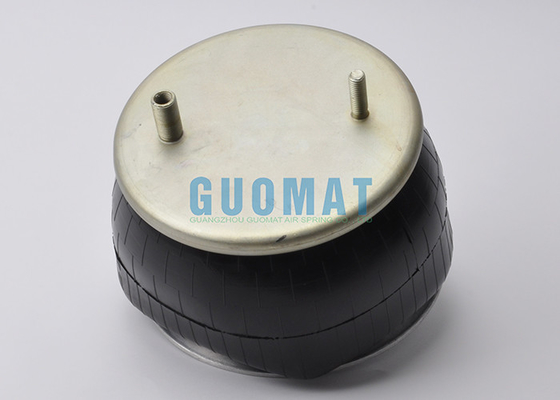

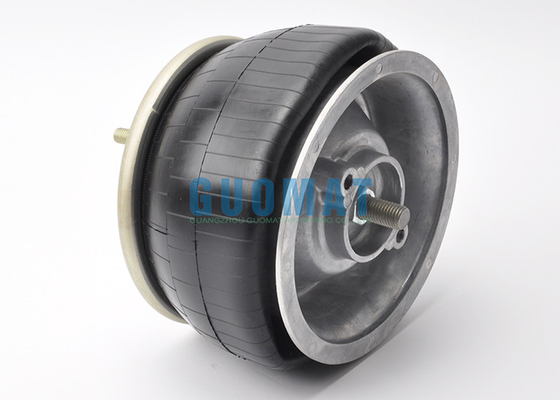

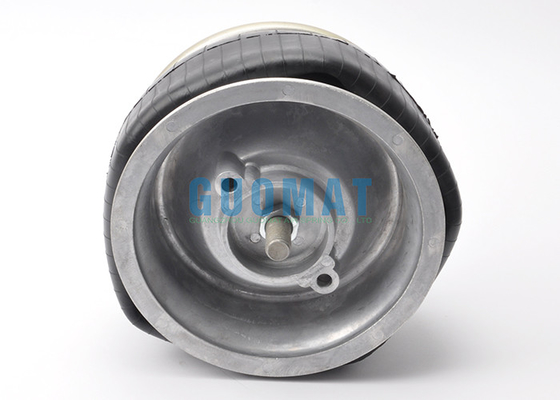

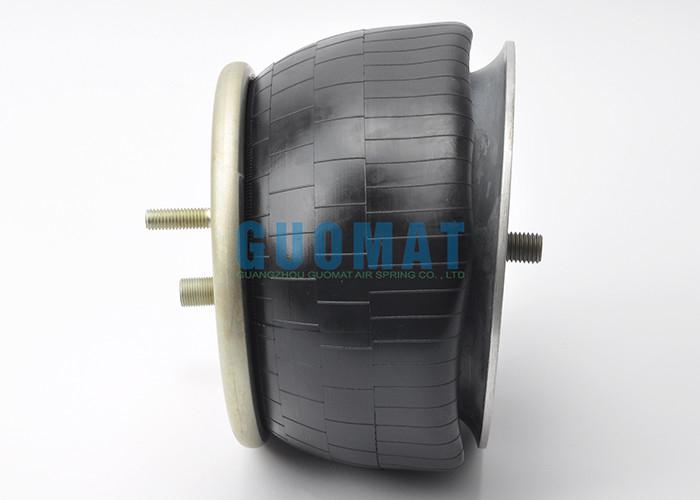

The Real Pictures: 1T9039 Truck Air Spring
