| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T8474 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Sample: | Available | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | Brand-New | Material: | Rubber Bellow And Aluminum Cover |
| Car Model: | Truck, Semi-Trailer, Bus, Other Commercial Vehicle | Position: | Rear/Front |
| Operation: | Gas-Filled | Style: | Rolling Lobe Air Bags |
| High Light: | Contitech Air Suspension Assembly,6608NP01 Contitech Air Suspension Assembly,1R10-704 Air Suspension Assembly |
||
6608NP01 Contitech Air Suspension Assembly 1R10-704 Goodyear Air Bag For Truck/Trailer
Product Details
|
Type |
Rolling Lobe Air Spring |
Brand |
GUOMAT |
|
Rubber Type |
Natural Rubber |
Warranty |
1Year |
|
Material |
Metal,Rubber |
Delivery Speed |
Fast |
Original Equipment Manufacturer Number
Firestone Part Number: W01-M58-8474,W01 M58 8474,W01M588474
Firestone Part Number: WO1-M58-8474,WO1 M58 8474,WO1M588474
Firestone Series: 1T15UR
Contitech Part Number: 6608NP01,6608 NP 01
Goodyear Part Number: 1R10-704,1R 10-704,1R10 704
Phoenix Part Number: 1DF17B-1,1DF 17B-1
Airtech: 132902,36416K
Airfren: 20.6608.1CM
Granning: 92500
DT: 2.62177
Templin: 04.020.6201.050
Templin: 04.060.6206.050
WABCO: 9518110020
WABCO: 951 811 002 0
Meritor: MLF7151
VOL-VO: 20582215,20 582 215
VOL-VO: 20531985,20 531 985
VOL-VO: 20456152,20 456 152
VOL-VO: 20374510,20 374 510
VOL-VO: 3171693,3 171 693
VOL-VO: 1076416,1 076 416
VOL-VO: 1075891,1 075 891
Technical Data
Cover Plate Diameter: Ø231mm
Combo Stud: M16X1.5,M24X1.5
Stud: M14X2.0
Piston Height: 161mm
Max. Height: 475mm
Min. Height: 190mm
1T15UR Firestone Series Truck Air Spring
|
Series |
Model No. |
Weight(KG) |
Piston Material |
Refer No. |
|
1T15UR |
W01-M58-5797 |
4.97 |
Plastic |
SCANIA 1434930 SCANIA 1932592 SCANIA 2617884 |
|
1T15UR |
W01-M58-5785 |
7.64 |
Steel |
VDL BUS 1153935 |
|
1T15UR |
W01-M58-5786 |
7.66 |
Steel |
VDL BUS 1141525 VDL BUS 41141525 VDL BUS1154761 VDL BUS 41154761 |
|
1T15UR |
W01-M58-8473 |
5.91 |
Steel |
VOL-VO 20582213 VOL-VO 21961448 VOL-VO 1076420 VOL-VO 20531989 VOL-VO 20456160 VOL-VO 20374512 |
|
1T15UR |
W01-M58-8470 |
5.22 |
Steel |
MERCEDES A9603200321 |
|
1T15UR |
W01-M58-8545 |
6.00 |
Steel |
VOL-VO 22058741 |
|
1T15UR |
W01-M58-8546 |
5.90 |
Steel |
VOL-VO 22056630 VOL-VO 21224750 |
How to Maintain Truck Air Spring
First, it is very important to keep your air spring inflated to the recommended minimum air pressure. Low air pressure can cause the suspension system to bottom out, causing damage to the air springs and other suspension components.
Second, it is important to keep an eye on the life of your air springs and replace them when necessary. Air spring life can be tracked by the date the truck or trailer was purchased, when the air spring was replaced, or by periodically inspecting the air spring for obvious signs of wear or damage.
In addition, it is recommended to regularly check the air spring for leaks or damage. Leaks or damage can cause the air spring to lose air pressure, causing the problems described above. Additionally, it is important to keep your air springs clean and free of debris and other contaminants to ensure smooth operation.

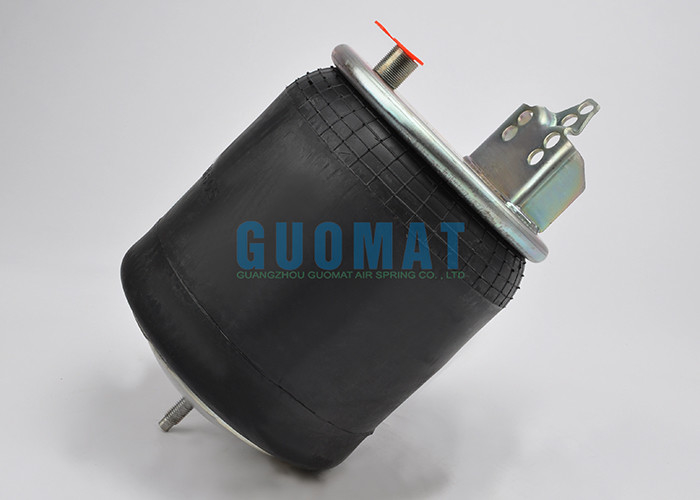

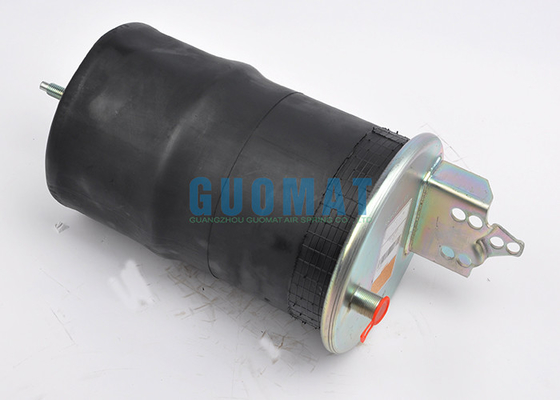

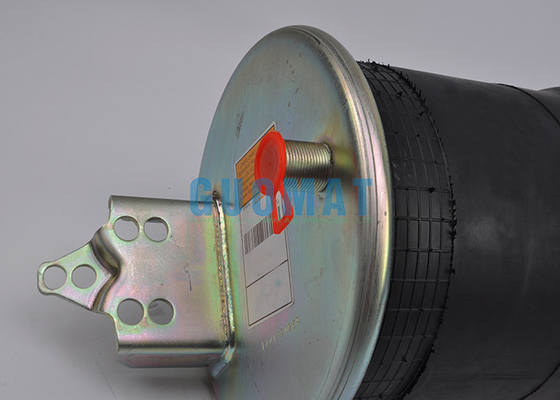

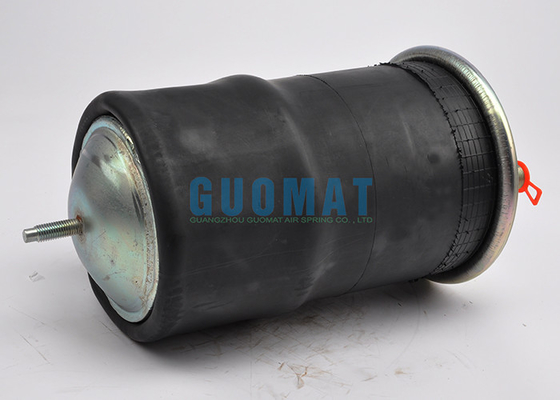

GUOMAT 1T8474 Real Pictures
