Place of Origin: | GuangDong, China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 1T6047 |
Minimum Order Quantity: | 6pcs |
---|---|
Price: | $79.9-99.9/pc |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000pcs/week |
Product Name: | Truck Air Ride Spring | Sample: | Available |
---|---|---|---|
Warranty: | 1 Year | Material: | Rubber+Steel |
MOQ: | 10 Pcs | Contitech: | 4884N1P06 |
Position: | Truck Air Suspension | MAN: | 81.43600.6035 |
High Light: | 4884N1P06/4884 Contitech Air Spring,81436006035 Contitech Air Spring |

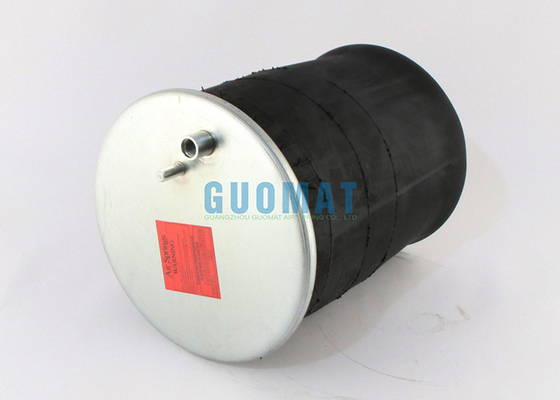

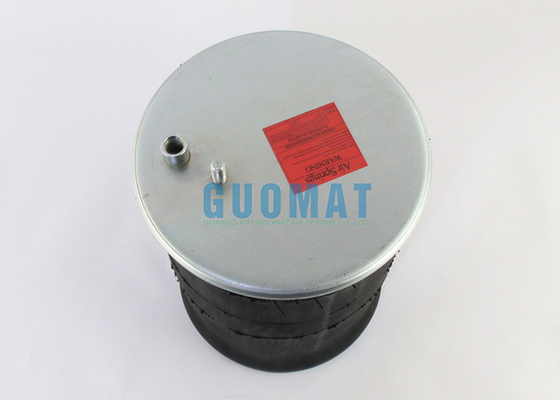

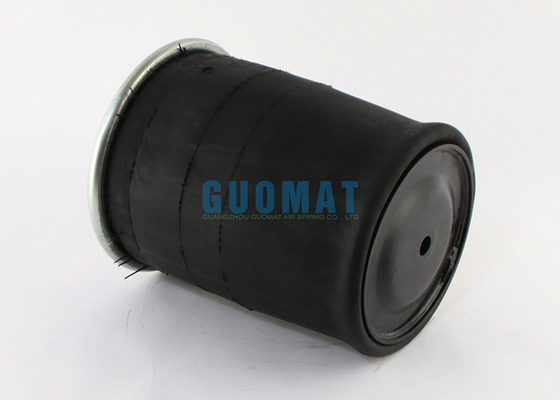

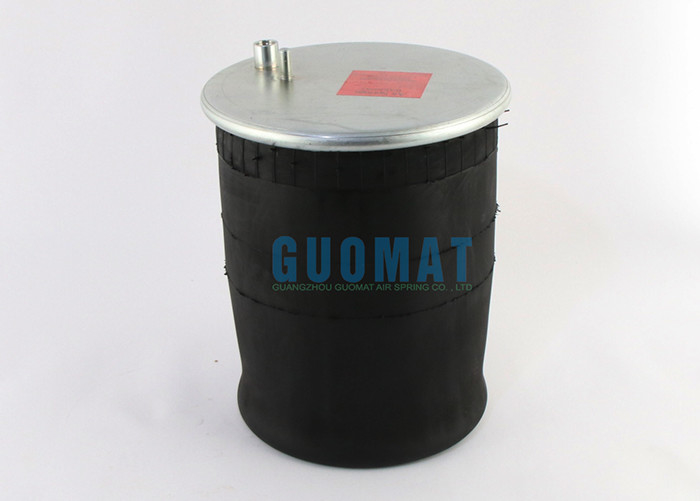

Contitech Air Spring 4884N1P06/4884 N1 P06 Truck Suspension Shock Absorber MAN 81436006035
Product Details
Truck suspension air springs are a type of suspension system that uses rubber bags that are filled with air to support a vehicle's weight and absorb shocks and vibration from the road. They are commonly used on trucks and other heavy-duty vehicles to provide a smoother and more comfortable ride while also improving handling and stability. Air springs can also be adjusted to change the height and stiffness of the suspension, making them a versatile and flexible solution for a wide range of vehicle applications.
OEM Number
OEM Contitech: 4884N1P06
OEM Contitech: 4884 N1P06
OEM Contitech: 4884 N1 P06
OEM Contitech: 4884n1p06
OEM Airtech: 34884K
OEM Blacktech: RML 75995 C
OEM Keva: 54884
OEM Connect: MD 14884K
OEM Vibracoustic: V1DF19B-1
OEM Vibracoustic: V1 DF 19 B-1
OEM Airfren: 2048846CM
OEM Airfren: 20.4884.6CM
OEM Airfren: 20 4884 6CM
OEM DT: 3.66423
OEM Templin: 04.010.6200.080
OEM Templin: 04 010 6200 080
OEM MAN: 81.43600.6035
OEM MAN: 81436006035
OEM MAN: 81 43600 6035
GUOMAT 1T6047 Rubber Truck Air Spring Technical Data
Top Cover Plate Diameter | 262mm |
Air Inlet | M16X1.5 |
Bolt/Stud | M12X1.5 |
Distance Between Air Inlet and Bolt/Stud | 84mm |
Base Width | 262mm |
Bolt/Stud on the Base | M18 |
Rubber Bellow Natural Diameter | 270mm |
Piston Width | 200mm |
Piston Height | 130mm |
For MAN Truck Suspension Air Shock
MAN | CONTITECH |
81.43601.0152 | 4884N1P01 |
81.43601.0151 | 4882N1P01 |
81.4301.0153 | 4883N1P01 |
81.43600.6044 | 4885N1P02 |
81.43600.6035 | 4884N1P06 |
81.43600.6037 | 4883N1P06 |
81.43601.6036 | 4882N1P05 |
81.43600.6046 | 4886NP01 |
Installing Rolling Lobe Air Spring with Top Plate
