1/4" Offset Port Firestone Rolling Lobe Type Air Spring W01-358-9206 For Truck Trailer Air Suspension

1/4" Offset Port Firestone Rolling Lobe Type Air Spring W01-358-9206 For Truck Trailer Air Suspension

Product Details

GUOMAT 1T9206 truck air spring refers to Firestone W01-358-9206, the diameter of the upper cover is 11.31 inches, four threaded holes, the center distance between the threaded holes is 6.25 inches, and the distance between the threaded holes and the air hole is 3.12 inches. The diameter of the base is 11.81 inches, the number of threaded holes is 4, and the center distance between the threaded holes is 7.88 inches. The outer diameter of the air spring is 10.62 inches, the height of the base is 3.74 inches, the maximum height is 17.00 inches, and the minimum height is 5.30 inches.

Cross Reference Numbers

FIRESTONE # W01-358-9206

FIRESTONE # W013589206

FIRESTONE # W01 358 9206

FIRESTONE # WO1-358-9206

FIRESTONE # WO13589206

FIRESTONE # WO1 358 9206

FIRESTONE #1T19L5

FIRESTONE #1T 19L5

MPN #W013589206

Features of Truck Air Springs
Air springs, also known as truck air springs or air assist springs, are components used in the suspension systems of commercial vehicles such as trucks and buses. Here are some features of truck air springs:

1. Adjustable air pressure: The truck air spring can adjust its resistance by changing the air pressure. This balances the stiffness and softness of the suspension system, contributing to stability and ride comfort.
2. Reduced burden: Air springs help to reduce the burden on cargo, driver and passengers. By absorbing shocks and vibrations, they improve the overall comfort of the vehicle.
3. Consistent Vehicle Height: Air springs help maintain a consistent vehicle height by regulating air pressure. This is especially useful in situations where the vehicle needs to be leveled or carry heavy loads.
4. Assisting starting on slopes: Air springs can assist the vehicle starting on slopes by providing additional propulsion. This is especially helpful in challenging driving conditions.
5. Reduced weight: By using air springs, the number of parts in the suspension system can be reduced, helping to reduce the weight of the vehicle. This can have a positive impact on fuel efficiency and overall performance.
6. High Ride Comfort: Truck air springs provide high ride comfort by absorbing vibrations and shocks. They help maintain balance while adjusting the tilt of the vehicle, improving the overall comfort of the ride.

For French car Truck Firestone Air Spring

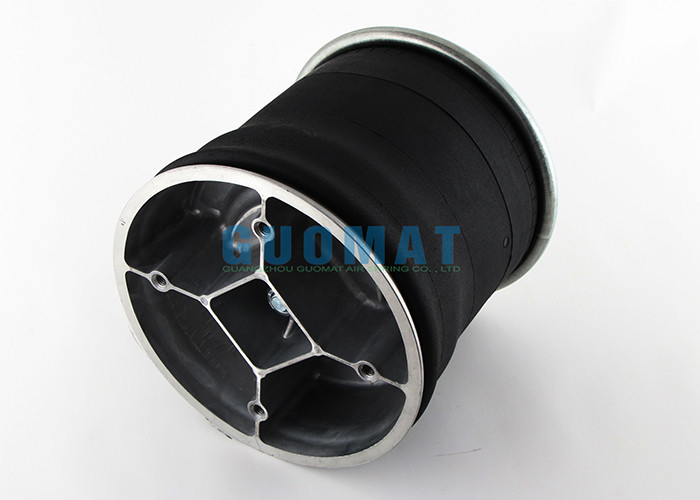

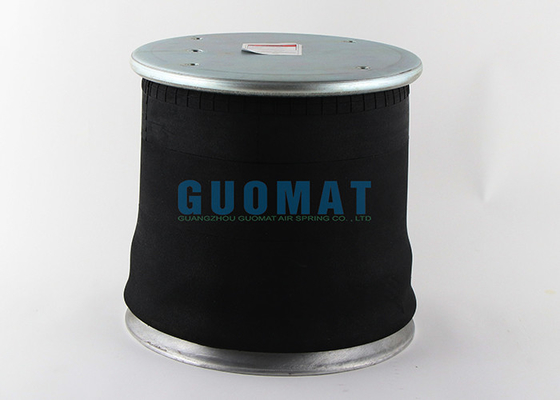

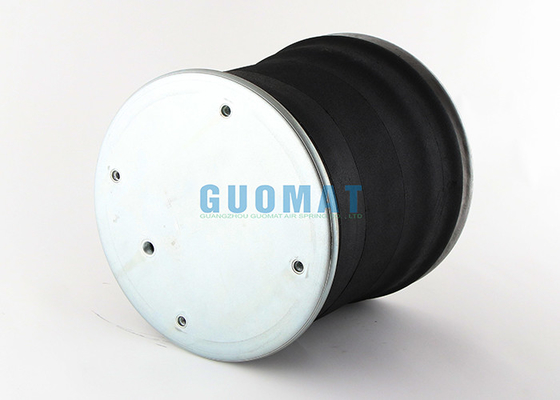

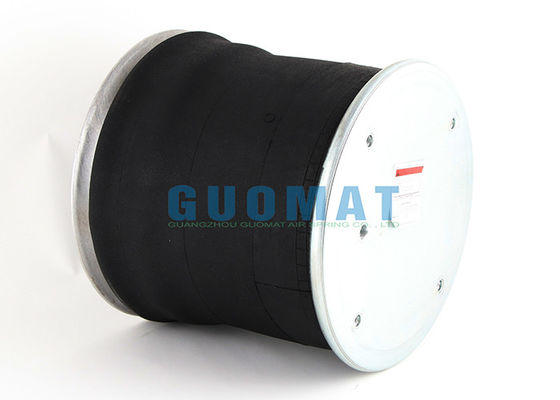

Image Display
