Firestone Airide Replacement Air Spring W01-358-9287 1T15 Air Bellow For Hendrickson Truck

Firestone Airide Replacement Air Spring W01-358-9287 1T15 Air Bellow For Hendrickson Truck

Product Details

GUOMAT 1T9287 is a high quality air spring designed for heavy duty trucks and trailers. . This air spring is designed to provide enhanced performance and ride comfort, making it ideal for heavy-duty applications.

W01-358-9287 Firestone Air Spring

W01 358 9287 Firestone Air Spring

W013589287 Firestone Air Spring

WO1-358-9287 Firestone Air Spring

WO1 358 9287 Firestone Air Spring

WO13589287 Firestone Air Spring

1R12-424 Goodyear Air Spring

1R 12-424 Goodyear Air Spring

1R12 424 Goodyear Air Spring

566243097 Goodyear Air Bellow

566 24 3 097 Goodyear Air Bellow

566-24-3-097 Goodyear Air Bellow

1S12-027 Goodyear Air Spring

1S 12-027 Goodyear Air Spring

533241001 Goodyear Air Bellow

533 24 1 001 Goodyear Air Bellow

533-24-1-001 Goodyear Air Bellow

566241012 Goodyear Air Bellow

566 24 1 012 Goodyear Air Bellow

566-24-1-012 Goodyear Air Bellow

566241240 Goodyear Air Bellow

566 24 1 240 Goodyear Air Bellow

566-24-1-240 Goodyear Air Bellow

566243077 Goodyear Air Bellow

566 24 3 077 Goodyear Air Bellow

566-24-3-077 Goodyear Air Bellow

566243225 Goodyear Air Bellow

566 24 3 225 Goodyear Air Bellow

566-24-3-225 Goodyear Air Bellow

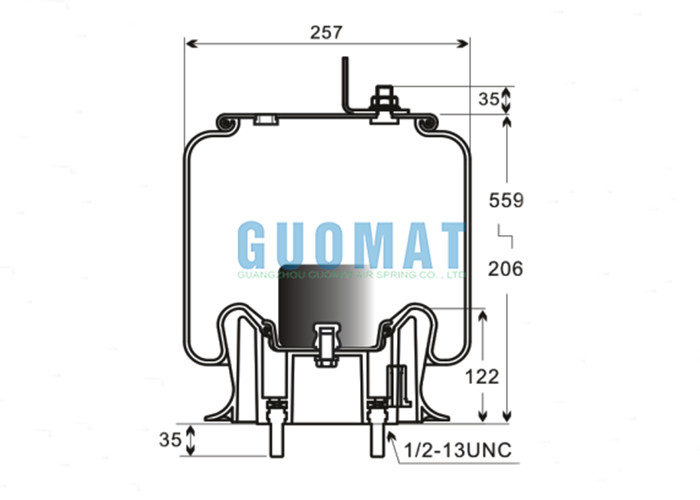

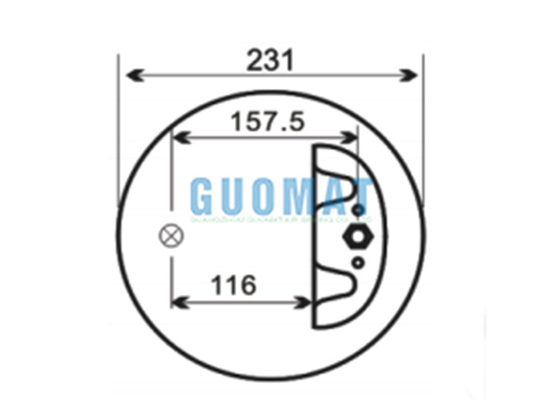

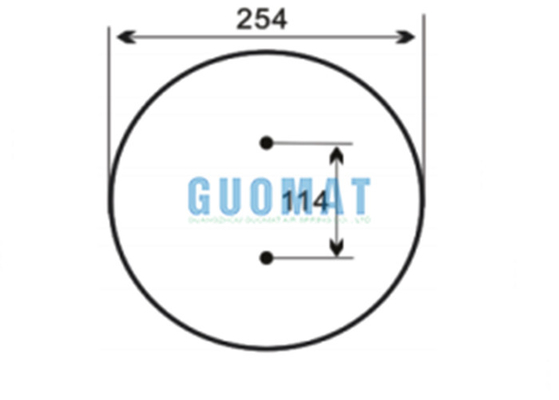

Here are some technical details about the Firestone W01-358-9287 Air Spring:
Order Number : W01-358-9287
Bellows #: 1T15M-8
Assembly Weight: 18.5 lbs
Design Height: 12.5-13.5 inches
Extended Height: 22.00 inches
Diameter: 10-1/8 in (25.73 cm)
Air Inlet: 1/4 in NPT

How to order ?

Step 1, please tell us what model and quantity you need;

Step 2,then we will make a PI for you to confirm the order details;

Step 3,when we confirmed everything ,you can arrange the payment;

Step 4,finally we deliver the goods within the stipulated time.

After Service and Packing

If you are interested in our products , please Send your Inquiry Details in the Below, Click "Send" Now!!

The GUOMAT 1T9287 Truck Air Spring Real Picture
