| Place of Origin: | GuangDong, China |
| Brand Name: | CONTITECH |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T9781 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Suspension Bellow, Air Spring | Rubber Type: | Natural Rubber |
|---|---|---|---|
| Warranty: | 1 Year | Material: | Metal And Rubber |
| Color: | Black | Condition: | 100% Brand-new |
| Position: | Rear | Goodyear: | 1R12-603 |
| High Light: | 910-16A382 Contitech Air Bag Spring,1R12-603 Air Bag Spring,1R12-603 Goodyear Truck Air Springs |
||
1R12-603 Goodyear Trucks Suspension Parts 910-16A382 Contitech Air Bag Spring
Product Details
Truck suspension air spring, also known as an airbag or air helper spring, is a component of a vehicle's suspension system that uses compressed air to support the weight of the vehicle and provide a smoother ride. It is typically installed between the frame of the vehicle and the axle or suspension components. The air spring can be adjusted to different pressures to accommodate varying loads and road conditions.

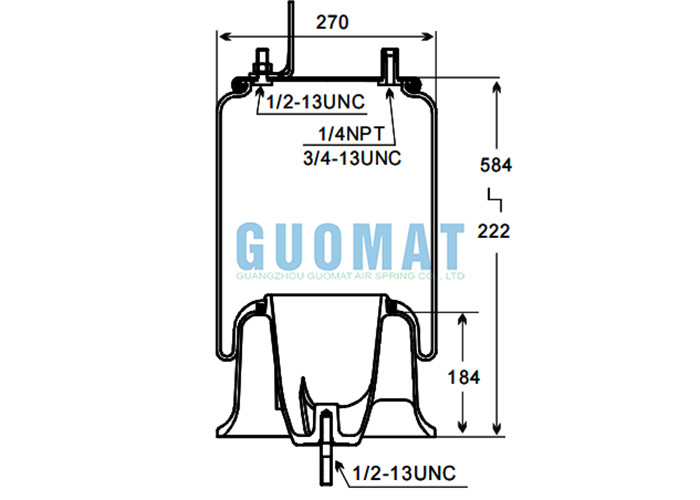

Technical Data
The diameter of the top cover is 231mm
The specification of the combo stud is 1/4NPT,3/4-13UNC
Bolt/Stud: 1/2-13UNC
Base width is 268mm
Base height is 184mm
The bolt specification of the base is 1/2-13UNC
Natural outer diameter: 270mm
Maximum height: 584mm
Minimum height: 222mm
OEM Numbers
AUTOMANN AB1DF23-9781
CONTITECH 910-16A382
CONTITECH 9 10-16 A 382
CONTITECH 64266
FIRESTONE W01-358-9781
FIRESTONE W01 358 9781
FIRESTONE W013589781
FIRESTONE WO1-358-9781
FIRESTONE WO1 358 9781
FIRESTONE WO13589781
GOODYEAR 1R12-603
GOODYEAR 1R 12-603
GOODYEAR 1R12603
GOODYEAR 566-24-3-108
GOODYEAR 566 24 3 108
GOODYEAR 566243108
GOODYEAR 566-20-7-322
GOODYEAR 566 20 7 322
GOODYEAR 566207322
FIRESTONE 9781
FLEETITE 1R12-1064
FREIFGTLINER 16-19465-000
FREIFGTLINER 6813200017
FREIFGTLINER A16-14004-000
FREIFGTLINER A16-14004-001
SPRINGRIDE 1R12-1082
TRIANGLE 8382
TRP AS9780A
Our Service
1. OEM manufacturing is welcome: products, packaging...
2. Sample orders are available. If you place a large order after receiving the sample, we will refund you the sample fee as a discount.
3. We will reply to your inquiry within 24 hours.
4. After sending out, we will track the product for you every two days until you receive the product. When you receive the goods, test it and give me feedback. If you have any questions about the problem, please contact us and we will provide you with a solution.
Freightliner Truck Suspension Air Spring
| Goodyear P/N | Goodyear B/N | Freightliner P/N |
| 1R12-303 | 566-34-3-108 | 16-13810-000 |
| 1R12-303 | 566-34-3-108 | 16-13810-001 |
| 1R12-303 | 566-34-3-108 | 16-13810-002 |
| 1R12-303 | 566-34-3-108 | 16-14377-000 |
| 1R12-303 | 566-34-3-108 | 16-15595-000 |
| 1R12-303 | 566-34-3-108 | 16-15595-001 |
| 1R12-303 | 566-34-3-108 | 16-15595-002 |
| 1R12-303 | 566-34-3-108 | 16-16825-000 |
| 1R12-603 | 566-34-3-108 | 16-19465-000 |
| 1R12-303 | 566-34-3-108 | 16-19468-000 |
| 1R12-303 | 566-34-3-108 | 18-18335-000 |
| 1R12-303 | 566-34-3-108 | 18-18335-001 |
| 1R12-603 | 566-34-3-108 | 6813200017 |
| 1R12-603 | 566-34-3-108 | A16-14004-00 |

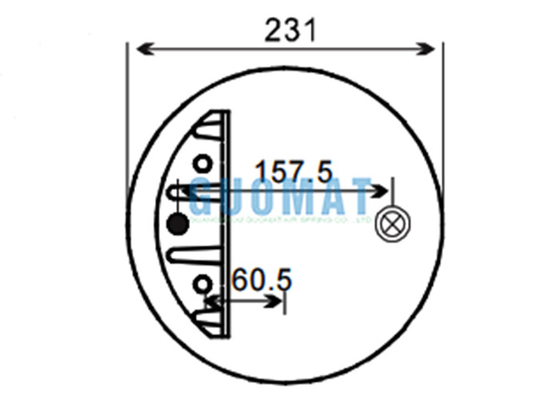

The Drawing of Bottom
