| Place of Origin: | GuangDong, China |
| Brand Name: | CONTITECH |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T4838NP01 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Item Name: | Truck Air Spring | Material: | Metal And Rubber |
|---|---|---|---|
| Color: | Black | Condition: | 100% Brand-New |
| Application: | Auto Suspension System | Warranty: | 12 Months |
| Car Model: | Mercedes Benz | Original Number: | 4838NP01 |
| High Light: | 4838 NP01 Contitech Air Spring,Mercedes Benz Contitech Air Spring,A9463200421 Contitech Air Spring |
||

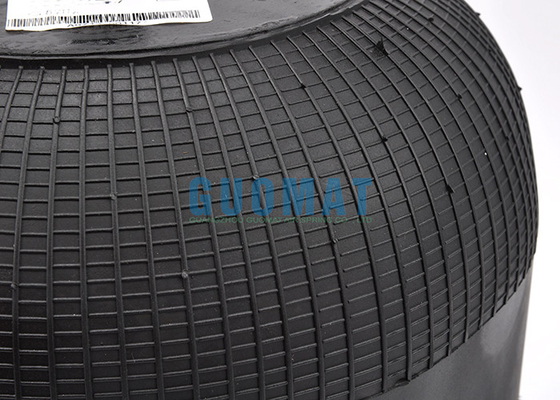

4838 NP01 Contitech Air Spring Mercedes Benz Suspension Air Balloon A9463200421
Product Details
|
Product Name |
Truck Air Spring |
|
Brand |
GUOMAT |
|
Warranty |
1 Year |
|
Material |
Rubber+Steel |
|
Price Condition |
FOB China,EXW Guangzhou |
|
Package Standard |
Packing or Pallet |
|
MOQ |
10pcs |
|
Payment Term |
T/T&L/C & West Union |
OEM Number
Contitech Part Number: 4838NP01
Contitech Part Number: 4838 NP01
Contitech Part Number: 4838 NP 01
Airtech: 34838-01K
Airtech: 34838-22K
DT: 4.80484
Peautomotive: 084.115-11A
Peautomotive: 084.115-71A
Templin: 04.060.6006.970
Mercedes Benz: A9463200421
Mercedes Benz: A 9463200421
Mercedes Benz: A 946 320 0421
Mercedes Benz: A 946 320 04 21

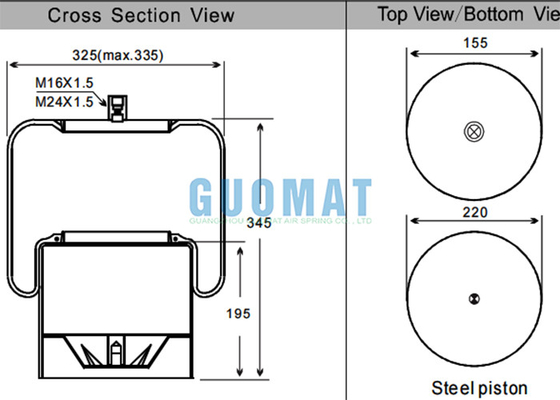

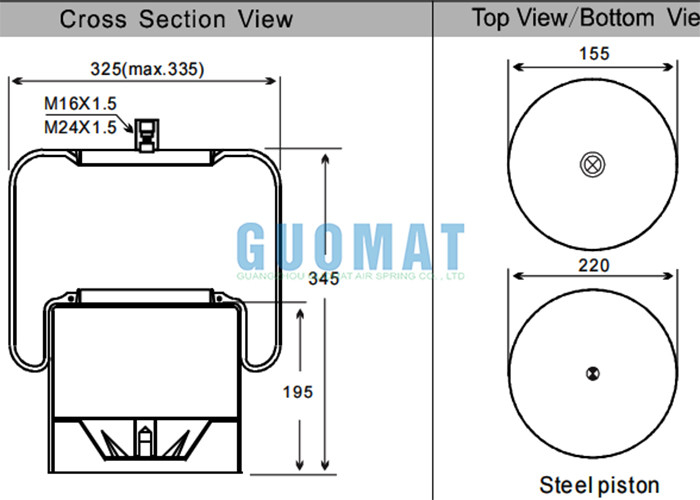

Technical Data
Top cover plate diameter: 155mm
Base piston diameter: 220mm
The rubber bellow max.outer diameter: 335mm
The rubber bellow natural outer diameter: 325mm
Combo stud: M16X1.5/M24X1.5
Base piston height: 195mm
Natural height: 345mm
Piston material: Steel
The truck airbag assembly consists of an airbag upper cover, a rubber buffer block, a rubber bellow, and a base.
During the driving of the vehicle, the vertical load and impact load are borne by the air bag. As the load changes, the compressed air pressure in the air bag changes accordingly, and the stiffness of the air bag also changes accordingly, so it has ideal variable stiffness characteristics, which greatly improves Improves the ride comfort and stability of the truck.
Reasons to Choose Us
1. Various types of truck air springs can meet your needs
2.Competitive factory price
3. Made of high quality materials and strong durability
4. In stock, fast delivery
5. Excellent pre-sales and after-sales services
Other Truck Ar Springs For Mercedes Benz
| Mercedes | Contitech | Mercedes | Contitech |
| 942 320 01 17 | 4757 N P21 | 942 320 14 21 | 4183 N P28 |
| 942 320 01 21 | 4390 N P21 | 942 320 16 21 | 4186 N P23 |
| 942 320 02 17 | 4759 N P21 | 942 320 17 21 | 4186 N P25 |
| 942 320 02 21 | 4390 N P22 | 942 320 18 21 | 4187 N P23 |
| 942 320 03 21 | 4390 N P24 | 942 320 19 21 | 4187 N P26 |
| 942 320 04 21 | 4390 N P23 | 942 320 2221 | 4183NP25 |
| 942 320 05 57 | 4183 N P28 | 942 320 2321 | 4183NP28 |
| 942 320 06 17 | 4758 N P23 | 942 320 2421 | 4186NP23 |
| 942 320 06 21 | 4391 N P21 | 942 320 2521 | 4186NP25 |
| 942 320 06 57 | 4186 N P25 | 942 320 2621 | 4187NP23 |
| 942 320 07 21 | 4391 N P22 | 942 320 2721 | 4187NP26 |
| 942 320 07 57 | 4187 N P26 | 942 320 2821 | 4390NP21 |
| 942 320 10 17 | 4737 N P26 | 942 320 2921 | 4390NP22 |
| 942 320 13 21 | 4183 N P25 | 942 320 3021 | 4185NP21 |
