| Place of Origin: | CHINA |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T6345 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 3-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Air Suspension | Color: | Black |
|---|---|---|---|
| Packaging: | Carton | Material: | Rubber And Steel |
| MOQ: | 1 Pc | Warranty: | 12 Months |
| Firestone: | W01-M58-6345 | Phoenix: | 1 D 28 A-2 |
| High Light: | W01-M58-6345 Suspension Air Spring,3.228.0002.00 Suspension Air Spring,Trailer Suspension Air Spring |
||

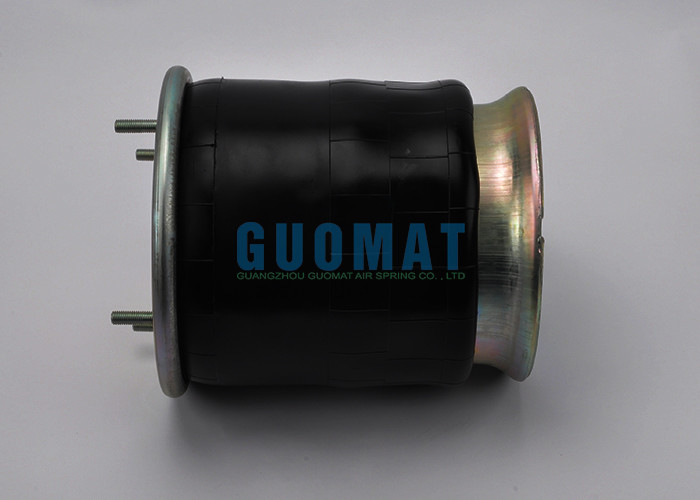

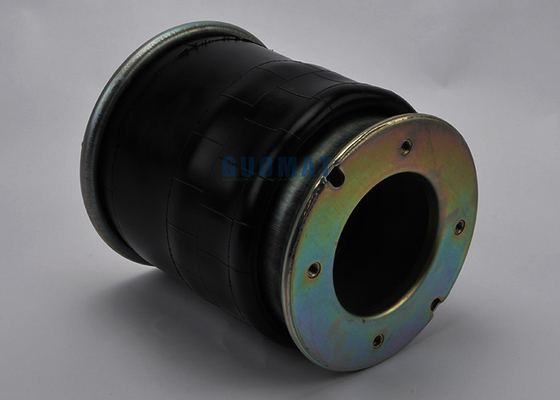

Trailer Suspension Air Spring W01-M58-6345 Firestone 1T19L Series For SAF HOLLAND 3.228.0002.00
Product Description
The Firestone W01-M58-6345 is a truck air spring manufactured by Firestone. It is used in truck and trailer suspensions for various applications. The W01-M58-6345 air spring is compatible with different truck models and suspension systems.
FIRESTONE W01-M58-6345 / W01 M58 6345 / W01M586345
FIRESTONE WO1-M58-6345 / WO1 M58 6345 / WO1M586345
CONTITECH 810MB / 810 MB
GOODYEAR 1R14-716 / 1R 14-716 / 1R14716
PHOENIX 1D28A-2 / 1 D 28 A-2
Wewelerl US 07337
Wewelerl US 00622
Wewelerl US 87413
Tec 506243/01
Granning 15635
ROR/Meritor 21215632
ROR/Meritor 21208082
SAF 2.229.0002.00
Hendrickson 506 243
VOL-VO 1080707
DAF 1384273

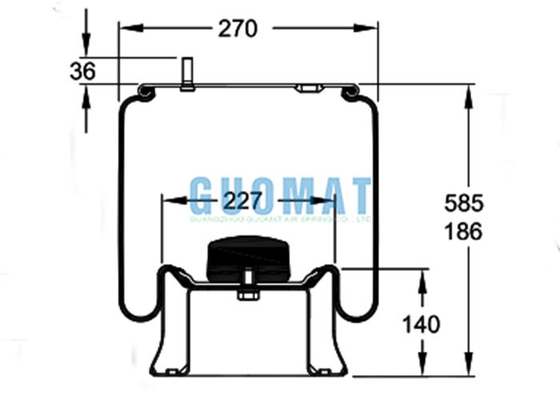

Technical Data
The diameter of the top cover is 289 mm. The top cover has four screws and one air inlet. The screw specification is M12X1.75 and the air inlet specification is M22X1.5. The center distance between the screws is 159mm. The distance between the holes is 79mm.
The width of the base is 260 mm. The base has four threaded holes. The size of the threaded holes is M12X1.75. The center distance between the threaded holes is 200 mm. Base height is 140mm.
The natural outer diameter is 320mm, the maximum height is 550mm, and the minimum height is 184mm.
Firestone W01-M58-6345
Firestone Series 1T19L
SAF HOLLAND 3.228.0002.00
SAF HOLLAND 2.228.2602.00
SAF HOLLAND 2.228.2402.00
SAF HOLLAND 2.228.2202.00
ROR 2120 8082/2121 5632
1T19L Firestone Rubber Bellow
W01-M58-9910
French car 5.000.815.749
French car 5.010.211.724
W01-M58-5520
French car 5.010.600.328
French car 21 978 494
French car 51 978 504
French car 7.421.978.494
VOL-VO 20 726 768
W01-M58-5521
French car 5.010.557.355
French car 57.422.025.556
VOL-VO 20 722 412
VOL-VO 22 025 568
W01-M58-5522
French car 5.001.832.067
W01-M58-8786
French car 5.010.294.307
W01-M58-6223
WEWELER US 04030F/US 04030FD
WEWELER US 04030P
WEWELER US 04030G
MERCEDES A 946 328 15 01
SCHMITZ 017 924
SCHMITZ 128 8087
JOST 2010501501
W01-M58-1254
SCANIA 1903608
SCANIA 1944314
SCANIA 2198915
SCANIA 2808412
W01-M58-8535
SCANIA 1903608
SCANIA 1944314
SCANIA 2198915
W01-M58-9881
SCANIA 1543691
SCANIA 1379392
SCANIA 1440294
W01-M58-8765
ROR 2122 1349
WEWELER US 07380F
SAF HOLLAND 3.229.0024.00
FRUEHAUF UJB 0305-001
SAMRO H2500361
Truck Applications
In order to improve the comfort of truck drivers and facilitate the transportation of items, we developed this product, which has achieved excellent results in China. Both flatbed trucks and semi-trailers will use air springs in the future.
| Item | Detailed |
| 1 | Protect fragile cargo transport, vehicle bodies and various accessories through low self-frequency |
| 2 | With the additional function of the adjustment device, the body can be raised and lowered to facilitate loading and unloading of cargo. |
| 3 | Reduce the impact on the road through low natural frequency, protect the road surface and extend the life of the road. |
