| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T8859 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Product Name: | Air Spring With Metal Piston | Operation: | Gas-Filled |
|---|---|---|---|
| Quality: | 100% Tested | Sample: | Available |
| MOQ: | 6 Pieces | Vehicle: | Truck Suspension |
| Firestone: | W01M588859 | Goodyear: | 1R12-702 |
| High Light: | 4159NP06 Air Spring Assembly,1DK21B-6 Phoenix Air Spring Assembly,Phoenix Air Suspension Spring |
||

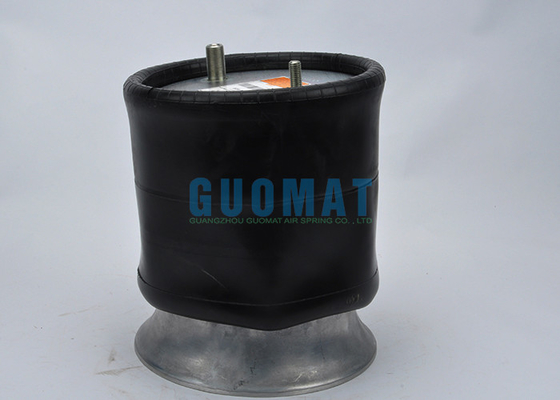

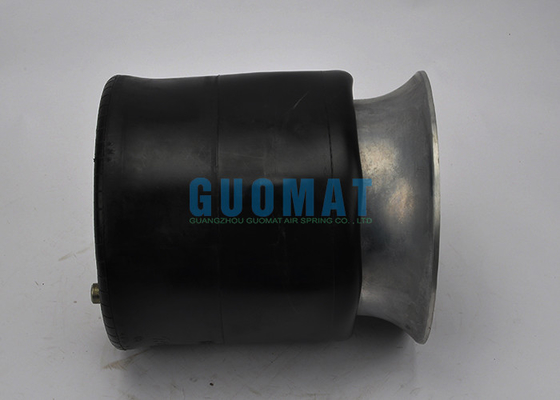

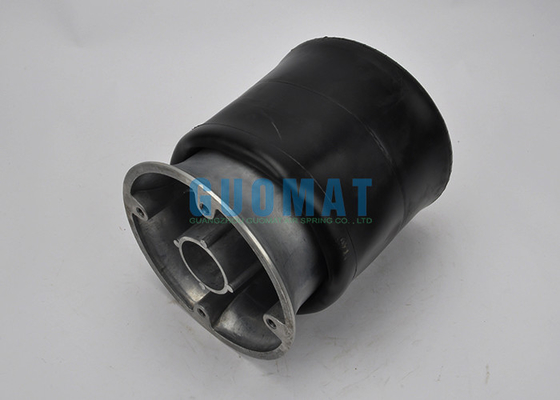

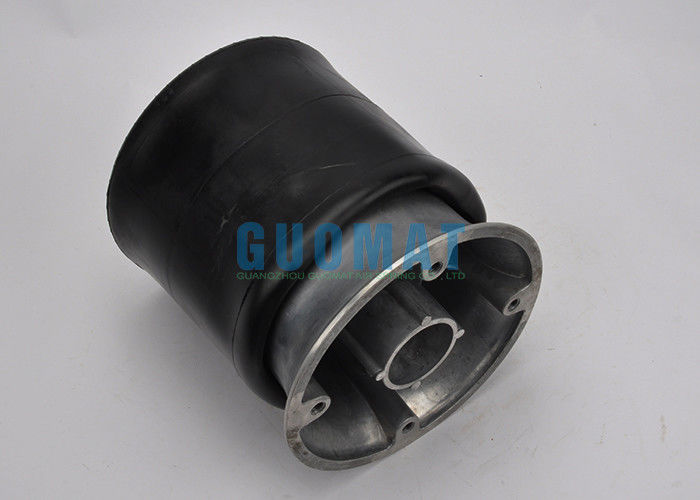

4159NP06 Contitech Air Spring Assembly 1DK21B-6 Phoenix Air Suspension Pneumatique
Product Details
|
Product Name |
Air Suspension |
|
GUOMAT |
1T8859 |
|
Warranty |
1 Year |
|
Material |
Rubber+Steel |
|
OEM Number |
Firestone W01-M58-8859 |
|
Contiteh 4159 NP 06 |
|
|
Goodyear 1R12-702 |
|
|
Phoenix 1 DK 21 B-6 |
|
|
Fryehauf UJA0894 |
|
|
SMB UJB 0203-001 |
|
|
SMB MOO 1782 |
Technical Data
Natural outer diameter: Ø315mm
Maximum outer diameter: Ø325mm
Top cover diameter: Ø231mm
Bolt/Stud: M12X1.75
Combo Stud: M12X1.5 / M20X1.5
Center distance between Bolt and Combo Stud: 157mm
Base piston diameter: Ø260mm
Base piston height: 188mm
Threaded hole specifications of the base: M12X1.75
Maximum height: 650mm
Minimum height: 234mm
Compression height: 116mm
Choosing the Right Truck Air Spring
When choosing the right truck air spring, it is important to consider your specific needs and requirements. Here are some factors to consider:
1. Load Capacity: Determine the maximum load capacity your truck will need to carry. Air springs are known for their ability to provide adjustable load support, allowing you to tailor your suspension to suit different loads.
2. Ride quality: Consider the desired ride quality. Air springs can provide a smoother, more comfortable ride than leaf springs because they can adjust air pressure to provide optimal cushioning and shock absorption.
3. Terrain and Application: Evaluate the truck’s terrain and application. Air springs are particularly beneficial for trucks operating in rough terrain or off-road conditions, as they provide better stability and control.
4. Maintenance: Consider maintenance requirements. Air springs may require more maintenance than leaf springs because they have more wear parts such as bushings, shock absorbers, and air controls that need repair.
5. Cost: Consider the cost implications. Air springs tend to cost more upfront than leaf springs, but can provide long-term cost savings due to their durability and adjustability.
Truck Suspension Air Spring
|
GUOMAT |
GOODYEAR |
FIRESTONE |
CONTITECH |
|
1T9287 |
1R12-424 566-24-1-012 (Bellows) 566-20-7-246 (Piston) |
9287 W01-358-9287 |
9 10-18.5 P 406 64277 |
|
1T9083 |
1R12-066 566-24-3-038 (Bellows) 566-20-7-080 (Piston) |
9083 W01-358-9083 |
9 10-16 P 333 64294 |
|
1T9069 |
1R12-069 566-24-3-038 (Bellows) 566-20-7-235 (Piston) |
9069 W01-358-9069 |
9 10-14 P 312 64274 |
|
1T9213 |
1R12-090 566-24-3-038 (Bellows) 566-20-7-079 (Piston) |
9213 W01-358-9213 |
9 10-16 P 407 64262 |
|
1T9227 |
1R12-130 566-24-3-038 (Bellows) 566-20-7-080 (Piston) |
9227 W01-358-9227 |
9 10-16 P 353 64298 |
|
1T9096 |
1R12-155 566-24-3-038 (Bellows) 566-20-7-080 (Piston) |
9096 W01-358-9096 |
9 10-16 P 325 64292 |
|
1T9219 |
1R12-182 566-24-3-038 (Bellows) 566-20-7-079 (Piston) |
9219 W01-358-9219 |
9 10-16 P 408 64259 |
|
1T9223 |
1R12-188 566-24-3-038 (Bellows) 566-20-7-079 (Piston) |
9223 W01-358-9223 |
9 10-16 P 409 64275 |
|
1T9092 |
1R12-220 566-24-3-038 (Bellows) 566-20-7-080 (Piston) |
9092 W01-358-9092 |
9 10-16 P 372 64301 |
