| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T9084 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $89.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Type: | Suspension Air Spring | Material: | Metal And Rubber |
|---|---|---|---|
| Quality: | 100% Tested | Price Condition: | FOB China |
| Service Offered: | OEM | Operation: | Gas-Filled |
| Car Model: | For Bus/Truck&Trailer | Suspension System: | Air Suspension |
| High Light: | W01-358-9211 Truck Air Springs,Truck Air Springs W01-681-9084 |
||
Air Spring W01-681-9084 / W01-358-9211 Rolling Lobe Air Suspension For Truck
Product Details
|
Item |
Value |
|
GUOMAT NO. |
1T9084 |
|
Type |
Air Spring |
|
Warranty |
12 Months |
|
Truck Model |
Heavy Duty Truck |
|
Color |
Black |
|
Place of Origin |
Guangzhou,China |
|
Certification |
ISO/TS16949:2009 |
|
Material |
Rubber+Steel |
|
Packing |
Neutral Packing |
|
MOQ |
1 Pcs |
|
Quality |
High-Quality |
|
Position |
Auto/Truck parts |
|
Application |
Auto Suspension Systems |
Reference Numbers
Firestone Number W01-681-9084
Firestone Number W01 681 9084
Firestone Number W016819084
Firestone Number WO1-681-9084
Firestone Number WO1 681 9084
Firestone Number WO16819084
Firestone Bellows Number: 1T15M-6
Firestone Bellows Number: 1T 15M-6
Firestone Number W01-358-9211
Firestone Number W013589211
Firestone Number W01 358 9211
Granning Number: 2692/15690
Piston Number: Wc1 358 0697
Piston Number: Wc1-358-0697
Piston Number: Wc13580697
Piston Number: WC1 358 0697
Piston Number: WC1-358-0697
Piston Number: WC13580697
Triangle Number: 8512*6363
GUOMAT 1T9084 Technical Parameters
❶ Screw Bolt / Stud
Top Cover Plate screw Bolt / Stud Tooth : 1 pc 1/2-13UNC
Top Cover Plate Combo Stud : 1 pc 1/4NPT and 3/4-16UNF
Screw and Combo Stud Center Distance of Top Cover Plate : 157 mm
❷ Cover Plate
Top Cover Plate Diameter: Ø231 mm
❸Rubber Bellows
Rubber Bellows Natural Diameter: 320 mm
Rubber Bellows MAX Height : 540 mm
Rubber Bellows MIN Height : 220 mm
Working stroke : 320mm
❹ Bottom Piston
Bottom Piston Diameter : Ø257mm
Bottom Piston Height :137 mm
❺ Piston Bolt
Piston Bolt Tooth : 1/2-13UNC
2 pieces of Bolt
Middle faster between center Bolt : 114 mm
Instructions for Using Rubber Air Spring
Warning: Do not inflate the air spring when it is not installed. Unless the product is firmly installed in a suitable structure, the maximum pressure is 7 pressures, otherwise there is a risk of product damage or personal injury.
Store
Place the air spring indoors at room temperature in a cool, dry place
Features
The air spring is made of high-quality spring materials. Its good dynamic performance ensures that the air spring is maintenance-free and has a long service life.
Chemical resistance
Wide operating temperature range, from -53 degrees Celsius to 70 degrees Celsius
Oil-resistant compressed air
Resistant to dust
Resistant to alkaline and acidic cleaners
Not sensitive to atmospheric effects
Ozone resistant
Air springs are not resistant to the following substances
Solvent
Hydraulic oil
Grease

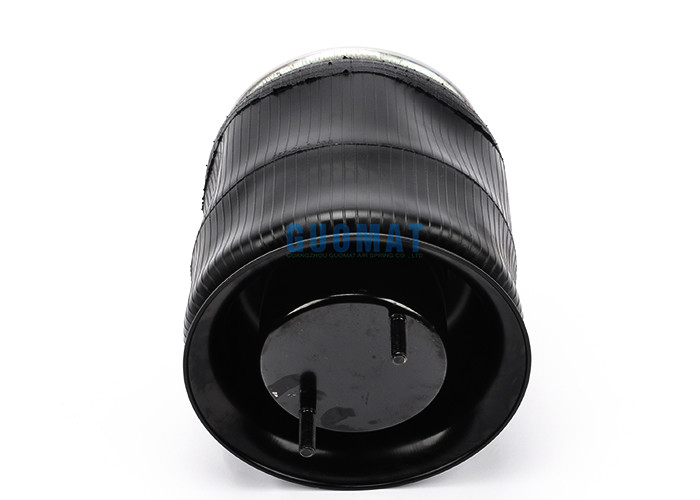

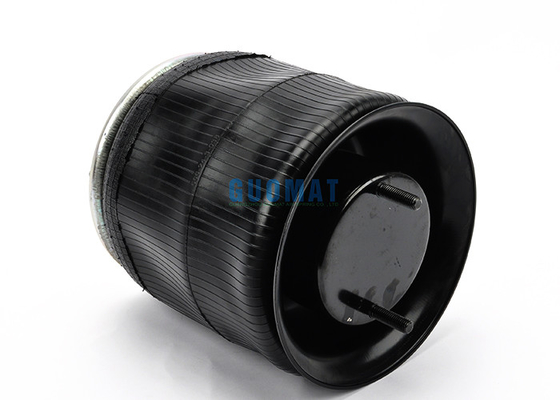

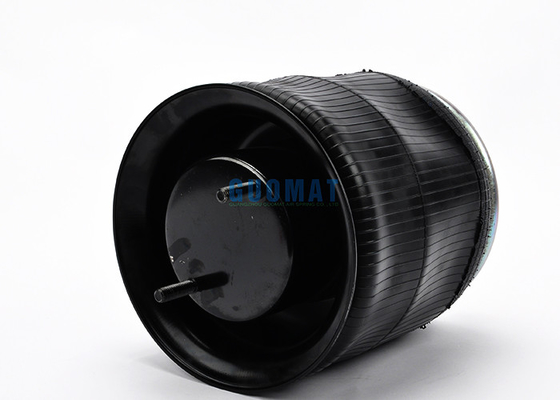

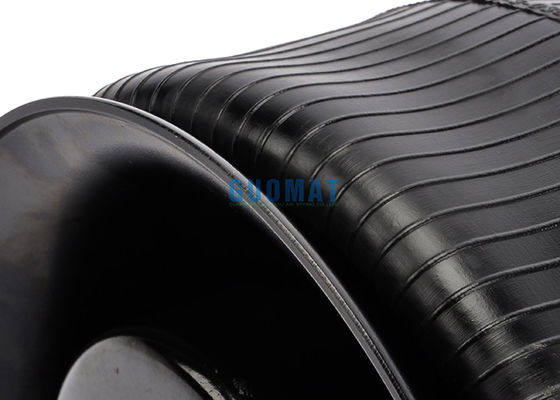

The Real Pictures of GUOMAT 1T9084 Truck Air Spring
