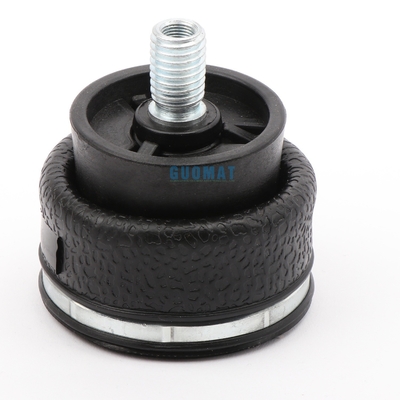

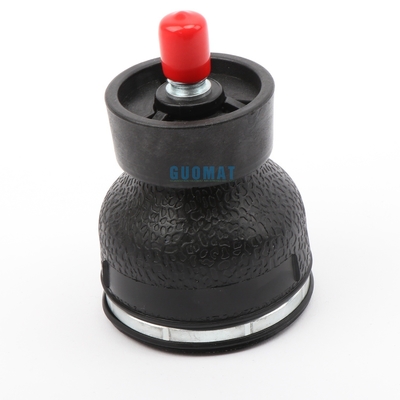

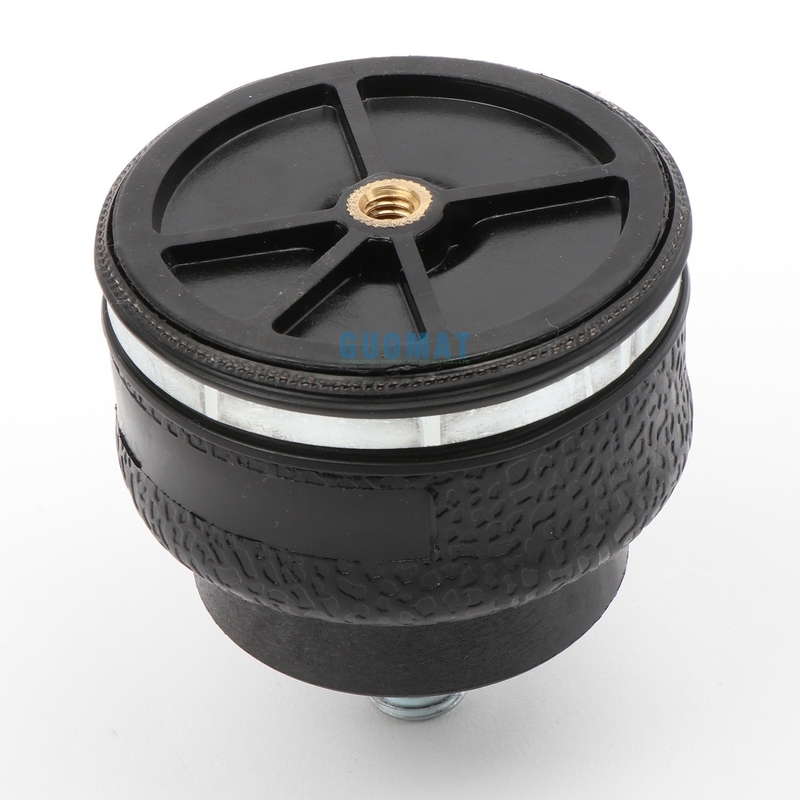

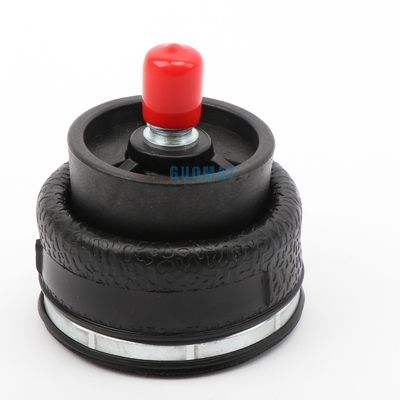

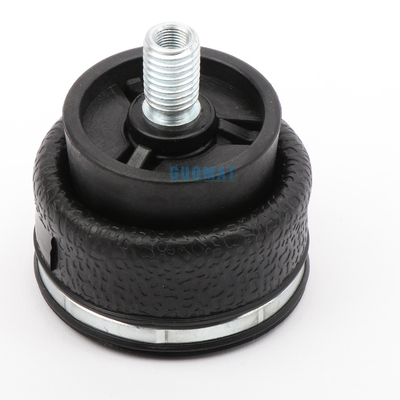

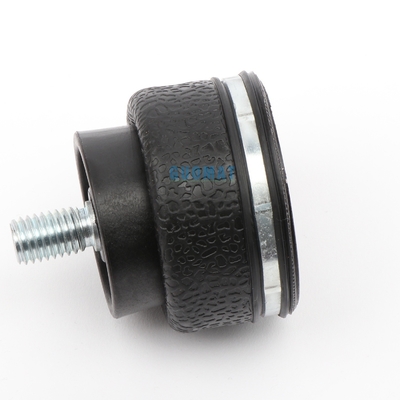

1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949, ISO9001
Model Number:	G3013

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD29.9-39.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type:	Suspension Spring, Gas-Filled	Brand:	Guomat Or Neutral
OEM:	Yes	Material:	Rubber And Iron
N.W.:	0.25 Kg	Pressure Ability:	0.2-0.8 M PA
Air Inlet:	G1/8	Top Plate Hole/Stud:	3/8-16unc
Bottom Plate Hole/Stud:	3/16 NPT	Top Plate Dia:	81.28 Mm
Highlight:	1S3-013 Goodyear Air Spring , Goodyear Air Spring For Harley Motorcycle

1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle

Cross OEM:

GUOMAT:G3014

Goodyear NO.:1S3-013 / 1S3013 / 1S3 013

Contitech NO.:SZ37-6 / SZ37 6 / SZ376

Fire stone Air Spring NO.:W02-358-3000 / W023583000 / W02 358 3000

Quick Details:

Type:Suspension Spring
Size:OEM standard
Spring Type:Gas Filled
Status: Brand New
Stock:Yes
Manufacturer Brand:GUOMAT
Application:Auto Suspension Parts
Warranty:12 Months

Descripition and Specifications:

G.Weight: 0.6 KG
PISTON NUMBER: ASC-06-7-017 /
PISTON NUMBER: ASC067017 /
PISTON NUMBER: ASC 06 7 017
Lower Plate OD : 2.40 (in.) / 60.96 MM
Extended Height : 3.60 (in.) / 91.44 MM
Bumper Height : 1.50 (in.) / 38.1 MM
Upper Plate OD : 3.2 (in.) / 81.28 MM
Lower Plate OD: 2.40 (in.) / 60.96 MM
Extended Height: 3.60 (in.) / 91.44 MM
Bumper Height: 1.50 (in.) / 38.1 MM
Upper Plate OD: 3.2 (in.) / 81.28 MM
Air Spring Type: Sleeve
PartType2: Air Spring Sleeve
STATUS: A
NUM_CODE: 800001

Detailed parameters:

Vibration isolation - dynamic characteristic values
Design height H: recommended 2.37 inch
Pressure p [psi]	40	60	80	100	120	Vol.V [in.³]
Force (Load) [lbf]	231	327	439	553	677	9
Spring rate [lbf/in]	174	241	312	378	442	9
Natural frequency [Hz]	2.8	2.7	2.7	2.6	2.6	9

Pneumatic application - static characteristic values
Force F [lbf]
Pressure p [psi]	40	60	80	100	120	Vol.V [in.³]
Height H [inch] 3.00	2.2	3.1	4	4.8	5.7	12
Height H [inch] 2.50	2.7	3.6	4.6	5.6	6.5	9.8
Height H [inch] 2.00	3.1	4.1	5.1	6.2	7.3	7.3
Height H [inch] 1.50	3.4	4.5	5.6	6.7	7.9	4.9

Application of 1S3-013 air spring :

This air spring was originally designed to be used in the Harley-Davidson shock, the current amount is relatively large and Halley motor. But there are many customers used in the relatively small force on the small machinery and equipment, there are precision instruments. Many customers respond to its shock absorption effect is very good.We designed G3014 this airbag is completely replaceable the original one 1S3-013.
