| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T5311 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD79.9-99.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Brand: | Guomat / Neutral | Function: | Reduce Shock |
|---|---|---|---|
| Quality: | 100% Tested | Air Spring: | Air Spring Isolator |
| Failure Testing: | More Than 3 Millions | Warranty: | 1 Year |
| Position: | Truck Air Suspension | Firestone: | W013585311 |
| High Light: | Firestone Rolling Lobe Air Spring,W01-358-5311 Rolling Lobe Air Spring |
||
W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension
Product Details
| Item | Air Spring/Shock Absorber Spring/Air Bellows |
| Brand | GUOMAT/Neutral |
| Material | Rubber and Steel |
| Warranty | 1 Year |
| MOQ | 10 PCS If We Have Stock |
| Package | (1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
| Delivery Time | 2-8 Working Days |
| Payment | T/T, L/C, PayPal, Western Union |
| After Service | (1) Examination Before Shipment (2) Follow Up The Customers' Feedback |
| Main products we sell | Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
OEM Number
FIRESTONE W01-358-5311
FIRESTONE W01 358 5311
FIRESTONE W013585311
FIRESTONE 1T14C-1 & 1T14F-2
RIDE 1003585311C
RIDE 100 358 5311C
Note:Flxible 6-379-1
GUOMAT 1T5311 Truck Air Spring Technical Data
The Top Cover Plate Diameter: 160mm
Gas Hole: 1/4NPT
Combo Stud: 2X3/8-16UNC
The Distance Between Combo Stud: 89mm
The Distance Between Combo Stud and Gas Hole: 44mm
Natural Height: 230mm
Piston Width: 179mm
Piston Height: 93mm
How to Choose the Right Truck Air Suspension Spring
1. Suspension Type: There are two main types of suspensions used in trucks: air ride and spring ride. Air ride suspensions use pressurized, expandable rubber or rubber-like bags to absorb road shocks and changing weights of the trailer loads. On the other hand, spring ride suspensions use steel or composite spring packs for the same purpose .
2. Ride Quality: Air ride suspensions are known for providing a smoother and more comfortable ride compared to spring ride suspensions. They can automatically adapt to changing cargo loads and road shocks, keeping the floor mostly level and reducing vibration. However, personal preference and the specific application of the truck can also play a role in the decision-making process .
3. Maintenance and Cost: Spring ride suspensions generally require less maintenance and have lower upfront costs compared to air ride suspensions. Air ride suspensions can be more complex and may require additional maintenance, such as checking for air bag cracking, dry rot, and leveling valve problems. It's important to consider the long-term maintenance costs when choosing the right suspension for your truck .
4. Cargo Protection: Air ride suspensions are often preferred when hauling fragile loads, such as glass, as they provide better cushioning and reduce the risk of cargo damage.
5. Driving Conditions: The choice of suspension may also depend on the driving conditions. Air ride suspensions are generally better suited for rough or uneven road surfaces, as they can provide a smoother ride and improved handling and stability. Spring ride suspensions may be more suitable for applications where ride quality is not a significant concern .

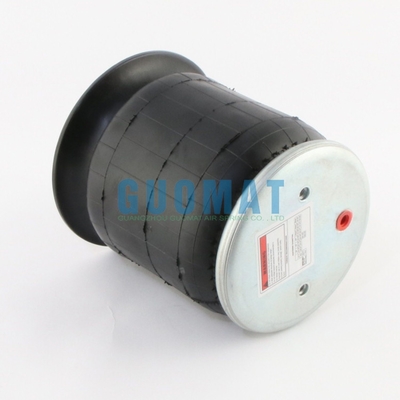

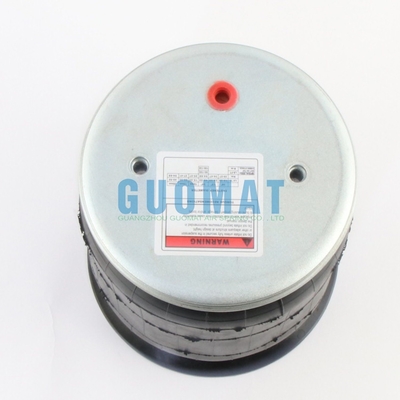

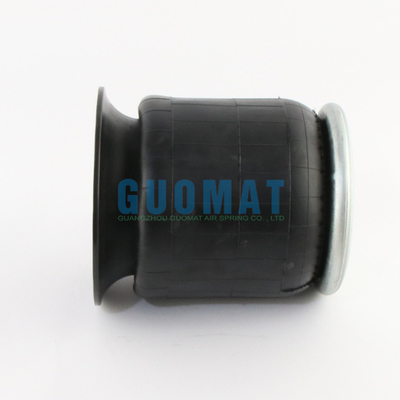

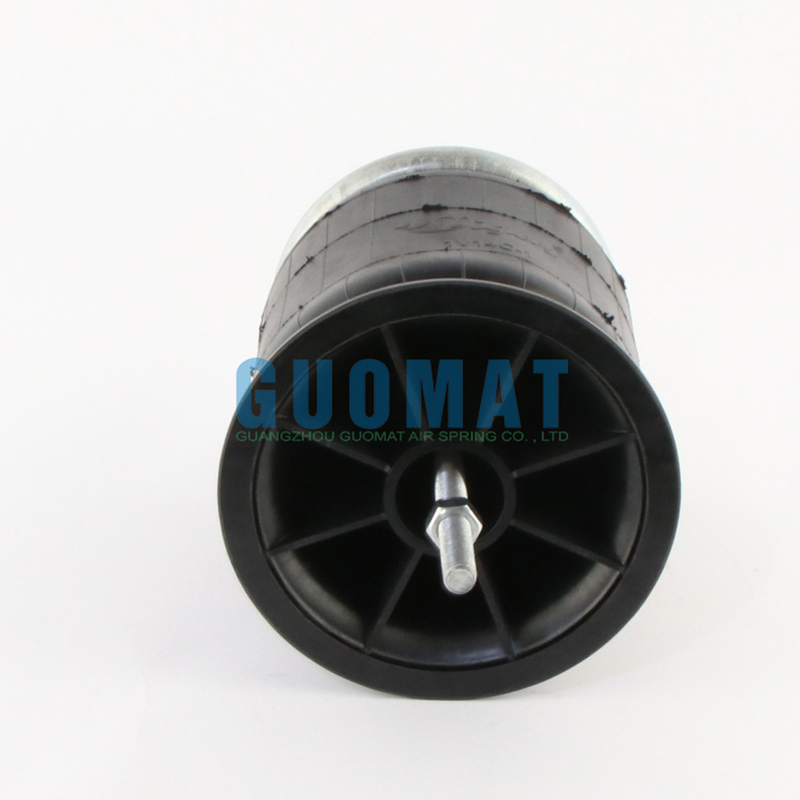

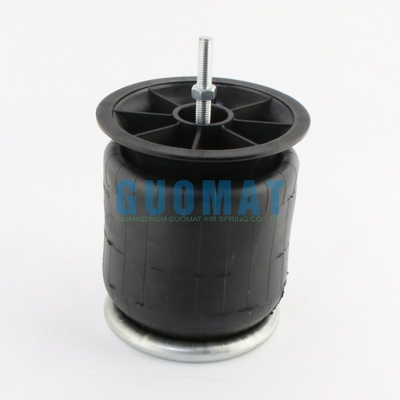

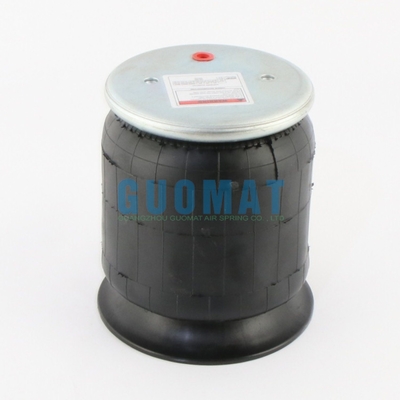

Product Images
