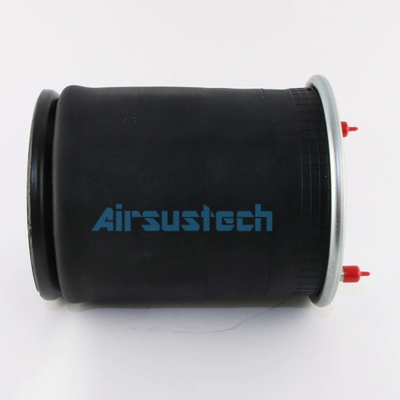

Firestone Truck Air Spring Spare Parts W01-358-8460 Heavy Truck Air Suspension

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1T8460

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-89.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Type:	Air Spring	Fuction:	Reduce Shock
Package:	Strong Cartons	Warranty:	12 Months
Firestone:	W01-358-8460	Brand:	GUOMAT
MOQ:	1 Pc	Condition:	New
Highlight:	Firestone Truck Air Spring Spare Parts , W01-358-8460 Truck Air Spring Spare Parts

Firestone Truck Air Spring Spare Parts W01-358-8460 Heavy Truck Air Suspension

Products Description

Model	1T8460
Product Name	Air Spring
Application	For Truck,For Trailer
Material	Rubber Bellows and Steel Cover Plate
Warranty	1 Year
Purpose	For Replace/Repair

Cross Reference Number

Firestone OEM Number: W01-358-8460

Firestone OEM Number: W01 358 8460

Firestone OEM Number: W013588460

Firestone OEM Number: WO1-358-8460

Firestone OEM Number: WO1 358 8460

Firestone OEM Number: WO13588460

Specifications and Detailed Technical Parameters: GUOMAT 1T8460

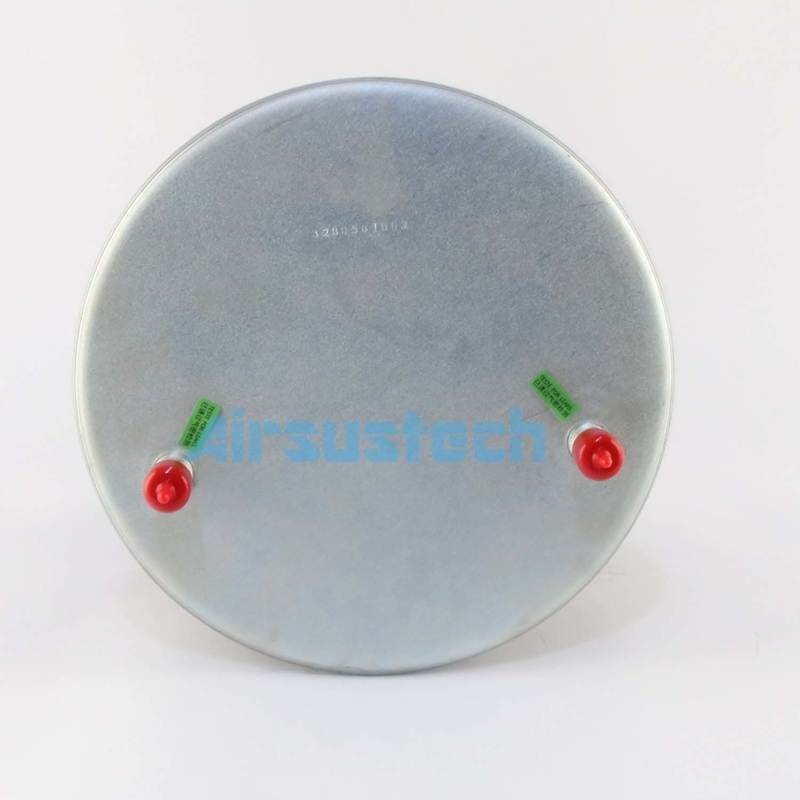

Top plate 2pcs Combo studs: 2pcs x M20x 1.5 , 2pcs x 1/4NPTF
The screw center distance: 169
Height : 280mm
Top plate diameter: 289mm
Bottom plate diameter: 296.3mm
Rubber bellow outer diameter: 304± 5mm

GUOMAT 1T-Air Spring Assembly Cross Firestone

Bellow NO.	Firestone Part NO.	GUOMAT NO.	Bellow NO.	Firestone Part NO.	GUOMAT NO.
1T14C-1	W01-358-2119	1T2119	1T14C-1	W01-358-2120	1T2120
1T14C-1	W01-358-2131	1T2131	1T14C-1	W01-358-5310	1T5310
1T14C-1	W01-358-5311	1T5311	1T14C-1	W01-358-5323	1T5323
1T14C-1	W01-358-5328	1T5328	1T14C-3	W01-358-5405	1T5405
1T14C-3	W01-358-5406	1T5406	1T14C-3	W01-358-5408	1T5408
1T14C-3	W01-358-5410	1T5410	1T14C-3	W01-358-5412	1T5412
1T14C-3	W01-358-5414	1T5414	1T14C-3	W01-358-5422	1T5422
1T14C-3	W01-358-5423	1T5423	1T14C-3	W01-358-5433	1T5433
1T14C-3	W01-358-5434	1T5434	1T14C-3	W01-358-5436	1T5436
1T14C-3	W01-358-9478	1T9478	1T14C-5	W01-358-5335	1T5335
1T14C-5	W01-358-5336	1T5336	1T14C-5	W01-358-8868	1T8868
1T14C-6	W01-358-5439	1T5439	1T14C-6	W01-358-8977	1T8977
1T14C-6	W01-358-8979	1T8979	1T14C-7	W01-358-5426	1T5426
1T14C-7	W01-358-5702	1T5702	1T14C-7	W01-358-5712	1T5712
1T14C-7	W01-358-5429	1T5429	1T14CB-1	W01-358-5297	1T5297
1T14CB-1	W01-358-5319	1T5319	1T14CB-1	W01-358-8872	1T8872
1T14CB-1	W01-358-8992	1T8992	1T14CB-1	W01-358-8997	1T8997
1T15L-1.5	W01-358-8886	1T8886	1T15L-1.5	W01-358-9422	1T9422
1T15L-1.5	W01-358-9584	1T9584	1T15L-1.5	W01-358-9616	1T9616
1T15L-2	W01-358-8900	1T8900	1T15L-2	W01-358-8901	1T8901
1T15L-2	W01-358-9075	1T9075	1T15L-2	W01-358-9376	1T9376
1T15L-2	W01-358-9377	1T9377	1T15L-2	W01-358-9378	1T9378
1T15L-2	W01-358-9387	1T9387	1T15L-2	W01-358-9440	1T9440
1T15L-2	W01-358-9445	1T9445	1T15L-2	W01-358-9447	1T9447
