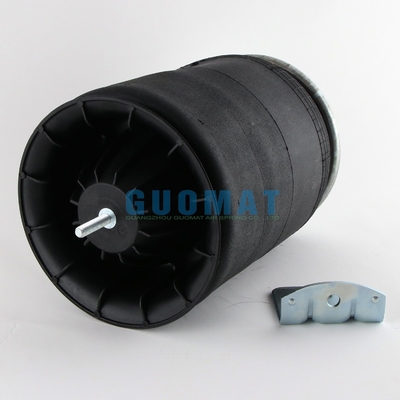

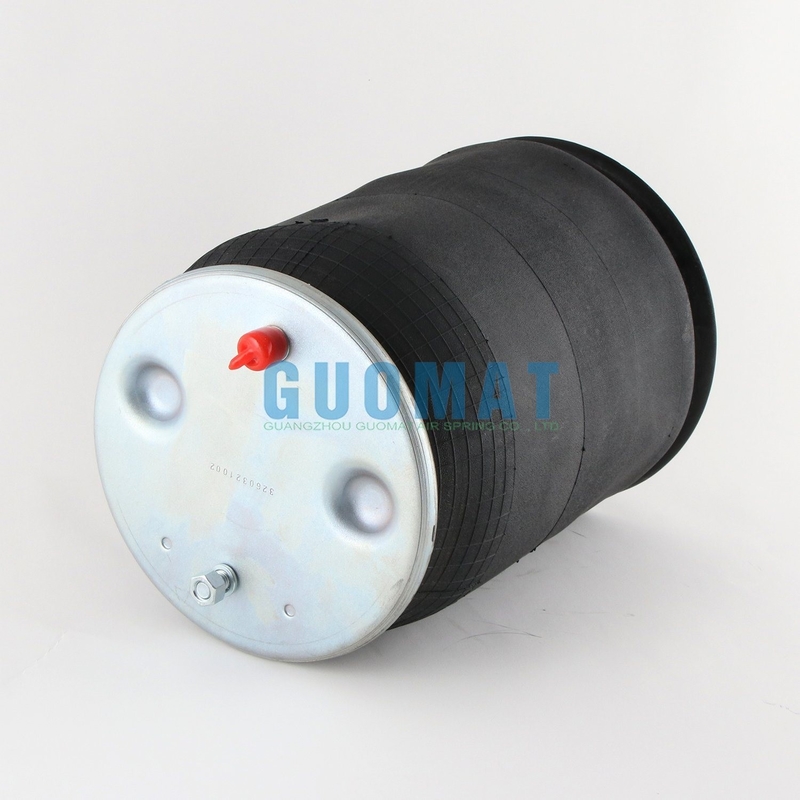

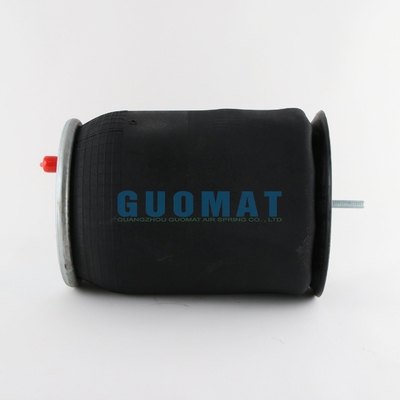

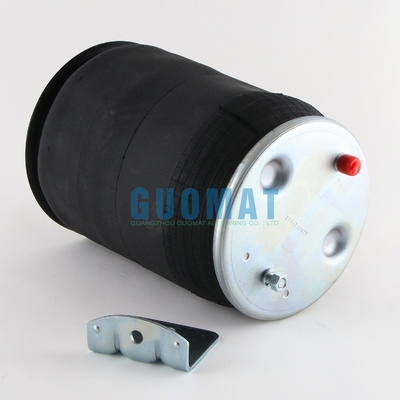

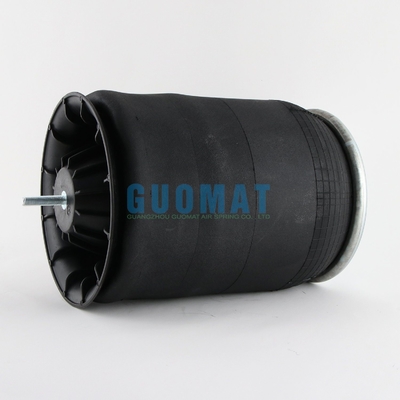

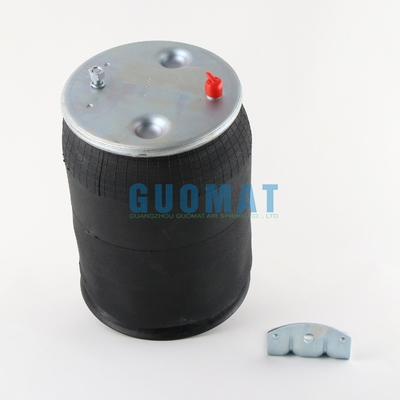

Replaces W01-358-9875 Firestone Rolling Lobe Air Spring For Navistar Trucks 3541731C1

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9875

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Material:	Rubber	Car Make:	Truck
Keywords:	Air Suspension Shock Absorber	Goodyear:	1R12-432
Specification:	OEM Standard	After-sales Service:	1 Year
Warranty:	12 Months	Type:	Gas-Filled
Highlight:	Firestone Rolling Lobe Air Spring , W01-358-9875 Rolling Lobe Air Spring

Replaces W01-358-9875 Firestone Rolling Lobe Air Spring For Navistar Trucks 3541731C1

Product Description

Item	Truck Air Shock	MOQ	10 pcs
Warranty	12 Months	Material	Rubber and Steel
Position	Front and Rear	Origin	Guangzhou China
Firestone	W013589875	Firestone	W01-358-9875
Firestone	W01 358 9875	Firestone Style	1T15M-9
Goodyear	1R12-432	Goodyear	1R 12-432
Navistar	3541731C1	Goodyear	1R12432

Technical Data: Firestone W01-358-9875

Top Cover Plate Diameter: 9.00
Base Width: 10.00
Base Height: 4.85
The Rubber Bellow Diameter: 10.12
Max.Height: 23.79
Min.Height: 5.96
Spring Weight: 15.2

1T15M-9 Firestone Bellow Number

W01-358-8842,W01-358-8852,W01-358-8855,W01-358-8864
W01-358-9101,W01-358-9192,W01-358-9203,W01-358-9238
W01-358-9240,W01-358-9243,W01-358-9245,W01-358-9346
W01-358-9348,W01-358-9349,W01-358-9350,W01-358-9394
W01-358-9875.W01-358-9876

What are the Benefits of Using Truck Air Springs

1. Can provide a more comfortable suspension system: Truck air springs can adjust the hardness and height of the suspension system to provide a more comfortable ride. You can adjust the air pressure of the air spring according to the road conditions and load conditions, so that the truck has a better suspension effect under different road conditions.

2. Improve the stability and handling of the suspension system: Air springs can provide a more uniform suspension force, thereby improving the stability and handling of the truck. They can reduce the bumps and shakes of the suspension system, making the driving smoother and more controllable.

3. Adapt to different load requirements: Air springs can be adjusted according to the changes in load to adapt to different transportation needs. Whether it is empty or fully loaded, you can adjust the air pressure to maintain the appropriate height and suspension stiffness of the truck to ensure a safe and comfortable ride.

4. Extend the service life of the suspension system and tires: By providing a better suspension effect, truck air springs can reduce the wear of the suspension system and tires. They can effectively absorb road vibrations and shocks, reduce damage to the suspension system and tires, and thus extend their service life.

In general, using truck air springs can provide a more comfortable, stable and reliable suspension system, adapt to different load requirements, and extend the service life of the suspension system and tires. These benefits can improve the driving experience, reduce maintenance costs, and enhance the safety and reliability of the truck.

Manufacturer Numbers

Goodyear Air Spring 1R12-432

Goodyear Air Spring 1R 12-432

Goodyear Air Bellows 566-24-3-165

Goodyear Air Bellows 566 24 3 165

Goodyear Air Bellows 566243165

Contitech Air Spring 66908

Contitech Air Spring 910B-19.5 P889

Contitech Air Spring 910B-19.5P889

Int'l/Navistar Air Spring 350243C94

Springride Air Spring 1R12-1077

TRP Air Spring ASP8890

W01-358-8708	1R13-128	AS8708	S21966, C-21966	Suspension Air Spring Kit - Trailer, 9.10 in. Compressed Height, Reversible Sleeve
W01-358-7271			274853D0020001	Airide Air Spring Double Convoluted 28, Specialized Pneumatic Bellows
W01-358-9974	1R12-1048	AS9974	90557332	Air Suspension Spring - Rolling Lobe, 7.30-22.90" Height, 92.25" Piston Bolt
W01-358-6897	2B9-229	AS6897		Air Suspension Spring - Double Convulated, 3.00-16.50" Height, 6.31" dia. Top Plate
W01-358-9807	1R12-1047	AS9807	90557372	Suspension Air Spring - Trailer, 4.70 in. Compressed Height, Reversible Sleeve
W01-358-9265	1R12-375	AS9265	FSIW013589265	Air Suspension Spring - Rolling Lobe, 7.40-24.90" Height, 9.00" dia. Top Plate
W01-358-9622	1R11-221	AS9622	K303-22	Air Suspension Spring - Rolling Lobe, 3.90-11.50" Height, 9.00" dia. Top Plate
W01-358-9370	1R12-440	AS9370	FIW013589370	Suspension Air Spring - Trailer, 9.40 in. Compressed Height, Reversible Sleeve
W01-358-9422	1R11-028	AS9422	K303-15	Replacement Reversible Sleeve Air Spring for Kenworth Trucks
W01-358-8852	1R12-568	91019P472	03-07887	Suspension Air Spring - 6.80" Compressed Height, Reversible Sleeve, for Peterbilt Trucks
W01-358-8774	1R14-12	11105F17P745	S-25873	Suspension Air Spring Kit - Trailer, 6.14 in. Compressed Height, Reversible Sleeve
W01-358-8813	1R12-069	9104P577	C816000	Air Suspension Spring - 7.5" Compressed Height, for Peterbilt Trucks
W01-358-8713	1R13-176	101016S533	S-22948, C-22948	Suspension Air Spring - 8 in. Compressed Height, Reversible Sleeve, for Hendrickson
W01-358-8829	1R12-405 1R12-595	AS8829	20535399	Air Suspension Spring - Rolling Lobe, 6.50-22.10" Height, 9.00" dia. Top Plate
W01-358-8204	1R12-522	AS8204	905-57-173	Suspension Air Spring - Trailer, 4.40 in. Compressed Height, Reversible Sleeve
