1R12-711 Goodyear Air Suspension Parts W01-M58-8721 Firestone Assembly Truck Air Springs

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T8721

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Part:	Truck Air Suspension	Quality:	100% Tested
Keywords:	Air Suspension Shock Absorber	Goodyear:	1R12-711
Specification:	OEM Standard	HS Code:	8708809000
Warranty:	12 Months	Position:	Rear
Highlight:	1R12-711 Goodyear Air Suspension Parts , W01-M58-8721 Air Suspension Parts

1R12-711 Goodyear Air Suspension Parts W01-M58-8721 Firestone Assembly Truck Air Springs

Product Description

Item : Rolling Lobe Air Spring

Item Number : 1T8721

OEM Number : W01M588721 / 836M2 K1 / 1R 12-711

Working Tempreature : -40°C bis +70°C

Failure Testing : ≥3 millions

Reference Numbers

Firestone	W01-M58-8721	Firestone	W01M588721
Firestone	W01 M58 8721	Firestone	W01-m58-8721
Firestone	w01-m58-8721	Contitech	836 M2K1
Contitech	60210	Goodyear	1R 12-711
Phoenix	1DF25-13	Taurus	KR 721-03
Dunlop FR	D13B31	Airbech	131 062
Granning	15996	WABCO	951 812 7110
Meritor	MLF8059	VDL/DAF	0388167

GUOMAT 1T8721 Truck Air Ride Suspension Technical Data

The GUOMAT 1T8721 air spring assembly is based on Firestone's W01-M58-8721, with high performance and strong substitutability. The top cover has a diameter of 272mm, an M10X1.5 air hole, a center distance of 150mm between the screw and the air hole, and a center distance of 110mm between the screws. The base has a diameter of 225mm, with an M16 threaded hole. The natural outer diameter of the air spring is 305mm, the height of the piston is 130mm, the maximum height is 420mm, and the minimum height is 155mm

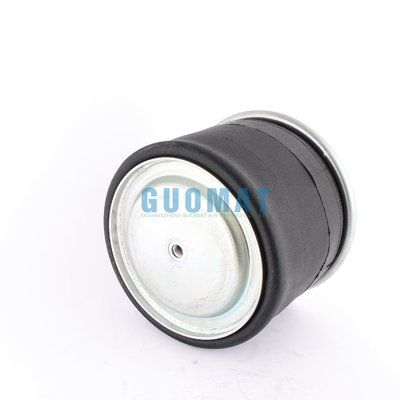

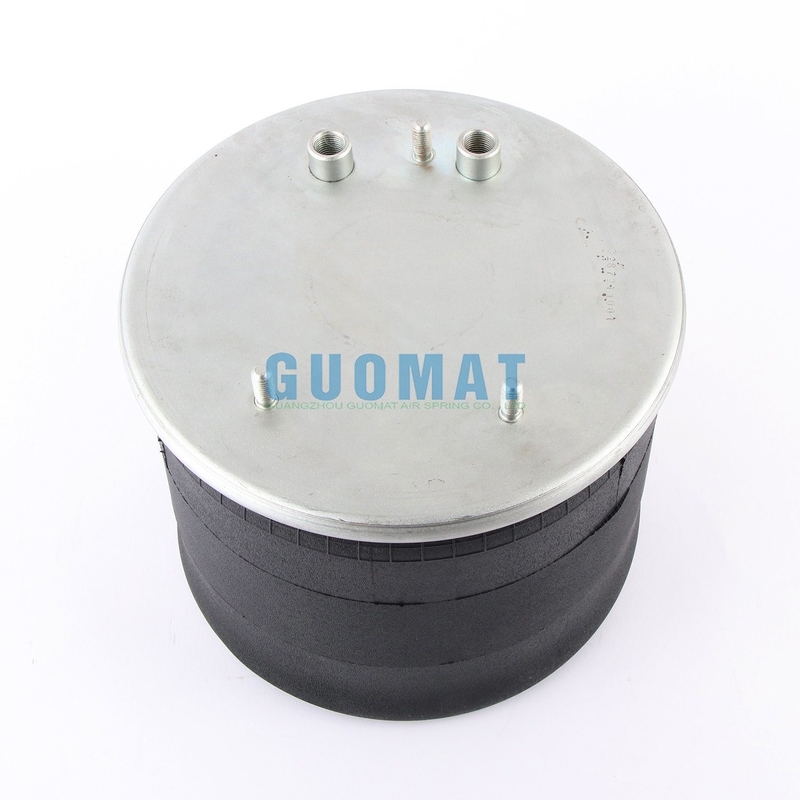

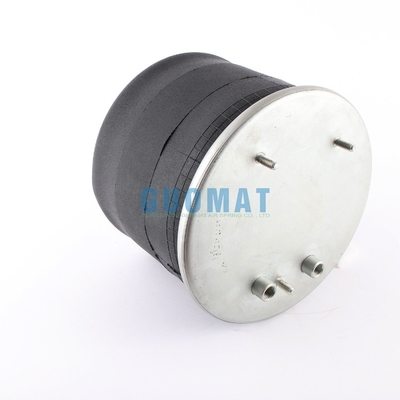

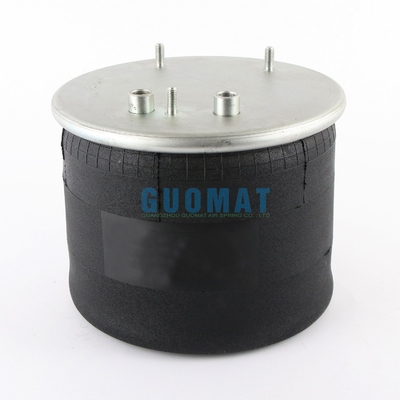

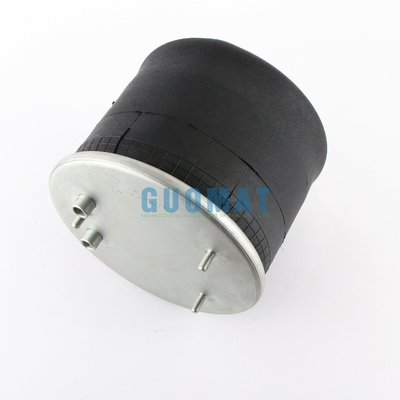

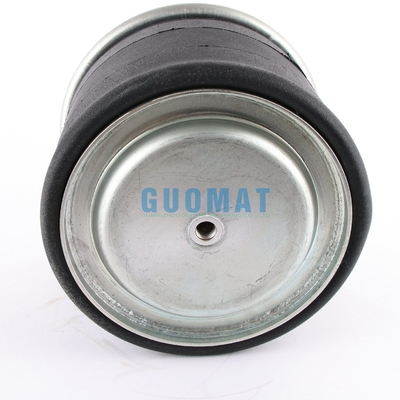

Pictures of Details
1r12-711 Goodyear Air Suspension Parts W01-M58-8721 Fire-Stone Assembly Truck Air Springs
