| Place of Origin: | Guangzhou,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T6348 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD79.9-99.9/PC |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-7 Working Days |
| Payment Terms: | L/C, T/T, Western Union Or Others |
| Supply Ability: | 1000PCS/Week |
| Car Make: | Light Truck / Trailer | Function: | Shock Absorber |
|---|---|---|---|
| Quality: | 100% Tested | Keywords: | Air Suspension Shock Absorber |
| OEM: | W01-M58-6348 | Transport Package: | Cartons |
| Specification: | OEM Standard | Part: | Truck Air Suspension |
| High Light: | Truck Air Suspension Air Spring,4023np03 Air Suspension Air Spring,W01-M58-6348 Air Suspension Air Spring |
||
Product Description
| Product Name | Truck Air Spring |
| Fire stone | W01-M58-6348 |
| Contitech | 4023NP03 |
| Goodyear | 1R14-729 |
| Phoenix | 1D28A-10 |
| Taurus | KR624-18 |
| Dunlop FR | D13B26 |
| CF Gomma | 1T19E-2/204676 |
| Andrew | H14-1358106 |
| SAF | 3.229.0031.00 |
| 3.229.2231.00 | |
| 3.22902431.00 | |
| 3.229.2131.00 |
Technical Data
Top Cover Plate Diameter: 289mm
Bolt/Stud: M12X1.5
Air Inlet: M22X1.5
Center Distance Between Screw and Air Hole: 95mm
Center Distance Between Screws: 210mm
Piston Width: 260mm
Max.Height: 680mm
Min.Height: 226mm
Piston Height: 178mm
Threaded Hole: M12X1.75
OE Manufacturer
SAF: 3.229.0031.00/3.229.2231.00/3.229.2431.00/3.229.2131.00
Cross Reference
Firestone: W01-358-6348 / W01 358 6348 / W013586348 / 1T19L-11
Goodyear: 1R14-729 / 1R14729 / 566283547 / 566-28-3-547 / 566 28 3 547
Phoenix: 1D28B-10 / 1 D 28 B-10
Vibracoustic: V1D28B-10 / V 1 D 28 B-10 / V1D28B10
Airtech: 130322 / 34023C
Primeride: 54023AP03 / 54023 A P03
How Do Air Springs Work?
Air springs are load-carrying components used in various applications, including machines, automobiles, and buses. They are part of an air suspension system that provides suspension, isolation, or actuation. Here's how air springs work:
Structure: An air spring consists of a rubber and fabric container, known as a bellows, that is filled with air. The bellows is designed to look like an automobile tire or multiple tires stacked on top of each other .
Load Distribution: When a load is applied to the vehicle or machine, the air spring bellows compresses, and the air inside becomes pressurized. This pressurized air supports the weight of the load, distributing it evenly across the air spring .
Height Maintenance: To maintain the vehicle's height when the load increases, check valves admit additional air from the air-supply tank into the bellows. This ensures that the vehicle remains at the desired height .
Excess Air Venting: When the vehicle rises due to unloading, leveling valves vent excess air from the bellows. This prevents the vehicle from becoming too high and maintains proper suspension .

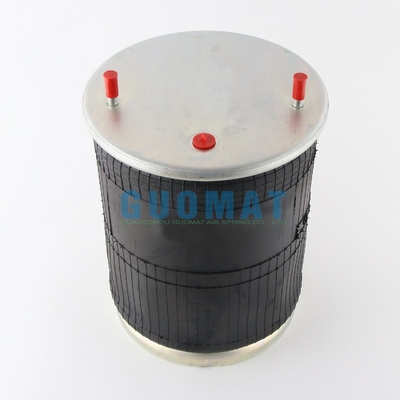

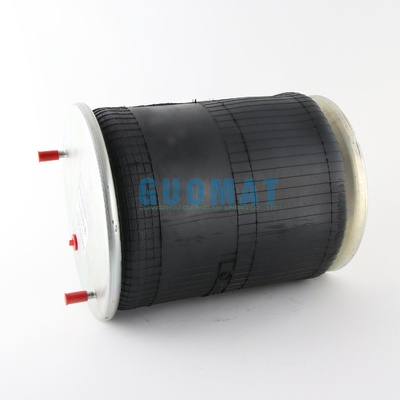

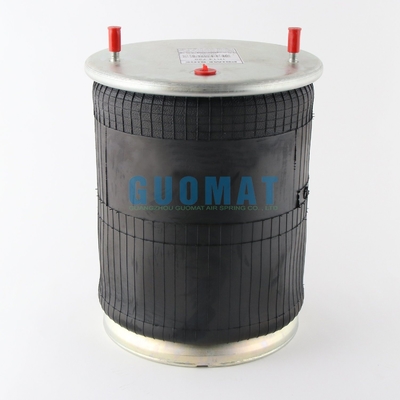

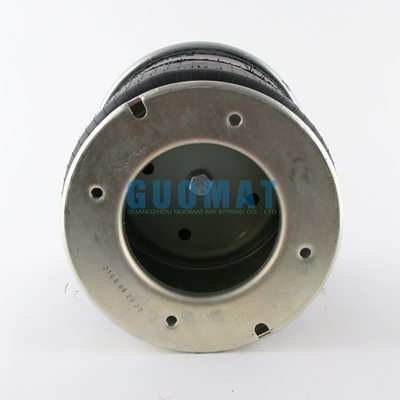

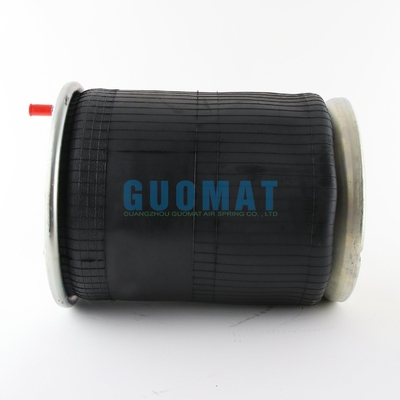

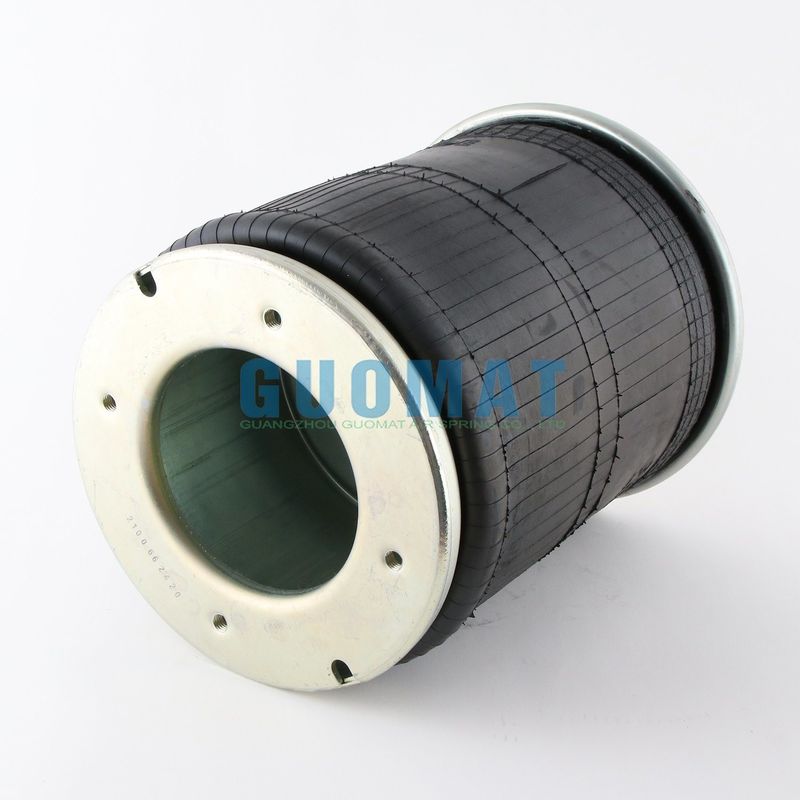

Pictures of Details
