W01-M58-0919 Firestone Truck Suspension Air Spring W01-M58-6366 Air Pillow Without Piston

W01-M58-0919 Firestone Truck Suspension Air Spring W01-M58-6366 Air Pillow Without Piston

  • W01-M58-0919 Firestone Truck Suspension Air Spring W01-M58-6366 Air Pillow Without Piston
  • W01-M58-0919 Firestone Truck Suspension Air Spring W01-M58-6366 Air Pillow Without Piston
  • W01-M58-0919 Firestone Truck Suspension Air Spring W01-M58-6366 Air Pillow Without Piston
  • W01-M58-0919 Firestone Truck Suspension Air Spring W01-M58-6366 Air Pillow Without Piston
  • W01-M58-0919 Firestone Truck Suspension Air Spring W01-M58-6366 Air Pillow Without Piston
  • W01-M58-0919 Firestone Truck Suspension Air Spring W01-M58-6366 Air Pillow Without Piston
W01-M58-0919 Firestone Truck Suspension Air Spring W01-M58-6366 Air Pillow Without Piston
Product Details:
Place of Origin: Guangzhou,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1T6366
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD79.9-99.9/PC
Packaging Details: Carton
Delivery Time: 3-7 Working Days
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Contact Now
Detailed Product Description
Keywords: Air Suspension Shock Absorber Warranty: 12 Months
Part: Truck Air Suspension Position: Rear
WABCO: 951 811 750 0 Firestone: W01-M58-6366
Contitech: 4004 NP 03 Goodyear: 1R11-706
Highlight:

Firestone Truck Suspension Air Spring

,

W01-M58-6366 Suspension Air Spring

,

W01-M58-0919 Suspension Air Spring

W01-M58-0919 Firestone Truck Suspension Air Spring W01-M58-6366 Air Pillow Without Piston


Product Description

Type Truck Air Spring,Rolling Lobe Air Spring
Material Rubber,Steel
Warranty 12 Months
Brand GUOMAT
Quality High-Quality
MOQ 1 Piece


Cross Reference Number

Firestone Number W01-M58-6366 / WO1-M58-6366

Firestone Number W01 M58 6366 / WO1 M58 6366

Firestone Number W01M586366 / WO1M586366

Firestone Number W01-M58-0919 / WO1-M58-0919

Firestone Number W01 M58 0919 / WO1 M58 0919

Firestone Number W01M580919 / WO1M580919

Contitech Number 4004 NP 03 / 4004NP03

Goodyear Number 1R11-706 / 1R 11-706 / 1R11706

Goodyear Number 1R11-750 / 1R 11-750 / 1R11750

Phoenix Number 1DK22E-5

Phoenix Number 1DK22E-8

Taurus Number K505-27SM

Dunlop FR Number D12B25 / D11B34 / D11B13

CF Gomma Number 1T300-33

CF Gomma Number 1T300-37

Airtech Number 130282

Airtech Number 132782

Airtech Number 34004KPP

WABCO Number 9518117500 / 951 811 750 0

WABCO Number 9518117130 / 951 811 713 0

SAF Number 3229000700 / 3 229 0007 00

SAF Number 2229000701 / 2 229 0007 01

SAF Number 3229000702 / 3 229 0007 02

SAF Type Number 2618



GUOMAT 1T6366 Air Spring Assembly Technical Parameters

Top cover plate diameter 262mm
Air inlet M22X1.5
Bolt/Stud M12X1.75
Center distance between two bolts 158mm
Center distance between air hole and bolt 73mm
Base width 241mm
Base height 141mm
The rubber bellows natural outer diamter 300mm
Max.height 540mm
Min.height 185mm


Please Note
- These air suspension airbags are aftermarket products. They will replace the original air spring airbags.
- Please check the pictures and drawings carefully before purchasing to ensure you are getting the correct air spring.
- Instructions are not included. Professional installation is recommended.
- Please feel free to contact us if there is anything we can do to help.

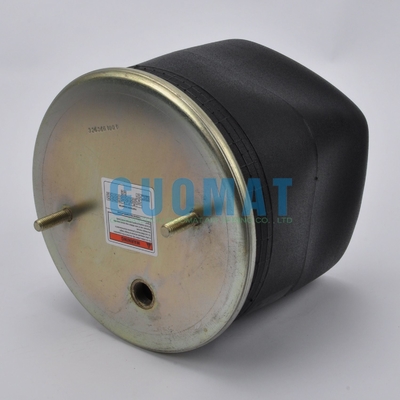

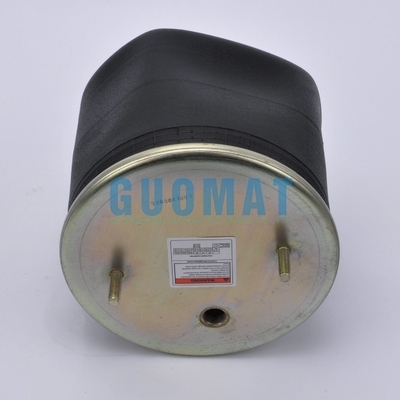

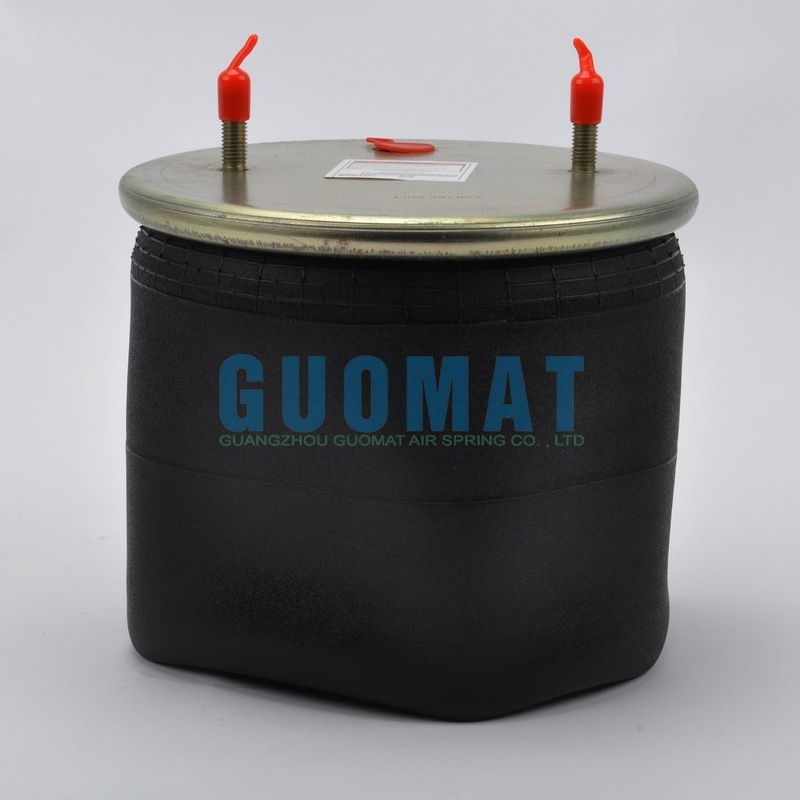

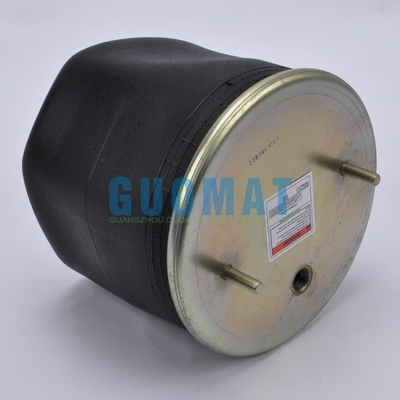

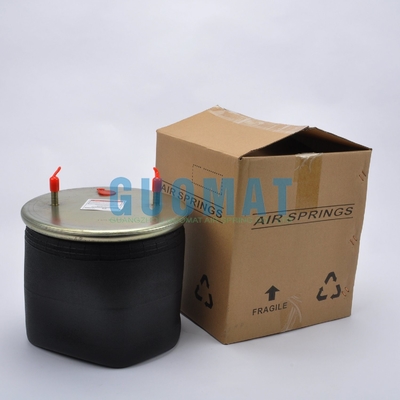

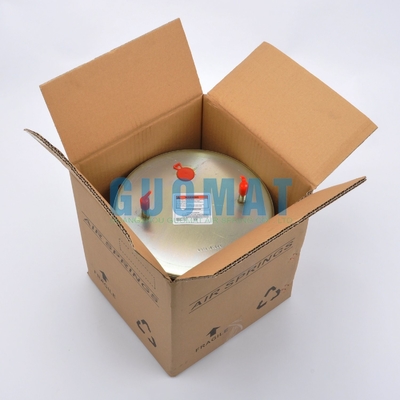

Pictures of Details
W01-M58-0919 Fire-Stone Truck Suspension Air Spring Without PistonW01-M58-0919 Fire-Stone Truck Suspension Air Spring Without Piston
