9 10-14 P 465 Contitech 1R12-620 Goodyear Pneumatic Bellows Actuators Ford F3HS5580AA

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9335

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

OEM:	W01-358-9335	Car Make:	Ford Truck
Brand:	Guomat	Function:	Shock Absorber
Quality:	100% Tested	Keywords:	Air Suspension Shock Absorber
Specification:	OEM Standard	Part:	Truck Air Suspension
Highlight:	F3HS5580AA Goodyear Pneumatic Bellows , F3HS5580AA Goodyear Pneumatic Bellows

9 10-14 P 465 Contitech 1R12-620 Goodyear Pneumatic Bellows Actuators Ford F3HS5580AA

Product Description

Firestone W01-358-9335 / WO1-358-9335
Firestone W01 358 9335 / WO1 358 9335
Firestone W013589335 / WO13589335

Firestone 1T15M-4 / 1T15M 4
Contitech 9 10-14 P 465
Goodyear 1R12-620 / 1R 12-620
Goodyear 566-24-3-076 / 566 24 3 076 / 566243076
Goodyear 566-24-3-104 / 566 24 3 104 / 566243104
Hendrickson 569172 / 569171
Triangle 8465 / 6362
Ford F3HS5580AA
Note: Bracket 6042

1T9335 Truck Air Spring Technical Data

Top cover diameter 231mm, base piston diameter 242mm, 1/4NPT air hole, 1/2-13UNC screw. Rubber bellow natural 310mm, the natural height 250mm, base piston height 7mm.

Extended Height:15.80 inches
Compressed Height: 6.00 inches
Top Plate Number:3313
Top Plate Width:9.00 inches
Piston Number:9573
Piston Width:9.50 inches

Common Causes and Trouble Shooting Methods of Trailer Air Suspension

1.Insufficient Air Spring Pressure

Reasons	Insufficient air supply pressure
	Abnormal pressure protection valve
	Height valve not working
	Air leakage or pipeline damage
	Air spring puncture or leakage
Trouble Shooting Method	Make the vehicle pressure reach 0.6MPa
	Check the pressure protection valve
	Replace if necessary
	Check the height control valve
	Find the air leakage and repair it
	Replace the air spring with a new one and check whether the surrounding clearance meets the requirements
	Check the shock absorber at the same time

2.Broken Air Spring

Reasons	Tires or brake parts rubbing against air springs
	Brake chamber and air spring friction
	Suspension height is too high
	Wrong shock absorber model
Trouble Shooting Method	Check the gap around the air spring, if it is too small it must be reinstalled
	Change brake chamber position or turn clamp to increase clearance
	Adjust the height valve to the correct height
	Replace shock absorber

Other Firestone models of the same Rubber Bellows 1T15M-4

Firestone W01-358-9069 / W01 358 9069 / W013589069
Firestone W01-358-9482 / W01 358 9482 / W013589482
Firestone W01-358-8813 / W01 358 8813 / W013588813
Firestone W01-358-9978 / W01 358 9978 / W013589978
Firestone W01-358-8810 / W01 358 8810 / W013588810
Firestone W01-358-9484 / W01 358 9484 / W013589484

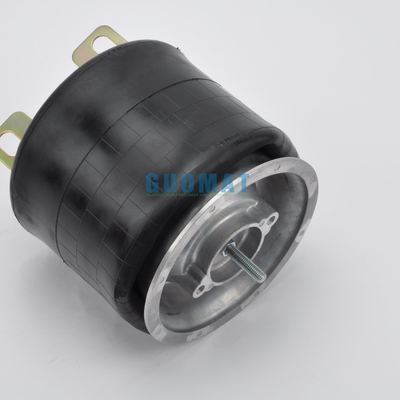

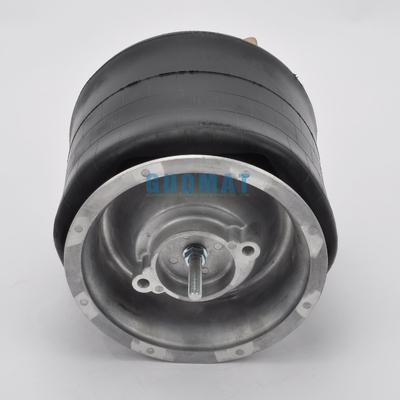

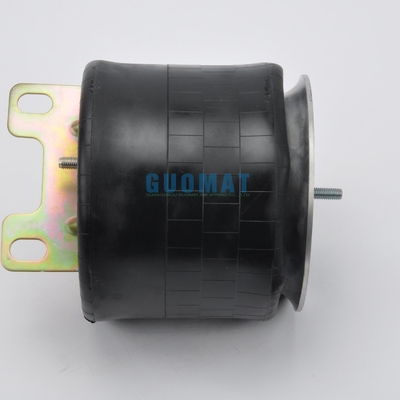

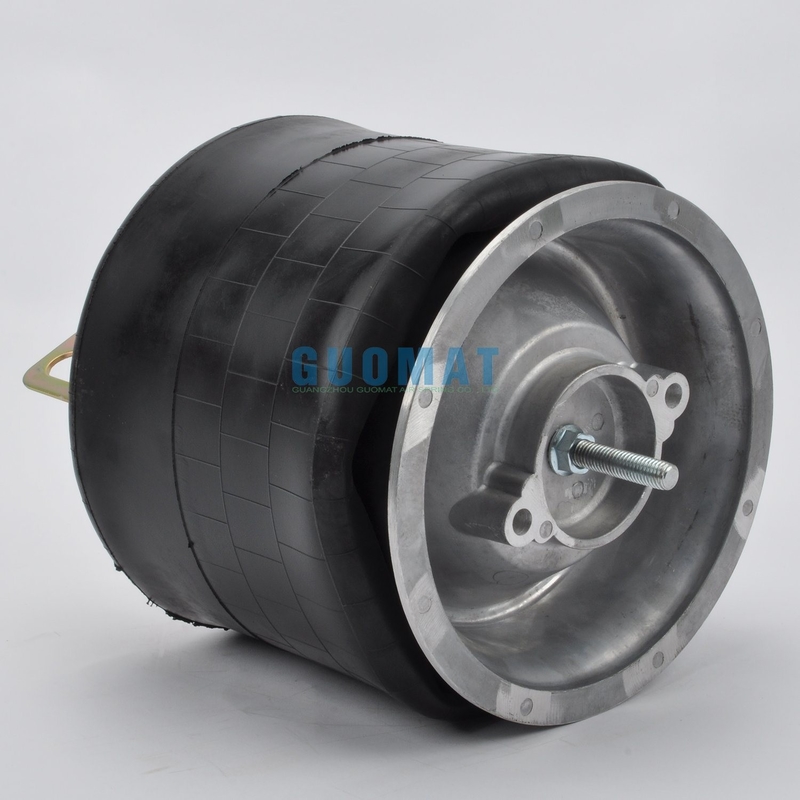

GUOMAT 1T9335 Truck Air Bags Pictures of Details
910-14p465 Contitech 1r12-620 Goodyear Pneumatic Bellows Actuators for Truck
