| Place of Origin: | GuangDong, China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1T8185 |
| Minimum Order Quantity: | 6pcs |
|---|---|
| Price: | $69.9-99.9/pc |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Type: | Air Spring/Air Bags/Air Ballons | Material: | Rubber+Steel |
|---|---|---|---|
| Warranty: | 1 Year | Application: | Truck/Trailer |
| Function: | Reduce Vibration, Lift | Operation: | Gas-filled |
| Suspension System: | Air Suspension Spring | Firestone: | W01-M58-8185 |
| High Light: | Vibracoustic Suspension Kit Truck Air Springs,1R11-749 Goodyear Truck Air Springs |
||

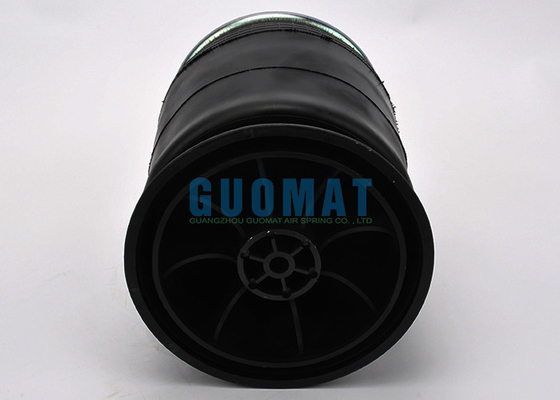

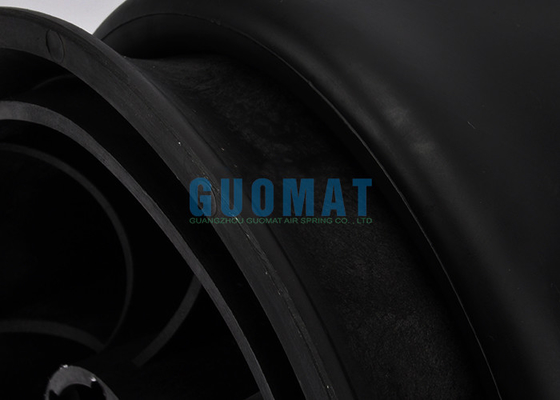

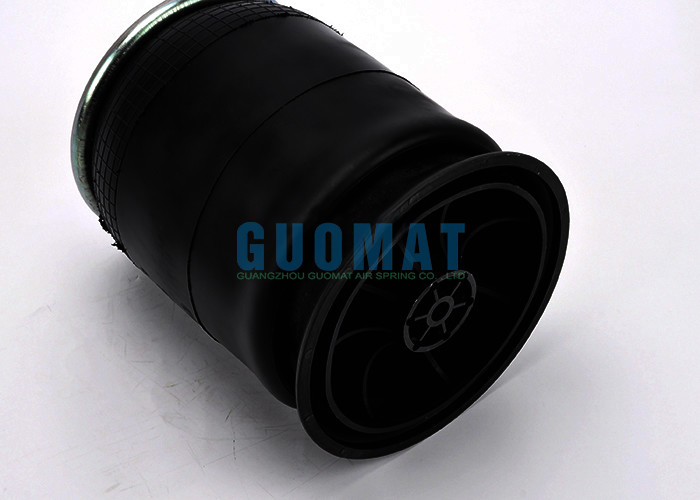

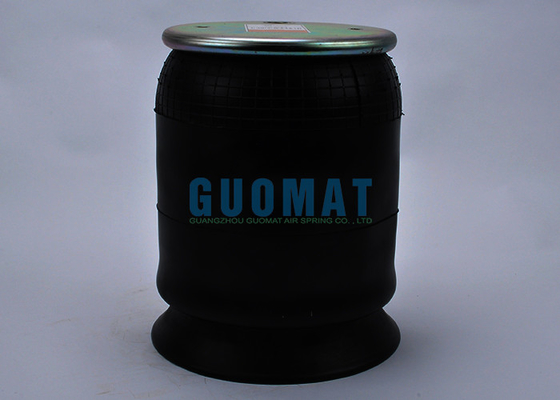

1R11-749 Goodyear Truck Air Springs V1DK20B-1 Vibracoustic Air Suspension Kit
Product Description
|
Item |
Truck Air Springs |
GUOMAT NO. |
1T8185 |
|
Warranty |
1 Year |
Material |
Rubber+Steel |
|
MOQ |
1 pc |
Package |
Carton |
|
OEM |
Firestone W01-M58-8185 |
Replaces |
Dunlop FR :D12B22 |
GUOMAT References the Following Original Equipment Manufacturers
Firestone: W01-M58-8185 / W01 M58 8185 / W01M588185
Firestone Bellows: 1T15MPW-9
Contitech: 4157NP03 / 4157 NP03 / 4157 NP 03
Contitech Order No.: 60452
Goodyear: 1R11-749 / 1R 11-749
Phoenix: 1DK20B-1
Dunlop FR: D12B22
Vibracoustic: V1DK20B-1
Taurus: DA34158 / 0103
Weweler: US06285F
Schmiz Trailer: 750999
Granning: 15657
Airtech: 133782 / 38185KPP
WABCO: 9518127490
Meritor: MLF7037
Why Choose Us
Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standards of production, to create a world-class products.
Our company is in production process of ISO/TS16949:2002 quality system under the control of completion.Through advanced production equipment and testing equipment for the production and testing of control, a senior professional and technical personnel, design and management, our company product life already amounted to more than about 4000000 times, in Europe and the United States and the product test, our product appearance and performance have reached Europe and the United States the requirements of customers.
Firestone Numbers for the Same Rubber Bellows Number-1T15M SERIES
| W01-M58-1261 | W01-358-8938 | W01-968-6286 |
| W01-681-9242 | W01-358-9361 | W01-M58-6237 |
| W01-M58-6252 | W01-M58-7296 | W01-M58-9089 |
| W01-M58-0736 | W01-M58-6289 | W01-M58-7308 |
| W01-M58-7348 | W01-M58-7548 | W01-M58-8859 |
| W01-M58-9131 | W01-M58-6238 | W01-M58-6257 |
| W01-M58-6287 | W01-M58-6318 | W01-M58-6411 |
| W01-M58-8131 | W01-M58-8185 | W01-M58-8172 |
| W01-M58-6297 | W01-M58-6215 | W01-M58-6317 |
| W01-M58-7074 | W01-M58-8186 | W01-M58-8194 |
| W01-M58-8393 | W01-M58-8840 | W01-358-9265 |
The Components of 1T8185 Airide Spring
Blind nut on the top bead plate: 2pieces M10X1.5
Air fitting hole: M22X1.5
The center distance between the blind nut of the top bead plate: 150mm
The distance between the blind nut and the air fitting hole in the top bead plate: 73mm
Top bead plate diameter: 231mm
Piston diameter: 260mm
Piston height: 193mm
The rubber bellows natural outer diameter: 300mm
Natural height: 400mm
GUOMAT 1T8185 Truck Air Springs Drawing
