W01-358-0738 Auto Chassis Firestone Air Spring 1/4NPT For Truck Air Suspension

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T0738

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Type:	Truck Air Spring	Material:	Rubber+Aluminium Alloy
Warranty:	1 Year	Condition:	New
Firestone:	W01-358-0738	Price Condition:	FOB China
Sample:	Available	Operation:	Gas-filled
Highlight:	W01-358-0738 Truck Air Suspension , Auto Chassis Truck Air Suspension , 1/4NPT Truck Air Suspension

W01-358-0738 Auto Chassis Firestone Air Spring 1/4NPT For Truck Air Suspension

Product Description

GUOMAT Number: 1T0738
Material: Natural Rubber
Warranty: 12 Months
MOQ: 10 Pieces
Packing:1.Neutral packaging
2. According to customer requirements
Suspension Type: Air Suspension System
Application: Heavy Duty Truck
Car Fitment: ERF Truck/Hendrickson/Trailer
Weight: 12KG
Packing Length: 29cm
Packing Height: 29cm
Packing Width: 42cm

OEM Manfacturer Number

Firestone Manfacturer Number: W01-358-0738

Firestone Manfacturer Number: W01 358 0738

Firestone Manfacturer Number: W013580738

Firestone Manfacturer Number: WO1-358-0738

Firestone Manfacturer Number: WO1 358 0738

Firestone Manfacturer Number: WO13580738

1T0738 GUOMAT Truck Air Spring Technical Data

Top cover diameter: 231mm
Air hole: 1/4NPT
Threaded hole: 2-3/8-16UNC
Center distance between threaded holes: 157.5±0.5mm
Distance between threaded hole and air hole: 73±0.5mm
Maximum height: 330mm
Minimum height: 110mm
Compression height: 220mm
Width of piston: 241mm
Height of piston: 77mm
Threaded hole at bottom: 1/2-13UNC
Center distance between threaded holes at bottom: 104.5mm

Why Choose Us?

1. Flexible cooperation model

We accept sample orders (to verify quality) and small orders (trial sales/replenishment), significantly reducing the cooperation risk of new customers.

2.Comprehensive competitiveness of the supply chain

Full category coverage: One-stop procurement saves customers' time costs and avoids the complexity of managing multiple suppliers.

High cost-effective materials: Use high-quality raw materials but maintain preferential pricing to provide customers with higher profit margins.

3. Value-added service system

Pre-sales technical support: Provide product selection suggestions, application solution design, etc.

After-sales response mechanism: If our products have quality problems, we will return or exchange them for you. We will reply to your message quickly, and the response time is less than 24 hours.

Product Pictures

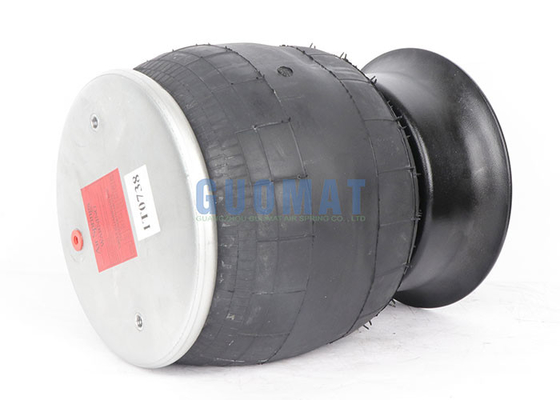

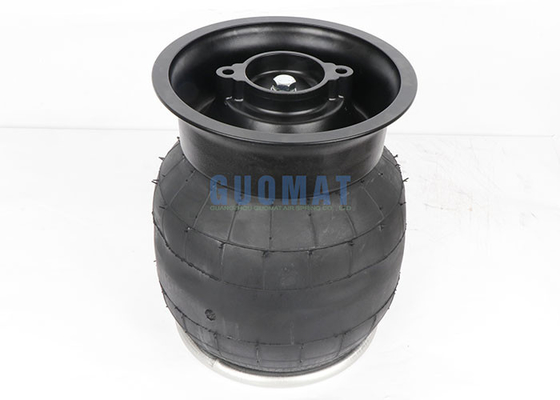

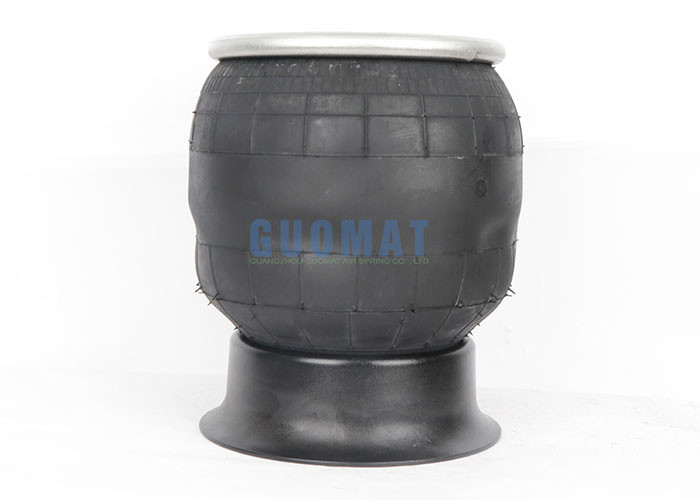

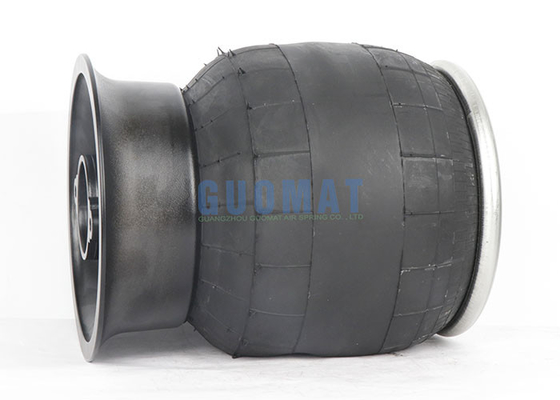

W01-358-0738 Auto Chassis Firestone Air Spring 1/4NPT For Truck Air Suspension 0
