Cab Mount Air Spring SZ51-7 Contitech Rubber Cabin Air Suspension Shock Absorber

Cab Mount Air Spring SZ51-7 Contitech Rubber Cabin Air Suspension Shock Absorber

Product Description

Brand: GUOMAT

Part no.: G51-7

Article status: Normal

Application: For truck driver's seat

Spring weight: 0.36KG

Cross Reference

Contitech number: SZ51-7 / sz51-7

Contitech number: SZ 51-7 / sz 51-7

Air Spring S51-7 Technical Data

The top cover plate diameter: 80.5mm
Gas hole: G1/8
Stud/Threaded hole: M8
Bottom piston diameter: 68mm
Center distance between threaded hole and air hole: 26mm
The rubber bellow max outer diameter: 129mm
Spring height: 96mm
The piston height: 38.3mm

Contitech Cab Air Shock Absorber List

Cab Mount Air Spring

Air springs for the driver's seat ensure a more ergonomic and comfortable working environment and help avoid driver fatigue or damage to health. Cab air suspension is essential for ride comfort. These air springs are designed as telescopic convolute air springs and form a two-point or four-point suspension between the cab and chassis frame.

Before You Buy
Before you order, please make sure the required spare part is suitable for your application.
If you are unsure, you can contact a professional repair shop first; or you can send the number you need to replace to our sales team and we will compare it with our product number for you. The manufacturer number and comparison number are for reference only.

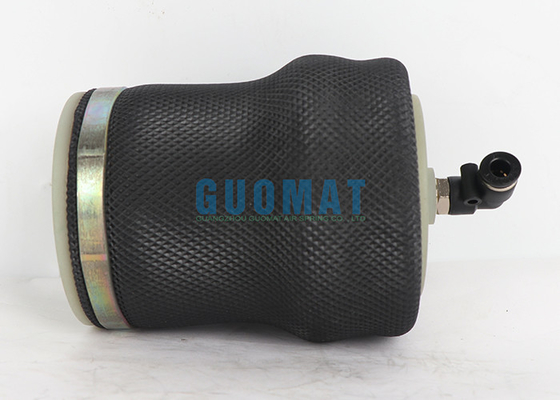

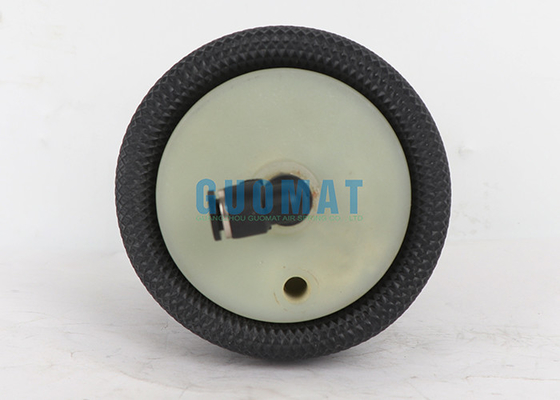

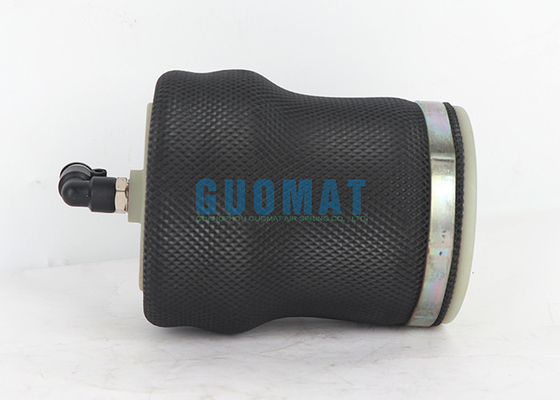

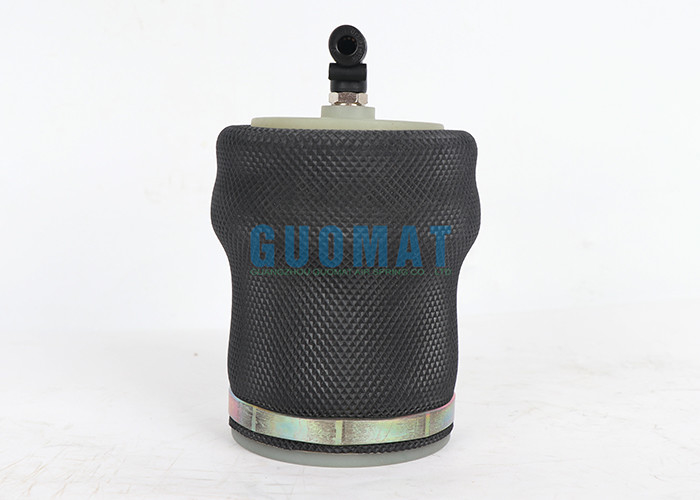

Product Pictures
