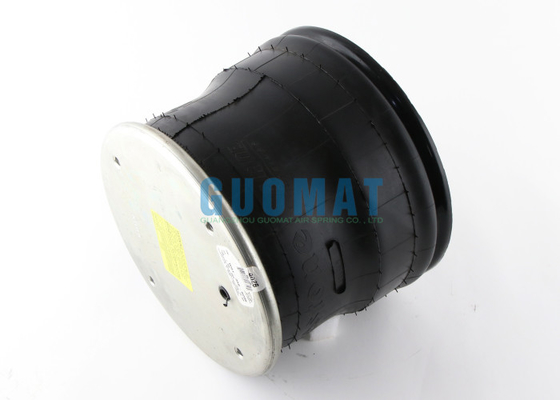

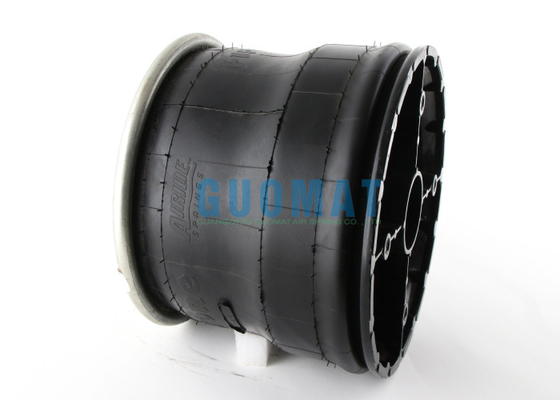

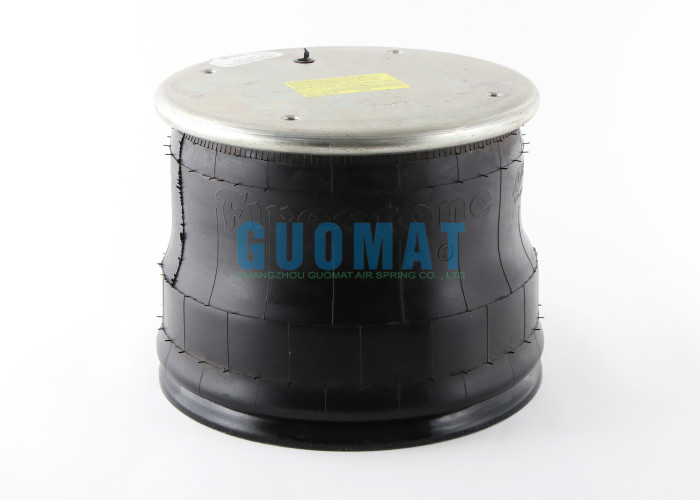

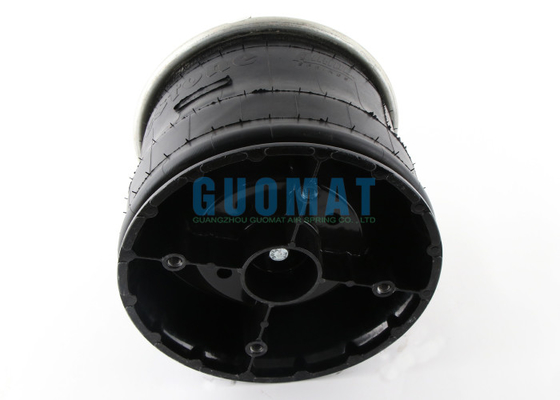

Firestone Truck Air Spring W01-358-9206 Air Suspension Complete Part 1T19L-5

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9206

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-199.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Firestone:	W01-358-9206	Type:	Gas-Filled
Transport Package:	Cartons	After-sales Service:	1 Year
Warranty:	12 Months	Part:	Truck Air Spring
Goodyear:	1R14-033/1R14-041	Extended Height:	17 Inches
Highlight:	W01-358-9206 Truck Air Spring , Firestone Truck Air Spring , 1T19L-5 Truck Air Spring

Firestone Truck Air Spring W01-358-9206 Air Suspension Complete Part 1T19L-5

Product Description

Original Brand: Firestone

Original Part Number: W01-358-9206

Original Part Number: W01 358 9206

Original Part Number: W013589206

Original Part Number: 1T19L-5

Original Part Number: 1T 19L-5

Original Part Number: W01-358-9206 / 1T19L-5

Cross Goodyear Part Number: 1R14-033 / 1R 14-033 / 1R14033

Cross Goodyear Part Number: 1R14-041 / 1R 14-041 / 1R14041

W01-358-9206 Truck Air Spring Technical Data

Extended Height:17.00 inches
Compressed Height: 5.30 inches
Top Plate Width:11.31 inches
Piston Width:11.81 inches
The Rubber Bellow Diameter: 10.62 inches
Center Distance Between Top Threaded Holes: 6.25 inches
Distance Between Top Threaded Holes and Air Holes: 3.12 inches
Center Distance Between Bottom Threaded Holes: 7.88 inches

Firestone Air Spring For Truck Air Suspenison

Air Spring part Number	Style Number	Weight(lbs.)	Repalces
W01-358-8088	1T19L-5	21.9	Ridewell 1003588088C
W01-358-8500	1T19L-5	21.0	Rowe RV ASC 1000 Rowe RV ASC 1002 Rowe RV ASC 1003 Spartan
W01-358-9200	1T19L-5	21.7	Hendrickson Trailer S3839 Ridewell 1003589200C Mexican de autobus front-rear TAG
W01-358-9204	1T19L-5	21.4	Ravens Trailer
W01-358-9215	1T19L-5	21.7	Hendrickson Trailer S3648
W01-358-9216	1T19L-5	22.5	City Welding
W01-358-9218	1T19L-5	21.4	Ridewell 1003589218C Holland(Neway) 90557209 Suspension Lnc. Watson&Chalin AS-0073 Rowe RV ASC 1000/ASC1001/ASC1002/ASC1003 Spatan
W01-358-9277	1T19L-5	21.8	Ridewell 1003589277C Reyco 24556-01
