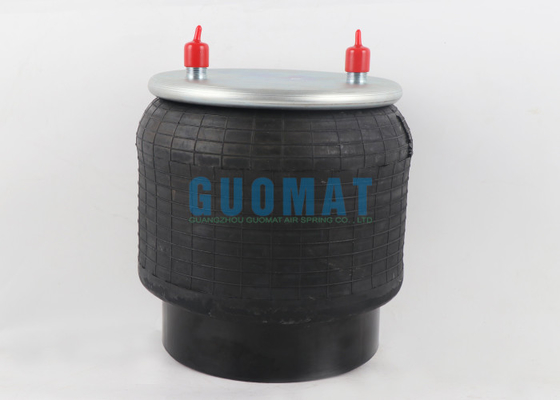

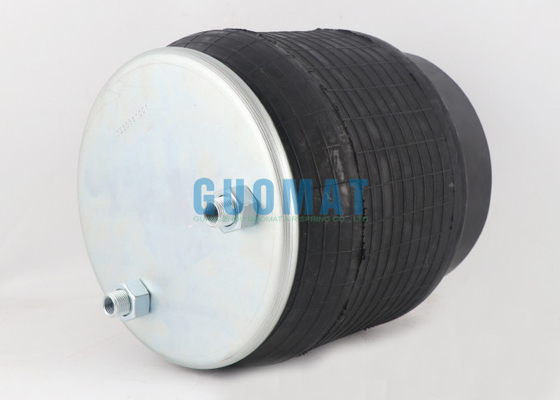

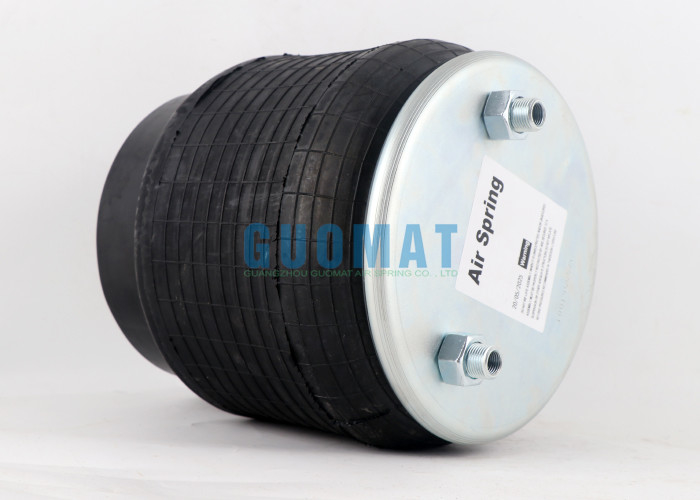

9 10PS-14 5 P 139 H Contitech Truck Suspension Air Bag C-34733 Hendrickson Rubber Air Bellows

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1T5558

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Name:	Replacement Air Spring	Fuction:	Reduce Shock
Package:	Strong Cartons	HS Code:	8708809000
Warranty:	12 Months	Piston Material:	Plastic
Weight:	7KG	Contitech:	9 10PS-14 5 P 139 H
Highlight:	Hendrickson Truck Suspension Air Bag , Truck Suspension Air Bag , C-34733 Hendrickson Rubber Air Bellows

9 10PS-14 5 P 139 H Contitech Truck Suspension Air Bag C-34733 Hendrickson Rubber Air Bellows

Product Description

GUOMAT Truck Air Spring
Plastic Piston

Warranty: 1 Year

GUOMAT NO.: 1T5558

MOQ: 1 pc

Truck Model: Heavy Duty Truck

Color: Black

Place of Origin: Guangzhou,China

Certification: ISO/TS16949:2009

Contitech: 910PS-145P139H / 9 10PS-14 5 P 139 H

Hendrickson: S-34733 / C-24733(ZMD) / S34733 / C24733

Specifications and Detailed Technical Parameters

Extended Height: 540mm

Compressed Height: 234mm

Design Height: 310mm

Top Plate Width: 231mm

Piston Width: 210mm

Piston Height: 180mm

Screw Thread: 2X3/4-16UNF,2X1/4NPTF

Rubber Bellows Diameter: 294±5mm

Main Advantages of Truck Suspension Airbags

Load adaptation
Adjustable air pressure keeps the vehicle height consistent whether it is empty or loaded, avoiding the "tail collapse" phenomenon of traditional leaf springs.

Improving driving comfort

The cushioning effect of air springs is better than that of metal springs, greatly reducing the vibration transmitted to the cab by road bumps.

Protecting cargo and vehicles

Reduces damage to delicate or fragile cargo caused by bumps, while reducing fatigue loss of the frame and structure.

Adjustability

Some systems support manual or automatic height adjustment (for example, lowering the vehicle body when loading and unloading cargo).

Saving tires

Maintaining uniform wheel ground pressure and reducing abnormal tire wear.

GUOMAT Reference Continental Truck Suspension Air Spring

GUOMAT	Contitech	GUOMAT	Contitech
1T9393	4183 NP 24	1T6023SA	4390N1
1T6024	4390 NP 01	1T6026	4390 NP 02
1T6103	4390 NP 03	1T6027	4713 NP 02
1T5829	4718 NP 01	1T5868	4857 NP 01
1T9868	4757 NP 02	1T8602	4881 NP 02
1T9410	4882N1P05	1T4101	4883N1P07
1T6047	4884N1P06	1T6007	644NP04
1T4560	4560NP03	1T6035	6605NP01
1T6037	6630NP01	1T4562	4562NP03
1T6036	6606NP01	1T8477	6606NP01
1T7752	6607NP01	1T6030	6608NP01
1T4925	6609NP01	1T6008	661NP01
1T8901	724NP02	1T8969	725NP02
