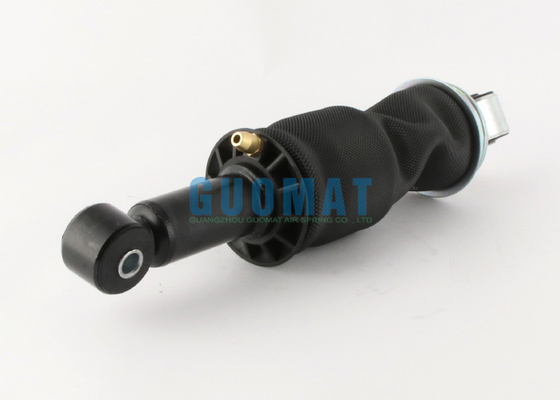

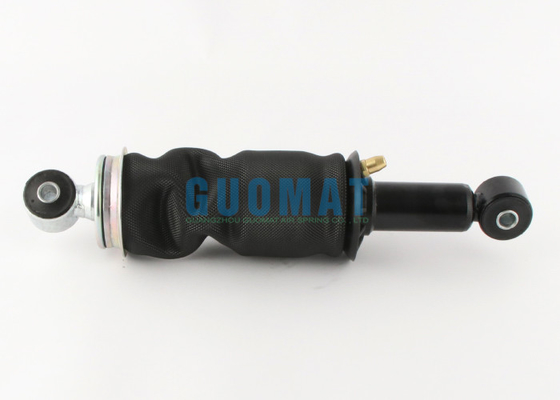

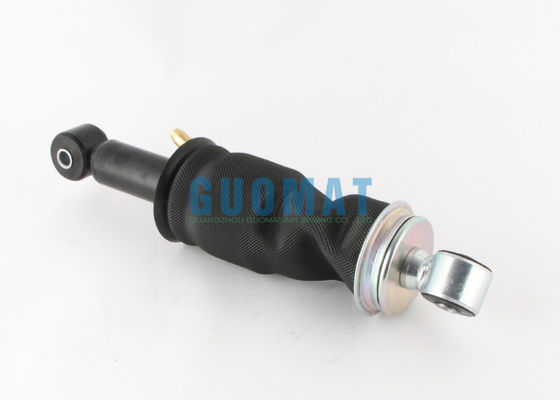

7421821030 Cabin Air Shock Absorber Renault Seat Mount Air Spring Cab Suspension

Basic Principle of Air Spring Shock Absorber
Air spring shock absorber uses compressed air as elastic medium, absorbs road impact energy through deformation of rubber airbag, and replaces traditional steel spring or hydraulic shock absorber. Its core advantages are:

1. Height and stiffness adjustability: By adjusting the air pressure in the airbag, the shock absorber support height and hardness can be dynamically adjusted to adapt to different road conditions and loads.

2. Nonlinear vibration isolation characteristics: The filtering effect of low-frequency vibration (such as road bumps) is significantly better than that of ordinary shock absorbers, greatly reducing the vibration transmitted to the cab.

Specific application methods in Renault truck cab
Air spring shock absorber is usually installed in a four-point suspension system connecting the cab and the frame (front 2 rear 2 or front 2 rear 1 layout). The system includes:

Air airbag: core elastic element, bears the weight of the cab and buffers impact.
Height control valve: automatically adjusts the airbag pressure to maintain the level of the cab (for example, the height of the vehicle body changes when loading and unloading goods to keep the cab stable).
Damper: connected in parallel with the airbag, suppresses the reciprocating motion of the spring and prevents aftershock (such as suppressing the body roll vibration when cornering).

Workflow of adaptive working conditions
No load/light load: reduce air pressure → airbag becomes softer → improve shock filtering effect and optimize driving comfort.
Heavy load/rough road: increase air pressure → airbag becomes harder → enhance support force to avoid collision between the cab and chassis while maintaining tire grip.
Dynamic leveling: real-time monitoring of the body posture through the height sensor, automatic air filling/exhaust to keep the cab level (such as when driving on a slope)

Core advantages and Renault Trucks' adaptive design
1. Adjustability improves driving experience
The driver can manually adjust the shock absorber soft and hard mode (such as "comfort/sport" mode) through the control panel in the cab to adapt to long-distance highways or mountainous bad roads.
Automatic leveling function: ensure the constant position of the steering wheel and pedals under different loads to reduce operator fatigue.

2. Extend the life of the cab
Reduce vibration transmission: effectively isolate engine vibration and road impact, and protect the electronic equipment, instruments and welding structure inside the cab.
Fatigue resistance of rubber airbags: special synthetic rubber materials are resistant to aging and have a life of more than 100,000 kilometers (air tightness needs to be checked regularly).

3. Enhanced safety
Suppress cornering roll: Provide stronger lateral support in high-pressure mode to avoid control failure caused by large shaking of the body.
Emergency braking anti-nodding: The damper and airbag work together to reduce the forward tilt of the cab during braking.
