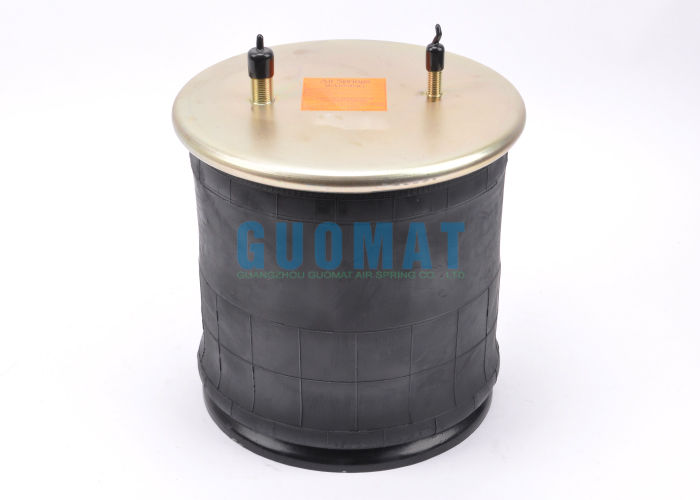

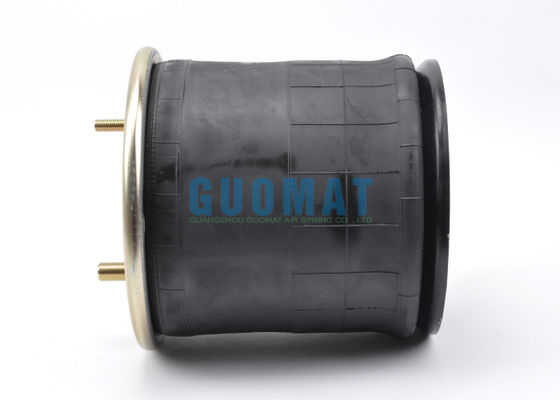

1R14-215 Truck Suspension Parts W013589141/1T19F-7 Firestone Rubber Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9141

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Truck Air Spring	Material:	Rubber+Steel
Warranty:	1 Year Warranty	Quality:	100% Tested
Spring Type:	Rolling Lobe Air Spring	Firestone:	W01-358-9141
Goodyear:	1R14-215	Packing:	Customized Packing

1R14-215 Truck Suspension Parts W013589141/1T19F-7 Firestone Rubber Air Spring

Product Description

Brand: GUOMAT
Model No.: 1T9141
Firestone: W013589141
Firestone: W01 358 9141
Firestone: W01-358-9141
Firestone: WO13589141
Firestone: WO1 358 9141
Firestone: WO1-358-9141
Firestone: 1T19F-7
Goodyear: 1R14-215
Goodyear: 1R 14-215
Goodyear: 1R14 215
Sauer: P50-733
Ridewell: 1003589121C
Watson&Chalin: AS-0013

Technical Data

Top cover diameter	289mm
Bolt	1/2-13UNC
Combination stud	1/4NPT,3/4-16UNF
Center distance between bolt and combination stud	140mm
Natural outer diameter	330mm
Maximum height	560mm
Minimum height	180mm

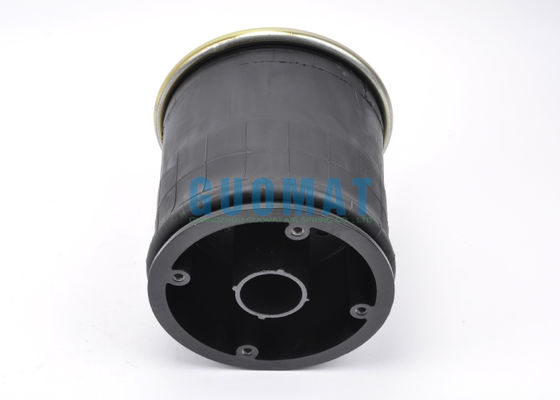

Base diameter	260mm
Base height	140mm
Threaded hole	4x1/2-13UNC
Center distance between threaded holes	200mm

How to Maintain Air Springs
1. Check the outside diameter of the air spring. Check for irregular cracks
2. Check the air pipe. Verify that the air tube does not have any contact with the outer diameter of the air spring.
3. When the air spring is at the maximum outer diameter, check whether the clearance around it is sufficient.
4. Check whether there is foreign matter accumulation on the outer diameter of the piston
5. The correct suspension height should be maintained.
6. The height valve (height control valve) plays an important role in keeping the entire air spring system working as required. Clean, inspect or replace as necessary.
7. Check whether the shock absorber is installed correctly, and check whether there is oil leakage and whether the end connection parts are damaged.
8. Check all mounting hardware (nuts, screws) for tightness

Goodyear 1R 14'' Diameter Truck Air Spring

Goodyear No.	Rubber No.	Piston No.	Piston Type	Top Plate Qty	Botto, Piston Qty	Top Plate Dia.	Bottom Plate Dia.	Collapsed Height
1R14-018	566-28-3-021	566-20-7-096	S	5	4	11.3	10.2	7.7
1R14-019	566-28-3-020	566-20-3-020	S	5	4	11.3	10.2	8.9
1R14-024	566-28-3-021	-	-	5	4	11.3	-	7.7
1R14-025	566-28-3-020	-	-	5	4	11.3	10.2	8.9
1R14-026	566-28-3-021	566-20-7-096	S	5	4	11.3	10.2	7.3
1R14-027	566-28-3-021	-	-	5	4	11.3	-	7.3
1R14-028	566-28-3-021	566-20-7-096	S	5	4	11.3	10.2	7.7
1R14-029	566-28-3-021	-	-	5	4	11.3	-	7.7
1R14-030	566-28-3-020	566-20-7-097	S	5	4	11.3	10.2	8.9
1R14-031	566-28-3-020	-	-	5	4	11.3	-	8.9
1R14-037	566-28-3-015	566-20-7-076	A	5	4	11.3	11.8	5.7
1R14-038	566-28-3-015	566-20-7-076	A	5	4	11.3	11.8	5.7
1R14-039	566-28-3-015	566-20-7-076	A	2	4	11.3	11.8	5.7
1R14-042	566-28-3-015	566-20-7-076	A	2	4	11.3	11.8	5.7
1R14-045	566-28-3-020	566-20-7-097	S	2	4	11.3	10.2	8.9
1R14-052	566-28-3-015	566-20-7-076	A	2	4	11.3	11.8	5.7
1R14-060	566-28-3-020	-	-	2	4	11.3	-	8.9
1R14-101	566-28-3-021	566-20-7-080	C	5	4	11.3	10.1	8.8
1R14-106	566-28-3-021	566-20-7-188	C	3	4	11.5	9.5	5.5
