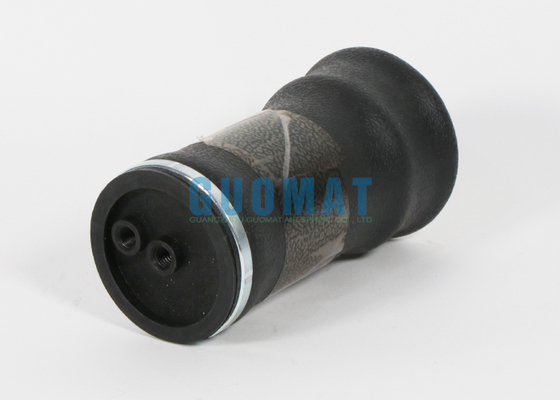

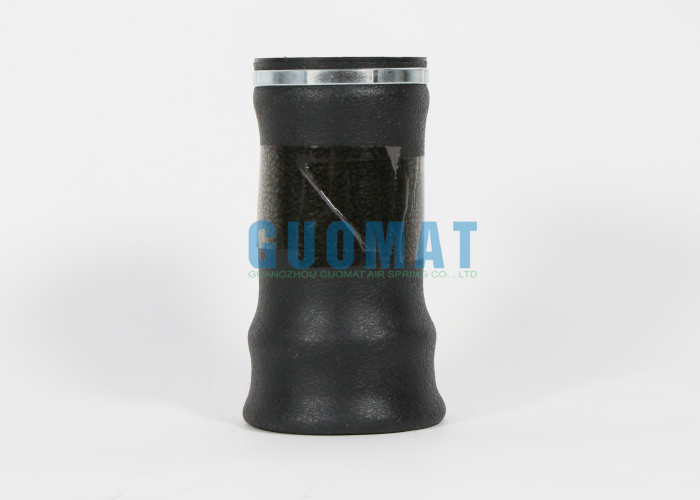

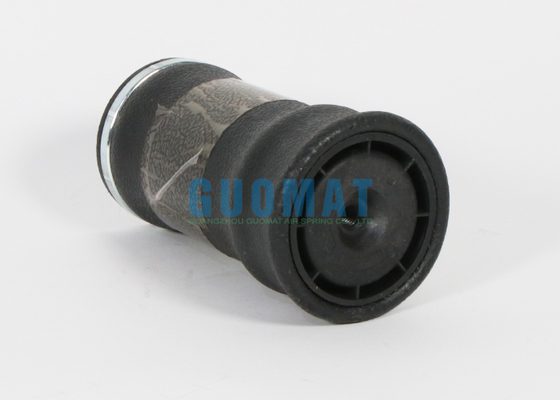

W023587108 Firestone Air Bellows Actuator 2.4in-9.75in Stroke Drive Axle Air Springs

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	G7108

Payment & Shipping Terms:

Minimum Order Quantity:	6 Pcs
Price:	$49.9/pc-$89.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C, Paypal, Others Negotiation
Supply Ability:	10000pcs/week

Contact Now

Detailed Product Description

Material:	Natural Rubber	Warranty:	1 Year
Type:	Air Suspension Shock	FIRESTONE:	W02-358-7108
Product Name:	Air Suspension/Air Shock Absorber Spring	Color:	Black
Dimension:	OEM/Original Size	Car Fitment:	International Heavy Duty, Freightliner Heavy Duty
Highlight:	Firestone air bellow actuator , drive axle air springs , cab air shock absorber

W023587108 Firestone Air Bellows Actuator 2.4in-9.75in Stroke Drive Axle Air Springs

Product Specifications

Attribute	Value
Material	Natural Rubber
Warranty	1 Year
Type	Air Suspension Shock
FIRESTONE	W02-358-7108
Product Name	Air Suspension/Air Shock Absorber Spring
Color	Black
Dimension	OEM/Original Size
Car Fitment	International Heavy Duty, Freightliner Heavy Duty

Product Description

Air springs (also known as airbag shock absorbers) use the elasticity of compressed air to replace traditional metal springs. They are installed between the cab and the frame to cushion road bumps, reduce vibration transmission, and improve driver comfort.

Product Details

GUOMAT Cab Air Shock: G7108
Material: Plastic Parts
Warranty: 12 Months
Type: Sleeve Type
Package: Strong Carton
Application: International Heavy Duty, Freightliner Heavy Duty
Delivery Time: 1-7 Working Days
Payment: PayPal, L/C, Western Union, T/T

OEM Numbers

FIRESTONE Part Number: W023587108
FIRESTONE Part Number: W02 358 7108
FIRESTONE Part Number: W02-358-7108
OE Number: LTD 1102-0048 W02-358-7075 2500012C1 2507756C1

Technical Specifications

The Diameter: 2.9 UNINF.
Max.Height: 9.75 in
Min.Height: 2.4 in
Top Cover: 2.84 in DIA.
Piston Height: 1.48 in
The Threaded Hole (Bottom): 3/8-16.50DEEP
The Threaded Hole (Top): 3/8-16.54DEEP

Compatible Firestone Parts

Firestone Part No.	Max.Height (in.)	Min.Height (in.)
W02-358-7109	10.00	2.40
W02-358-7038	10.10	2.50
W02-358-7205	10.10	4.50
W02-358-7082	10.25	2.40
W02-358-7036	14.00	4.00
W02-358-7024	14.75	3.89
W02-358-7043	15.39	4.01
W02-358-7044	15.50	4.04
W02-358-7081	15.50	4.00
W02-358-7152	7.50	2.20
W02-358-7092	10.75	2.40
W02-358-7093	13.80	4.70
W02-358-7200	11.25	4.75
W02-358-7215	8.11	2.40
W02-358-7083	15.50	4.00
W02-358-7110	14.50	4.00
W26-358-9902	11.50	3.70
W21-760-9000	13.80	4.30
W21-760-9001	12.80	4.30
W21-760-9002	12.80	4.30
W21-760-9011	16.30	7.00
W26-358-9911	15.75	5.89
W26-358-9912	15.75	5.12
