W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9415

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-99.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model:	Rubber Air Spring	Warranty:	1 Year
Material:	Rubber And Steel	Application:	Truck Air Suspension
Color:	Black	Goodyear:	1R11-018
Firestone:	W01 358 9415	Other Name:	Truck Air Spring Assembly
Highlight:	Firestone truck air spring 1R11-018 , Goodyear air suspension pneumatique , truck air springs with warranty

W01-358-9415 Firestone Truck Air Spring 1R11-018 Goodyear Air Suspension Pneumatique

Product Specifications

Attribute	Value
Model	Rubber Air Spring
Warranty	1 Year
Material	Rubber and Steel
Application	Truck Air Suspension
Color	Black
Goodyear	1R11-018
Firestone	W01 358 9415
Other Name	Truck Air Spring Assembly

Product Details

GUOMAT No.: 1T9415

Warranty: 1 Year

Material: Rubber+Steel

Packing: Carton packing

Application: Truck / Trailer Air Suspension

Color: Black

Installation: Direct Installation

Cross Reference Numbers

CONTI: 99-14A322

DAYTON: 352-9073, 352-9415

FIRESTONE: 9073, 9415, W013589415

HENDRICKSON: B-7193

INT'L/NAVISTAR: 554761CI

KENWORTH: K-102-A, K-303-5

LOAD GUARD: 1003589073C, 1013580708C

TAURUS: AS103-9073

TRIANLE: 8322

GOODYEAR: 1R11-018

Technical Specifications

Bottom Plate/Piston Type: Steel

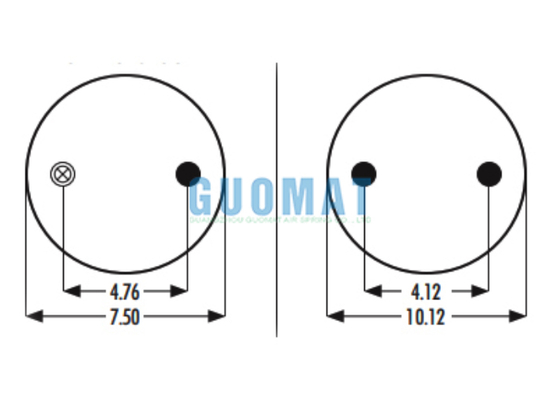

Top Plate Hole/Stud Qty: 2

Top Plate Dia: 7.5

Top Plate C to C Diameter: 4.76

Bottom Plate Hole Stud Qty: 2

Bottom Plate Dia: 10.12

Bottom Plate C to C Diameter: 4.12

Bottom Plate Part #: 566-20-7-079

Bottom Plate Alignment: Parallel

Bumper: No

Bracket: N/A

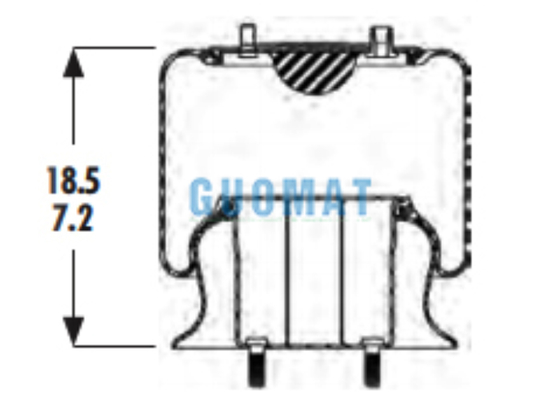

Min Height: 7.2

Max Height: 18.5

Benefits of Air Springs for Trucks

Improved ride smoothness and comfort: Reduces vibration transmission to vehicle frame and cargo, ideal for long-distance transport or delicate cargo.
Adaptive load adjustment: Automatically adjusts height based on load weight to maintain vehicle levelness and protect cargo.
Protects vehicle and road: Evenly distributes load, reducing mechanical stress and extending suspension life while minimizing road wear.
Improved safety and handling: Enhances stability during cornering and braking, maintains tire contact on rough roads.
Energy saving and efficiency: Reduces fuel consumption by optimizing power transmission and allows height adjustment for easier loading.
Compliance with regulations: Meets environmental standards for vibration damping and noise reduction in commercial vehicles.
Special applications: Essential for precision instrument transportation and drop-and-hook transport scenarios.

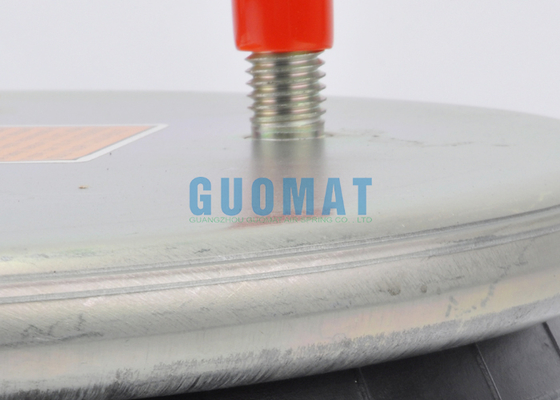

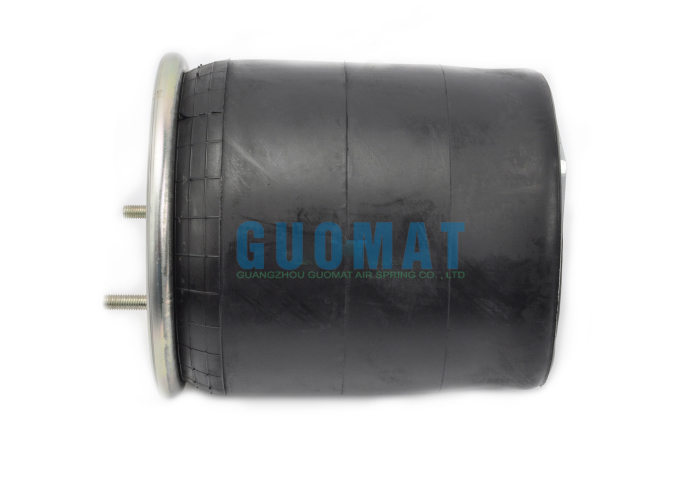

Product Image

Note: Initial investment and maintenance costs are higher than leaf springs, but long-term benefits offset the cost. Regular maintenance of air line seals and desiccant is required.
