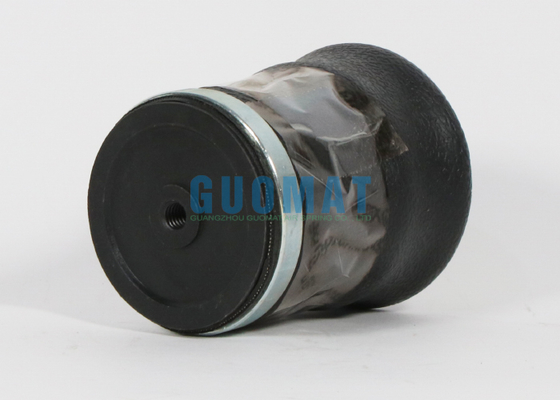

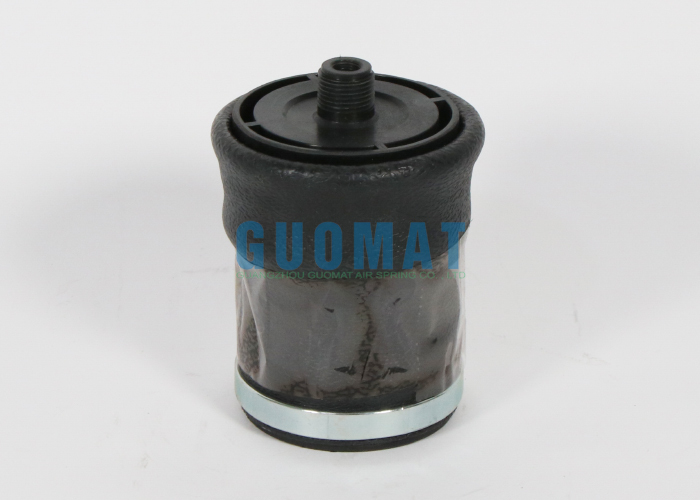

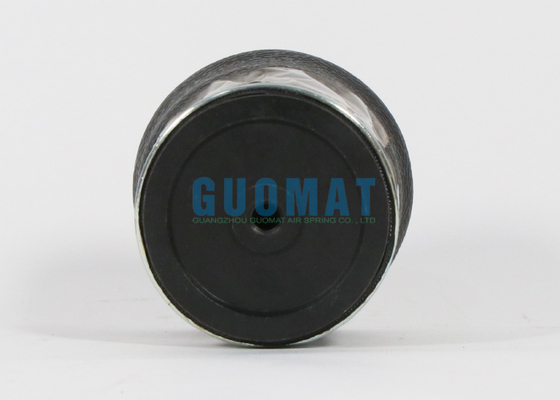

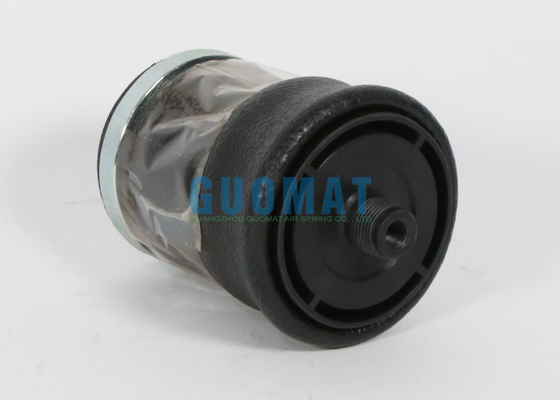

Firestone Bellows Air Actuator W02-358-7086 Truck Lift Axle Air Suspension Springs

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	G7086

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Car Make:	Truck Cab Air Suspension	Quality:	100% Tested
After-sales Service:	1 Year	Warranty:	12 Months
Type:	Sleeve Style Air Spring	Part Number:	Firestone W02-358-7086
Extended Height:	7.25 In	ContiTech:	SC29-O086
Highlight:	Firestone air actuator for truck lift axle , lift axle air suspension springs , truck air shock absorber with warranty

Firestone Bellows Air Actuator W02-358-7086 Truck Lift Axle Air Suspension Springs

Product Specifications

Car Make	Truck Cab Air Suspension
Quality	100% Tested
After-sales Service	1 Year
Warranty	12 Months
Type	Sleeve Style Air Spring
Part Number	Firestone W02-358-7086
Extended Height	7.25 in
ContiTech	SC29-O086

Product Details

Item	Truck Cab Air Suspension	Model	G7086
Warranty	12 Months	Material	Rubber+Steel
Package	Carton	Shock Absorber Type	Gas Pressure
Package Unit	1 pcs	Other Name	Cab Buffer Protector

OEM Replacement Numbers

REPLACES Firestone: W02-358-7086 / W023587086 / W02 358 7086
REPLACES Goodyear: 1S4-058 / 1S 4-058 / 1S4 058
REPLACES Goodyear: 1S4-175 / 1S 4-175 / 1S4 175
REPLACES Contitech: 67858
REPLACES Contitech: SC29-O086
REPLACES Contitech: SZ705052
REPLACES Link: 11020025
REPLACES Triangle Air Springs: 5086
REPLACES Firestone: 7086
REPLACES Automann: ABSZ70-7086
REPLACES Triangle Air Springs: AS-5086
REPLACES Euclid: E-FS7086
REPLACES Meritor: FS7086
REPLACES Holland: G2297086600
REPLACES Volvo Truck: LM11020025
REPLACES Freightliner: LML11020025

Technical Data: W02-358-7086 Cab Air Shock Absorber

Extended Height: 7.25 inches

Compressed Height: 2.40 inches

BCR: 5.25 inches

Logo Color: Orange

Cap Number: 7018, NBD-10218

Piston Number: 6913, NBD-16538

Other Models of Cab Air Springs

Part NO.	Max.Height (inch)	Min.Height(inch)	OEM Number
W02-358-7046	7.79	2.40	LINK MANUFACTURING LTD 1102-0022(FORD,FRT,GMC,PETE)
W02-358-7079	8.00	2.40	LINK MANUFACTURING LTD 1102-0026(NAV.)
W02-358-7001	8.46	2.40	LINK MANUFACTURING LTD 1102-0020(NAV.) SEE 1102-0023 1102-0023(FORD,FRT,GMC,KW,NAV,.VOLVO)COMFORT RIDE WISE KENWRTH T81-1001
W02-358-7002	8.00	2.00
W02-358-7150	8.00	2.20	SEARS/DURAFORM S13384 (W02-811-7150)
W02-358-7201	8.25	3.50	FREIGHTLINER / STERLING 18-45068-000 STERLING DAY CAB OLD FORD # P/N F6HT5C06CAB HN-80 DAY CAB (1996 & LATER)
W02-358-7132	9.50	2.20	PETERBILT R81-6003
W02-358-7100	9.50	2.40	3-TS W02-T03-7100
W02-358-7041	11.81	4.01	SEARS / DURAFORM S8645 (W02-811-7041)
W02-358-7059	11.70	3.66	NATIONAL SEATING 324663-01 (W02-N19-7059) 328035-01 (W02-N19-7069) 329666-01 (W02-N19-7084)
W02-358-7058	11.70	3.66	NATIONAL SEATING 324662-01 (W02-N19-7058)
