1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock

1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock

  • 1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock
  • 1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock
1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: G3011
Payment & Shipping Terms:
Minimum Order Quantity: 6pcs
Price: $39.9-49.9/pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C, others Negotiation
Supply Ability: 10000pcs/week
Contact Now
Detailed Product Description
Model Name: Cab Air Suspension Material: Plastic Parts
Warranty: 12 Months Application: Seat Mount Air Spring
Color: Black Part Number: Goodyear 1S3-011
Max.H: 8'' Min.H: 3.6''
Highlight:

Goodyear Super Cushion air spring

,

cab air suspension shock absorber

,

piston cab air shock

1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock
Product Specification
OEM No. Goodyear 1S3-011
Truck Model Universal Truck Trailer
Material Plastic Parts
Part Name Shock Absorber
Working temperature -40°C bis +70°C
Failure testing ≥3 millions

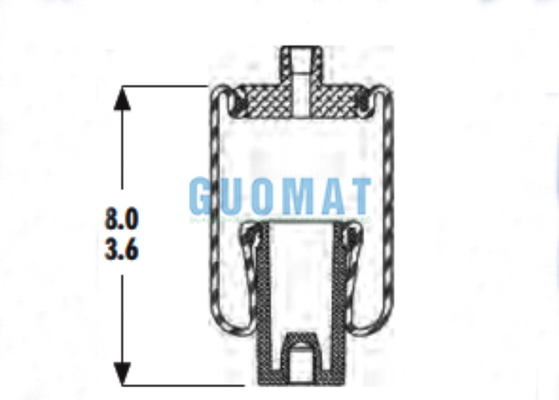

1S3-011 Goodyear Cab Air Spring Technical Data
Top Plate Hole/Stud Qty 1
Top Plate Dia 2.2
Bottom Plate Hole Stud Qyt 1
Bottom Plate Dia 1.54
Bottom Plate C to C Diameter
Bottom Plate Alignment Parallel
Bumper No
Min Height 3.6
Max Height 8
OE Manufacturer Number
  • Goodyear Air Spring Assembly Number: 1S3-011
  • Goodyear Air Spring Assembly Number: 1S 3-011
  • Goodyear Air Spring Assembly Number: 1S3 011
  • Goodyear Air Spring Assembly Number: 1S3011
  • Goodyear Piston Number: ASB-06-7-014
  • Goodyear Piston Number: ASB 06 7 014
  • Goodyear Piston Number: ASB067014
  • Firestone Air Bellows Number: 4001
  • Firestone Air Bellows Number: W02-358-4001
  • Firestone Air Bellows Number: W02 358 4001
  • Firestone Air Bellows Number: W023584001
  • LES AUTOBUS: G5006637
  • LINK CAB&SEAT SPRINGS: 1101-0001
  • NOVABUS: N12687
  • PREVOST: 95-0208
Force Table
Assembly Height (mm) Volume 100 PSIG (cu/ cm) EFF Area@7 BAR(cm sq) kN Force @3 BAR @4 BAR @5 BAR @6 BAR @7 BAR
180438250.741.011.261.531.78
170411260.741.011.281.581.84
160383260.7211.271.581.85
150355260.70.981.251.551.82
140325250.680.951.211.511.78
130297240.660.921.171.451.71
120272240.650.91.131.401.65
110246230.640.881.111.361.59
100225220.630.861.091.331.55

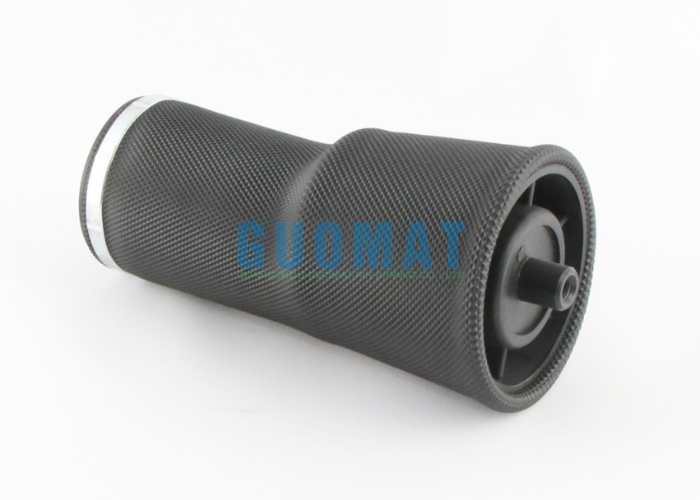

Product Physical Picture
1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock 0 1S3-011 Goodyear Super Cushion Air Spring ASB-06-7-014 Piston Cab Air Suspension Shock 1
