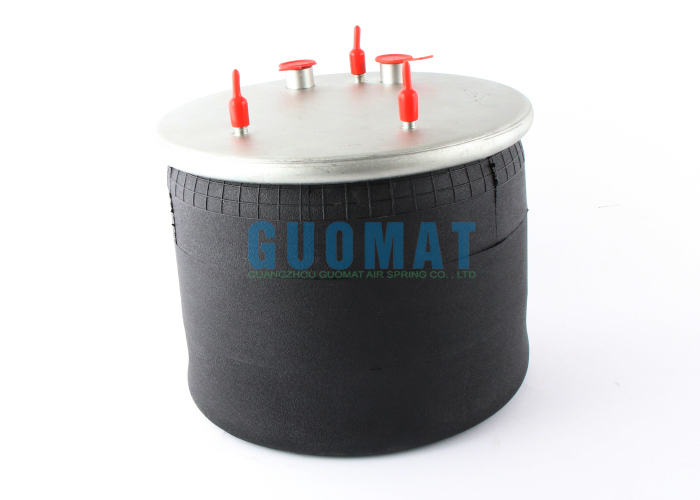

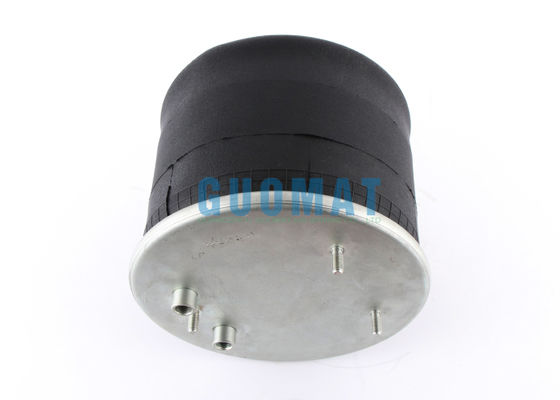

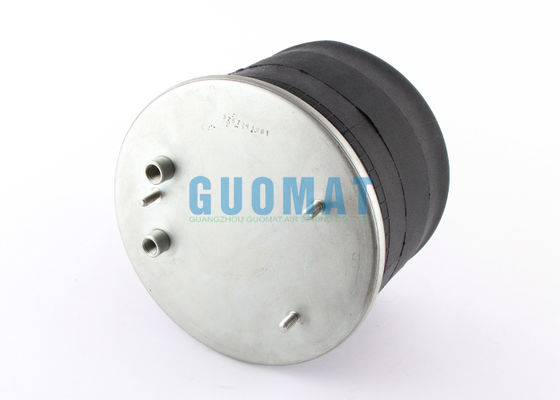

836M2K1 Contitech Truck Air Spring 1R12-711 Goodyear Air Suspension Rubber Air Bag

Product Details:

Place of Origin:	Guangzhou China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1T8721

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Type Of Goods:	Air Spring/Air Bags/Air Ballon	Material:	Natural Rubber
Warranty:	12 Months	Application:	Heavy Vehicles, Cars, Trailers
Function:	Reduce Shock	Size:	Original Equipment Manufacturer/Original Size
Operation:	Gas-filled	OEM:	W01-M58-8721
Highlight:	Contitech truck air spring 1R12-711 , Goodyear air suspension rubber bag , Truck air springs with warranty

836M2K1 Contitech Truck Air Spring 1R12-711 Goodyear Air Suspension Rubber Air Bag

Product Information

Product Name	Air Spring
Description	Truck Spare Parts Air Spring Shock Absorber Spring
MOQ	6 PCS
Warranty	12 Months
Material	Rubber+Steel
Package	Carton
Payment	L/C, T/T, West Union
Port of Shipment	Guangzhou, Shenzhen, Tianjin, Shanghai
Shippment	By Sea, By Air, By DHL Fedex UPS

OE Manufacturer Numbers

Firestone: W01-M58-8721 / W01 M58 8721 / W01M588721
Firestone Style: 1T17AR-4.5
Contitech: 836M2K1 / 836 M2K1 / 60211
Goodyear: 1R12-711 / 1R 12-711
Goodyear Flex No.: 566-24-3-500 / 566 24 3 500 / 566243500
Phoenix: 1DF25-13
Taurus: KR721-03
Dunlop FR: D13B31
Airtech: 131062 / 3836-02K
Granning: 15996
WABCO: 9518127110
Meritor: MLF8059
VDL/DAF: 0388167

Airtech No. 131062 Blacktech RML7947-2C1 Gart No. 302.1.375/2 Neotec ABM50731C01 Primeride New 1R12-711 Taurus KR721-03

Airtech Ref. 3836-02C Dunlop F D13B31 Gart Ref. C302 Primeride 5836A2P01 Primeride New Flex No. 566-24-3-500 Vibracoustic V1DF25-13

Key Specifications

Assembly weight

9.1 kg

Loading capacity at pressure = 5 bar

25.4 kN

Loading capacity at pressure max. = 6.5 bar

33.0 kN

Loading capacity at pressure min. = 0.3 bar

1.5 kN

Deflection (Height min.)

155 mm

Deflection (Height max.)

420 mm

Measurement d max.

315 mm

Space required (dR)

340 mm

Design height (h)

268 mm

Natural frequency

1.25 Hz

Piston volume

5.4 dm³

Working Principle

Air springs operate based on the compressibility of gas. Load Control: When a vehicle is loaded, the distance between the axle and frame decreases, compressing the volume inside the air spring, causing the air pressure to increase. This higher air pressure generates greater support force to balance the increased load.

Shock Absorption: When the wheel encounters a bump in the road, the impact force compresses or stretches the air spring. The air within the chamber rapidly compresses or expands, absorbing and damping the impact energy, providing a smooth ride.

Height Hold: The system's height control valve automatically adjusts. When the load increases and the vehicle lowers, the valve opens, inflating the airbag to raise the vehicle to the preset height; otherwise, the air is released.
