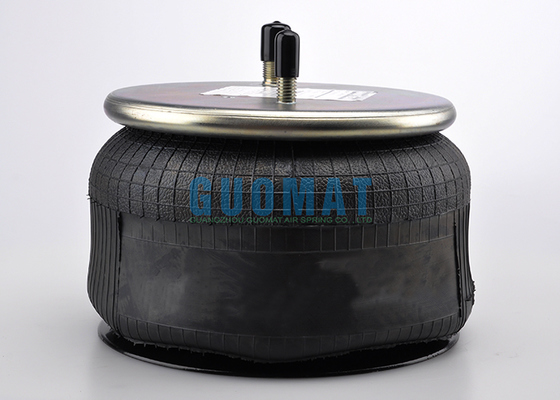

W01-358-8510 Firestone Suspension Air Spring 1R11-199 Goodyear Trailer Air Bags

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T8510

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD79.9-99.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Spring Part:	Truck Air Suspension	Spring Material:	Rubber+Steel
Quality:	100% Tested	Specification:	OEM Standard
After-sales Service:	1 Year	Type:	Gas-Filled
Condition:	New	Position:	Rear/Front
Highlight:	Firestone trailer air springs , Goodyear suspension air bags , truck air spring replacement

W01-358-8510 Firestone Suspension Air Spring 1R11-199 Goodyear Trailer Air Bags

Product Specifications

Type	Air Suspension Air Spring, Lift Air Bellows
Brand	GUOMAT
Model No.	1T8510
Place	Guangzhou, China
Purpose	For Replace/Repair
Position	Rear/Front
Type	Gas-Filled
Function	Reduce Shock
Application	Auto Suspension Parts

OE Manufacturer Compatibility

Compatible with Firestone: W01-358-8510
Compatible with Firestone: W01 358 8510
Compatible with Firestone: W013588510
Compatible with Firestone: 1T15LA-0
Compatible with Goodyear: 1R11-199
Compatible with Goodyear: 1R 11-199
Compatible with Goodyear: 1R11 199
Compatible with Goodyear: 566-22-3-057
Compatible with Goodyear: 566 22 3 057
Compatible with Goodyear: 566223057
Compatible with DT: 2.61032
Compatible with Volvo: 20554759
Compatible with MaxPRO: RLA10036
Compatible with Sigang: SR11R240H

Technical Specifications

Weight: 6.75KG

Material of Piston: Aluminium

Remarks: 1/4-18NPTF Air Inlet

Torque Specifications

1/4-18 NPTF: max. 22 lbf ft

3/4-16 UNF: max. 50 lbf ft

1/2-13 UNC: max. 35 lbf ft

M10: max. 40 Nm

M14: max. 120 Nm

M16x1.5: max. 20 Nm

Truck Air Spring Maintenance Guide (Daily & Periodic)

Maintenance Type	Inspection/Maintenance Item	Specific Operations and Standards	Precautions
I. Daily & Weekly Checks	1. Visual Inspection	Air Spring Body: Check the surface for cracks, cuts, bulges, abnormal wear, or oil stains. Peripheral Clearance: Ensure there is no contact or friction between the air spring and components like the frame or leaf springs. Mounting Points: Check if the upper and lower base mounting bolts are tight.	Fine cracks indicate aging, while cuts and bulges require immediate attention.
I. Daily & Weekly Checks	2. Operational Status Check	Listen for Leaks: Listen for obvious hissing sounds when the vehicle starts and the air system pressurizes. Observe Vehicle Height: Check if the vehicle is level on both sides when unloaded and loaded. Soap Water Leak Test: Spray soapy water on suspected areas (air spring, connections) and observe for bubbles.	One side sitting low typically indicates a fault with that air spring or leveling valve. The soapy water test is the most effective method for locating leaks.
II. Periodic Maintenance & In-Depth Checks	1. Cleaning Maintenance	Clean the air spring surface with water and neutral soap to remove dirt, mud, and salt. Allow it to air dry naturally after cleaning.	Strictly avoid using strong chemical solvents like gasoline or thinners. Avoid direct close-range spraying with high-pressure washers.
II. Periodic Maintenance & In-Depth Checks	2. Related System Checks	Air Dryer: Replace the filter cartridge regularly to ensure a dry and clean air supply. Lines & Connections: Check all air lines for aging, cracking, wear, and ensure connections are secure. Leveling Valve: Check if the linkage operates smoothly without sticking; manually actuate it to listen for inflating/deflating sounds to assess its operation.	Moist, oily air severely damages the entire air system. A stuck leveling valve causes incorrect ride height and air spring damage.
