W01-358-9030 Trailer Suspension Airbag Components 1T15M-0 Heavy Truck Air Spring

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T9030

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Model Name:	Truck Air Spring	Material:	Rubber And Steel
Warranty:	1 Year	Spring Type:	Gas-Filled
Function:	Reduce Shock	Temperature Range:	-40℃-70℃
Firestone Number:	W01-358-9030	DesignHeight:	7.5''
Highlight:	heavy truck air spring suspension , trailer airbag components 1T15M-0 , truck air springs with warranty

W01-358-9030 Trailer Suspension Airbag Components 1T15M-0 Heavy Truck Air Spring

Product Description

Manufacturer: GUOMAT
Part Number: 1T9030
Material: Rubber and Steel
Warranty: 12 Months
Position: Truck Axle
Application: For Truck, For Trailer

Original Equipment Manufacturers Numbers

Firestone Style Number: 1T15M-0
Firestone Part Number: W013589030 / WO13589030
Firestone Part Number: W01-358-9030 / WO1-358-9030
Firestone Part Number: W01 358 9030 / WO1 358 9030
Contitech Order Number: 64432
Contitech Part Number: 9 10-10 P 338
Contitech Part Number: 910-10P338
Taurus Part Number: 6360
Triangle Part Number: AS-8338
Automann Part Number: 1DK23F-P338

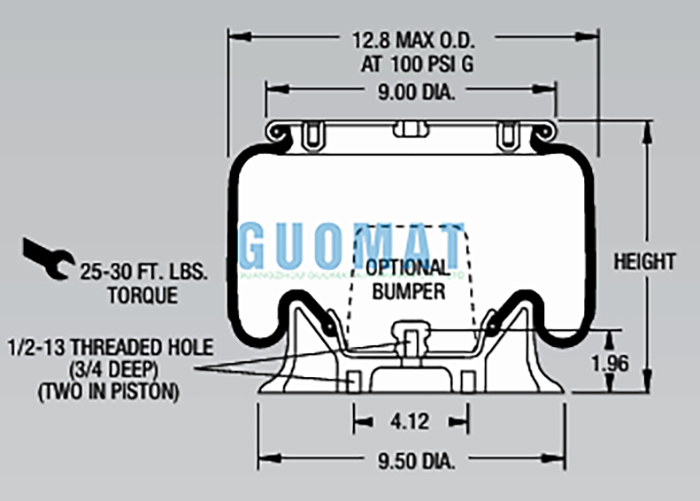

Technical Data

Air Inlet: 1/4NPT
Blind Nuts: 2X3/8-16
Center Distance Between Blind Nuts: 6.20''
Distance between Blind Nut and Air Fitting: 2.88''
Top Cover Plate Diameter: 9.00''
The Rubber Bellows Max.Outer Diameter: 12.8''
Base Diameter: 9.5''
Base Height: 1.96''
Max.Height: 13''
Min.Height: 4.3''
Design Height: 7.5''

Assembly Height(in.)	Volume@ 100PSIG(in3)	Pounds Force	@20PSIG	@40PSIG	@60PSIG	@80PSIG
11.0	737	980	1920	2980	4120	5300
10.0	675	1180	2310	3550	4810	6130
9.0	606	1270	2540	3910	5290	6710
8.0	534	1300	2630	4080	5500	6950
7.0	462	1320	2690	4140	5570	7010
6.0	389	1350	2730	4170	5610	7070
5.0	314	1410	2840	4310	5840	7370

What are Trailer Suspension Air Springs?

Trailer suspension air springs, often called auxiliary air springs or air suspension kits, are not intended to completely replace the original leaf springs or torsion beam suspension. Instead, they are installed as an auxiliary system.

The core component is a rubber airbag installed between the axle and the trailer frame. By inflating or deflating compressed air into the airbag, the height and support force of the airbag can be adjusted, thereby assisting the original suspension system.
