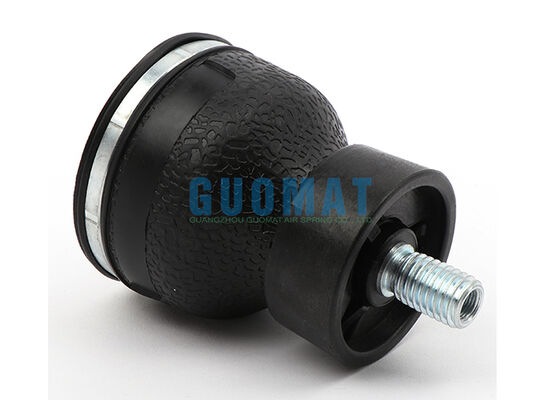

W02-M58-3006 Firestone Cab Air Shock Absorber 1M1A-1 Air Spring With Plastic Stud

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	G3006

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$29.9-49.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	3-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Driver's Cab Airbag	Warranty:	12 Months
Material:	Rubber + Steel	Installation:	Easy Installation
Firestone:	W02-M58-3006	Operation:	Gas-Filled
Air Inlet:	1/8 BSP	Max.Height:	102mm
Highlight:	Firestone cab air shock absorber , 1M1A-1 air spring with plastic stud , cab air shock absorber with warranty

W02-M58-3006 Firestone Cab Air Shock Absorber 1M1A-1 Air Spring With Plastic Stud

Product Overview

Item Name	Cab Mount Air Spring
Brand	GUOMAT
Model Number	G3006
Warranty	1 Year
Material	High Quality Plastic Parts
Type Of Goods	Air Spring/Air Bags/Air Balloons

Replacement Part Numbers

FIRESTONE Style Number: 1M1A-1

FIRESTONE Part Numbers:

W02M583006

W02 M58 3006

W02-M58-3006

w02m583006/w02 m58 3006/w02-m58-3006

Air Spring Specifications

Specification	Value
Max. Height	102mm
Min. Height	38mm
Design Height	75mm
Threaded Hole	M8x1.25, 9.5mm Deep
Max. Outer Diameter	86mm (At 4 Bar)
Top Cover Plate Diameter	73mm
Air Inlet	1/8 BSP
Bottom Diameter	61mm
Stud	M16X2, Plastic

Dynamic Characteristics at 75mm Design Height

Gauge Pressure (BAR)	Load (kN)	Spring Rate (kN/m)	Natural Frequency (Hz)
3	1.16	38.66	2.88
4	1.57	49.85	2.81
5	1.97	60.30	2.76
6	2.39	71.66	2.73
7	2.78	81.97	2.71

Force Table

Assembly Height (mm)	Volume @7bar (cu cm)	EFF Area @7BAR (cm sq)	kN Force
			@3BAR	@4BAR	@5BAR	@6BAR	@7BAR
85	272	38.07	1.14	1.52	1.95	2.30	2.66
75	235	39.67	1.16	1.57	1.97	2.39	2.78
65	194	39.67	1.16	1.57	1.97	2.39	2.78
55	152	40.83	1.31	1.63	2.04	2.46	2.86
45	110	50.25	1.79	2.17	2.63	3.06	3.52

Functions of Cab Air Springs

Cabin air springs are an important component of the suspension system in commercial vehicles (such as trucks and buses). Their primary function is to improve driver comfort, reduce driver fatigue, and enhance handling performance and driving safety.

Enhancing Driver Comfort: Effectively absorb road impacts, vibrations, and bumps from uneven road surfaces, providing a smooth and comfortable driving environment.
Reducing Cab Vibration: Dampen vibrations and isolate chassis vibrations from the cab, reducing noise and vibration impact on the driver.
Improving Handling Performance: Stabilize the cab and improve handling, allowing drivers to perceive road conditions more accurately.
Increased Safety: Reduce disturbances that lead to driving fatigue and impaired reaction speed, helping drivers maintain concentration.
Extended Cab and Seat Lifespan: Reduce stress on cab structure and seats, helping to extend component lifespan and reduce wear.
Adjustability and Adaptability: Some models allow air pressure adjustment according to different loads or driving conditions.
