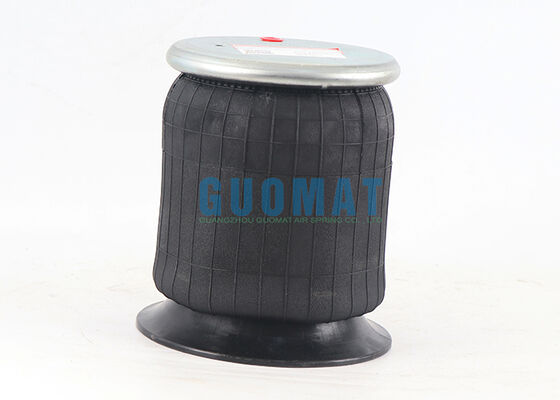

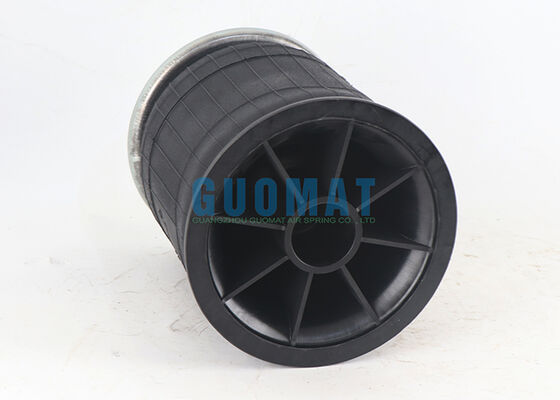

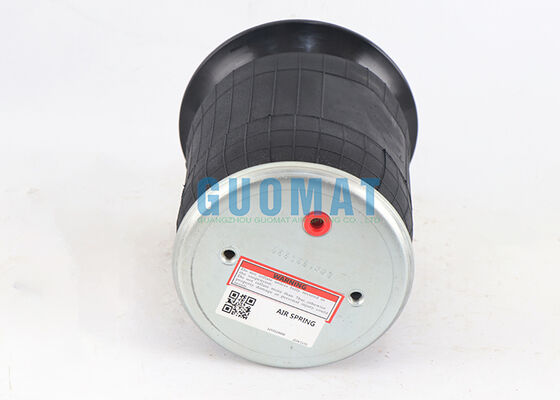

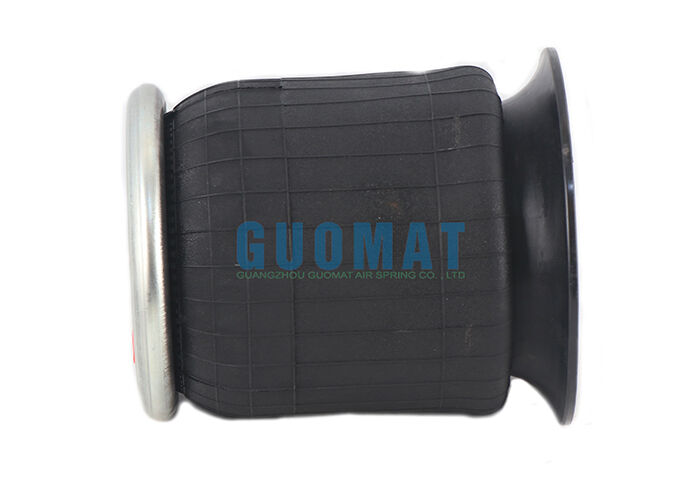

W01-358-5311 Firestone Suspension Air Shock 1T14C-1 Truck Air Spring Bags

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1T5311

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$79.9-89.9/pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Rolling Lobe Type Air Spring	Material:	Rubber And Steel
Warranty:	1 Year Warranty	Application:	Truck Suspension System
Operation:	Gas-filled	Quality:	100% Tested
Firestone:	W01-358-5311/1T14C-1	Note:	Flxible 6-379-1
Highlight:	Firestone truck air springs , Truck suspension air shock , Firestone air spring bags

W01-358-5311 Firestone Suspension Air Shock 1T14C-1 Truck Air Spring Bags

-Product Description

Item : Truck Air Spring

Warranty : 1 Year

Car Model : For Truck

Model Number: 1T5311

Material : Rubber+Steel+Aluminum

Net Weight : 3(kg)

Gross Weight : 4(kg)

Packing Size : 27*27*30(cm)

Payment : L/C,T/T,Western Union,PayPal

Delivery : Ablout 3-8 Working Days After Received You Payment

Shipment : By Air,By Sea,By Express(UPS,FedEx,EMS...)

Cross-Reference Part Number

Firestone Number: W01-358-5311 / W01 358 5311 / W013585311

Firestone Number: WO1-358-5311 / WO1 358 5311 / WO13585311

Firestone Number: Style 1T14C-1

Firestone Number: Style 1T14F-2

Ridewell Number: 1003585311C

Note: Flxible 6-379-1

Iveco: 504035756

Iveco: 504035755

Iveco: 42535665

Technical Data: W01-358-5311 Truck Air Spring

Maximum height: 15 inches

Minimum height: 5 inches

Maximum outer diameter: 9.1 inches

Cover diameter: 6.31 inches

Piston diameter: 7.25 inches

Piston height: 3.16 inches

Center distance between blind nuts: 3.5 inches

Center distance between blind nuts and vent: 1.75 inches

Air inlet: 1/4NPT

Blind Nuts: 3/8-16

Assembly Height (in.)	Volume@ 100PSIG(in3)	Pounds Force
Assembly Height (in.)	Volume@ 100PSIG(in3)	@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
12.0	376	540	1010	1530	2040	2600
11.0	347	570	1160	1770	2380	3010
10.0	314	590	1210	1880	2540	3220
9.0	280	590	1190	1890	2570	3240
8.0	246	580	1200	1890	2570	3240
7.0	211	620	1240	1920	2600	3300
6.0	176	740	1380	2060	2790	3530
